YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Swing Ring Gear
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description
YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 SK200-6 SK200-5 SK210LC Excavator Spare Parts Swing Ring Gear Rotary Gearbox Ring Gear

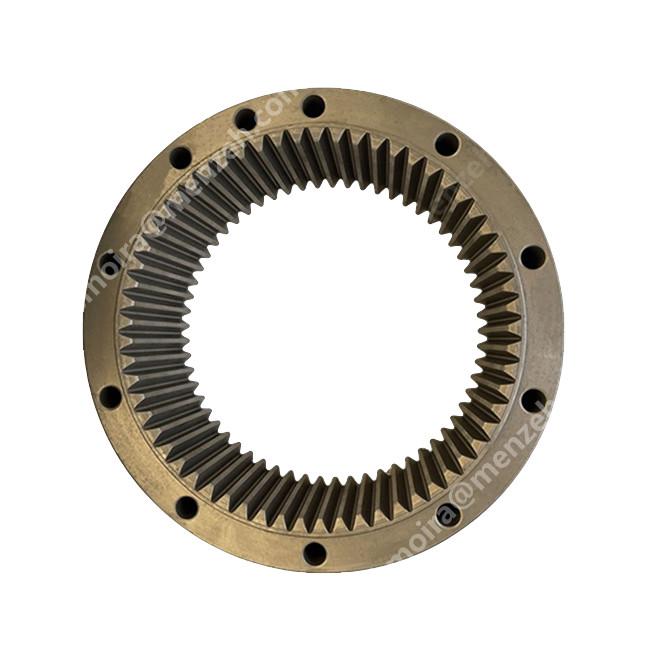

| Part Name | Ring Gear |
| Part No. | YN32W01012P1 2401N469 YN15V00009S019 LQ01V00001S016 YN01V00001S012 ZR16X09000 |
| Used For | SK200-6 SK200-5 SK210LC |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

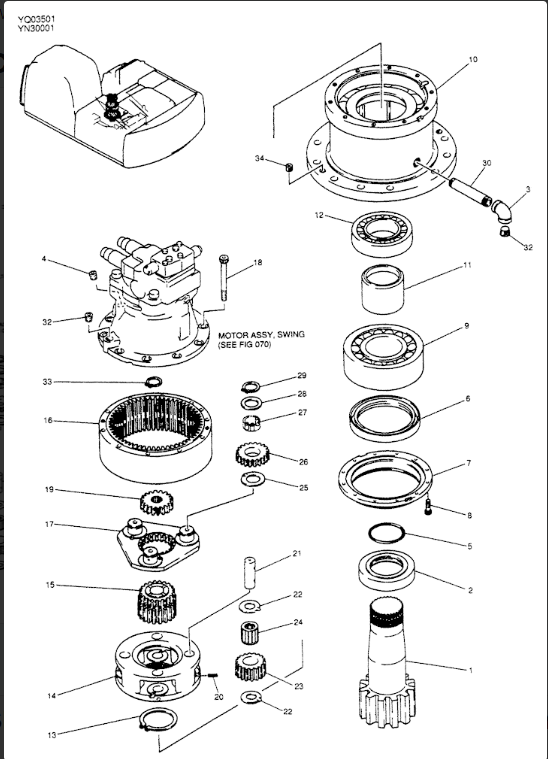

| Pos. | Part No | Qty | Parts name | Comments |
| . . | YN32W00004F1 | [1] | MOTO-REDUCTION GEAR | KOB SWING |
| . . | YN32W00004F1R | [1] | REMAN-MOTO REDUCTION | KOB SK200LC-6 - DYNAMIC ACERA, ASN YQ03501, |
| . . | YN32W00004F1C | [1] | CORE-MOTO-REDUCTION UNIT | KOB Return Number |
| 1 | YN32W01003P1 | [1] | PINION SHAFT | KOB |
| 2 | YN32W01004P1 | [1] | SLEEVE | KOB |
| 4 | ZE82T08000 | [1] | PLUG | KOB 1/2" PT |
| 5 | ZD11G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOB |
| 6 | YN32W01034P1 | [1] | OIL SEAL | KOB |
| 7 | YN32W01005P1 | [1] | RETAINER | KOB |
| 8 | ZS23C08025 | [12] | SCREW,Hex Socket Head, M8 x 25mm | KOB M08x1.25x25mm |
| 9 | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: R25P0047D9 |
| 10 | YN32W01033P1 | [1] | HOUSING | KOB HOUSING |
| 11 | YN32W01015P1 | [1] | SPACER | KOB |
| 12 | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: 25Z804D18 |
| 13 | ZR16X09000 | [1] | RING | KOB Retaining -- ID 84.50 x OD 108 x 3.0mm |
| 14 | YN32W01011P1 | [1] | SPIDER | KOB |
| 15 | YN32W01006P1 | [1] | SUN GEAR | KOB |
| 16 | YN32W01012P1 | [1] | RING GEAR | KOB |
| 17 | YN32W01019F1 | [1] | SPIDER ASSY. | KOB |
| 18 | ZS23C14130 | [10] | CAPSCREW,Hex Socket Head, M14 x 130mm | KOB SCREW M14x2.0x130mm |
| 19 | YN32W01007P1 | [1] | SUN GEAR | KOB |
| 20 | ZP26D08025 | [4] | PIN | KOB Roll -- OD 08 x 25mm Long |
| 21 | YN32W01001P1 | [4] | SHAFT | KOB SHAFT |
| 22 | YN32W01027P1 | [8] | THRUST WASHER | KOB |
| 23 | YN32W01008P1 | [4] | PINION | KOB |
| 24 | YN32W01021P1 | [4] | BEARING | KOB |
| 25 | YN32W01026P1 | [3] | THRUST WASHER | KOB |
| 26 | YN32W01002P1 | [3] | PINION | KOB |
| 27 | YN32W01022P1 | [102] | ROLLER | KOB |
| 28 | YN32W01028P1 | [3] | THRUST WASHER | KOB |
| 29 | 2418R2D25 | [3] | RING | KOB RETAINING Superseded by part number: ZR16X04000 |
| 30 | 2420T6698D2 | [1] | PIPE | KOB |
| 31 | ZG31U12000 | [1] | ELBOW | KOB |
| 32 | ZE82T12000 | [2] | PLUG | KOB 3/4" PT |
| 33 | 2418R2D22 | [1] | RING | KOB RETAINING Superseded by part number: ZR16X03500 |
| 34 | ZS83C20020 | [2] | SCREW | KOB Set -- M20x2.50x20mm |




FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
