4278168 1108305 0725207 4633066 Final Drive Bearing EX270 EX270-5 EX280H-5 EX300 EX300-2 EX300-3 EX300-3C EX300-5

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

4278168 1108305 0725207 4633066 Final Drive Bearing EX270 EX270-5 EX280H-5 EX300 EX300-2 EX300-3 EX300-3C EX300-5 Excavator Travel Device Parts



Part Name Final Drive Bearing
Part Number 4278168 1108305 0725207 4633066
Used For EX270 EX270-5 EX280H-5 EX300 EX300-2 EX300-3 EX300-3C EX300-5
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts

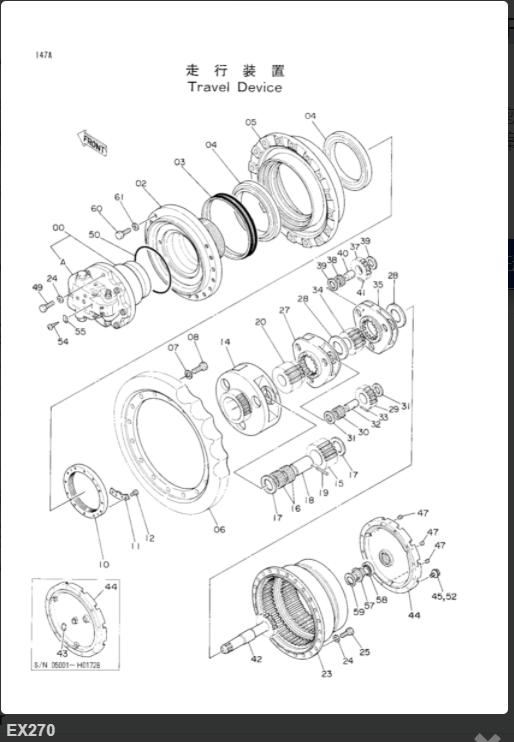

Pos. Part No Qty Parts name Comments
0 9069421 [1] MOTOR;OIL STD:
0 9069421 [1] MOTOR;OIL LC:
0 9080116 [1] MOTOR;OIL STD:
0 9080116 [1] MOTOR;OIL LC:
00-52. 9069551 [2] TRAVEL DEVICE ASS'Y STD
00-52. 9069551 [2] TRAVEL DEVICE ASS'Y LC:
00-52. 9080072 [2] TRAVEL DEVICE ASS'Y Y 9096485 STD:
00-52. 9080072 [2] TRAVEL DEVICE ASS'Y Y 9096485 LC:
00-59. 9096485 [2] TRAVEL DEVICE ASS'Y
00A. 9071904 [1] VALVE;BRAKE STD:
00A. 9071904 [1] VALVE;BRAKE LC:
00A. 9080515 [1] VALVE;BRAKE STD:
00A. 9080515 [1] VALVE;BRAKE LC:
2 1010465 [1] HOUSING
3 4066695 [1] SEAL;GROUP
4 4192975 [2] BRG.;ROL.
5 1010466 [1] DRUM
6 1010467 [1] SPROCKET
7 A590920 [16] WASHER;SPRING
8 J932060 [16] BOLT
10 3036256 [1] NUT
11 4192974 [1] PLATE;LOCK
12 J901225 [2] BOLT
14 1010468 [1] CARRIER
15 3036257 [3] GEAR;PLANETARY
16 4192976 [6] BRG.;NEEDLE
17 4201913 [6] PLATE;THRUST Y 4219595
17 4219595 [6] PLATE;THRUST
18 4192978 [3] PIN
19 4192021 [3] PIN;SPRING
20 3036258 [1] GEAR;SUN
23 1010537 [1] GEAR;RING
24 A590916 [26] WASHER;SPRING
25 J931645 [24] BOLT
27 1010471 [1] CARRIER
28 4192979 [2] SPACER
29 3036259 [3] GEAR;PLANETARY
30 4190117 [3] BRG.;NEEDLE
31 4192982 [6] PLATE;THRUST
32 4144558 [3] PIN
33 4144525 [3] PIN;SPRING
34 3036261 [1] GEAR;SUN
35 1010470 [1] CARRIER STD:
35 1010470 [1] CARRIER LC:
35 2025965 [1] CARRIER STD:
35 2025965 [1] CARRIER LC:
37 3036260 [3] GEAR;PLANETARY STD:
37 3036260 [3] GEAR;PLANETARY LC:
37 3041961 [3] GEAR;PLANETARY STD:
37 3041961 [3] GEAR;PLANETARY LC:
38 4108021 [3] BRG.;NEEDLE
39 4192983 [6] PLATE;THRUST
40 4192977 [3] PIN
41 4192020 [3] PIN;SPRING
42 2023185 [1] SHAFT;PROP. STD:
42 2023185 [1] SHAFT;PROP. LC:
42 2025966 [1] SHAFT;PROP. STD:
42 2025966 [1] SHAFT;PROP. LC:
43 4204756 [1] CAP
44 2024963 [1] COVER STD:
44 2024963 [1] COVER LC:
44 2025967 [1] COVER
44 2025967 [1] COVER P 2028460 STD:
44 2025967 [1] COVER <LC>
44 2028460 [1] COVER P 2032092
44 2028460 [1] COVER P 4278011
44 2028460 [1] COVER P 4278168
44 2028460 [1] COVER P 930451
44 2032092 [1] COVER
45 A590912 [1] WASHER;SPRING
47 4245797 [3] PLUG
47 94-2013 [2] PLUG STD
47 94-2013 [2] PLUG LC:
47 94-2013 [3] PLUG Y 4245797 STD:
47 94-2013 [3] PLUG LC:
49 J931685 [2] BOLT
50 4193063 [1] O-RING
52 J011230 [12] BOLT;SEMS
52 M221228 [12] BOLT I J011230
54 M492564 [2] DRIVER;SCREW
55 3053559 [1] NAME-PLATE
57 4277474 [1] PIN;STOPPER
57 4278011 [1] PIN;STOPPER
58 4278168 [1] BRG.;BALL
59 930451 [1] RING;RETAINING
60 J932080 [34] BOLT
61 A590920 [34] WASHER;SPRING














FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.
