45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre
Carbon Fiber Gravel Hybrid Road Bike Carbon Frame For 700*40C Tyre
GRAVEL BIKE FRAME SPECIFICATION:
| Model/Name | GRAVEL-V2-disc carbon road Frame+Fork+Seat post+Headsets+Lever |
| Size(Height) | 45cm / 48cm / 51cm / 54cm |
| Material | High modulus Carbon fiber(T800MIX) |
| Aplicated wheel size | 700*40C |
| BB | BB86*46 Pressed |
| Head tube | 52*52&Cover |
| Thru axle | F12*100_R12*142mm, Flat-mount post, |
| Color | Black ( Red / DarkGray / CementGray / Silver / Orange / Blue / Yellow ), RedWhite |
| Process | Aero-design, EPS, Inner-Cables, Gloss,UV laser colorful decals |
| Weight | Frame 1.39KG, Fork 0.53KG, Seat post 0.25KG |
| Finished | Matt or Glossy |
Carbon Fiber Road Bike Frame Features
1. Internal cable routing system, easy for cables slip through.
2. Tapered head tube design, together with the tapered and straight fork design, which offers a better stiffness for steering and acceleration.
3. Strong chain stay and seat stay design, which offers super stiffness and strength for racing
4. DI2 system available too
5. Maximized stiffness-to-weight ratio design, have a excellent balance for weight-stiffness-strength.

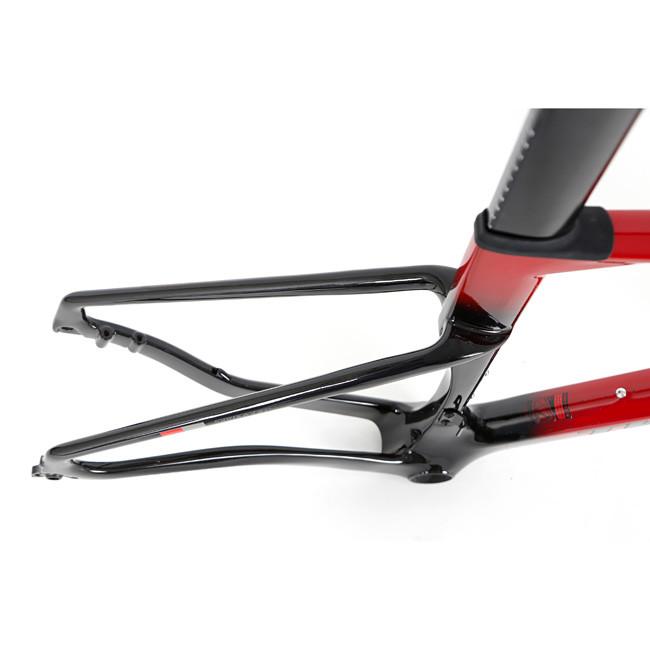

Hybrid road bike frame, shows on detail
Road bike frame with EPS Technology
Size of the Frame
| Size | A | B | C | D | E | F | G | H | I | J | K |
| BB center to top of seat tube | effective top tube horizontal | BB off set | Chainstay length | Seat angle | Head angle | Front center | Head tube length | Fork off set | Reach | Stack | |
| mm | mm | mm | mm | / | / | mm | mm | mm | mm | mm | |
| XS-45 | 450 | 510 | -74 | 425 | 74.3 | 70 | 589 | 100 | 55 | 365 | 516 |
| S-48 | 480 | 525 | -74 | 425 | 74.3 | 71 | 596 | 114 | 55 | 375 | 534 |
| M-51 | 510 | 540 | -74 | 425 | 74.3 | 71.5 | 607 | 130 | 55 | 385 | 550 |
| L-54 | 540 | 555 | -74 | 425 | 74.3 | 72 | 618 | 150 | 55 | 395 | 572 |
| FRAME SIZE WITH RIDER HEIGHT | |||||||||||
| FRAME SIZE(A) | 45cm-XS | 48cm-S | 51cm-M | 54cm-L | |||||||
| Rider Height | 160~170cm | 165~175cm | 175~185cm | 185-195cm | |||||||
Carbon road bike frame with UV laser colorful decals

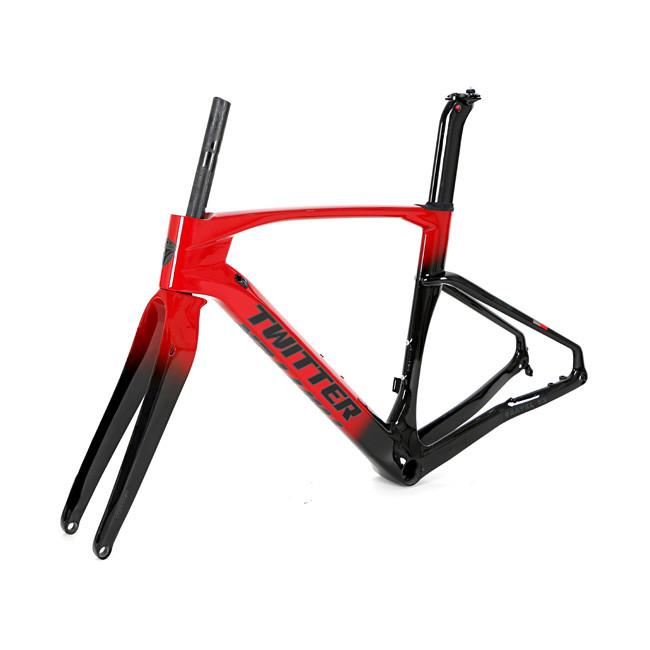

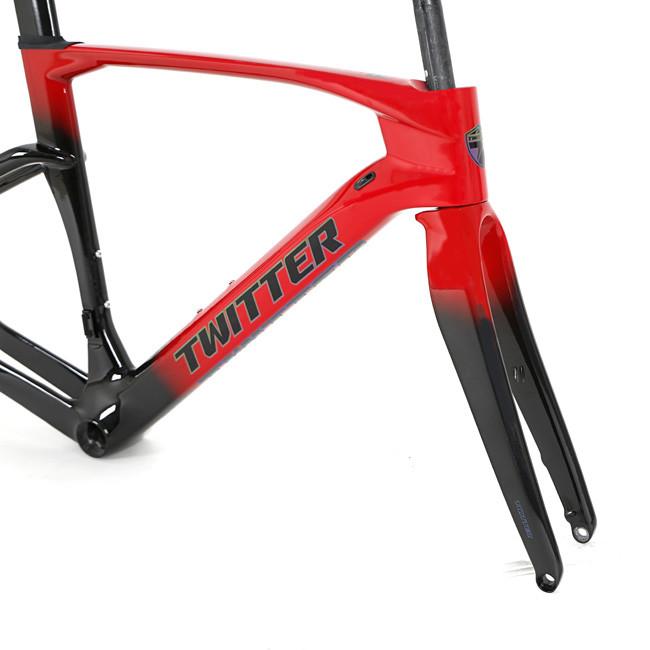

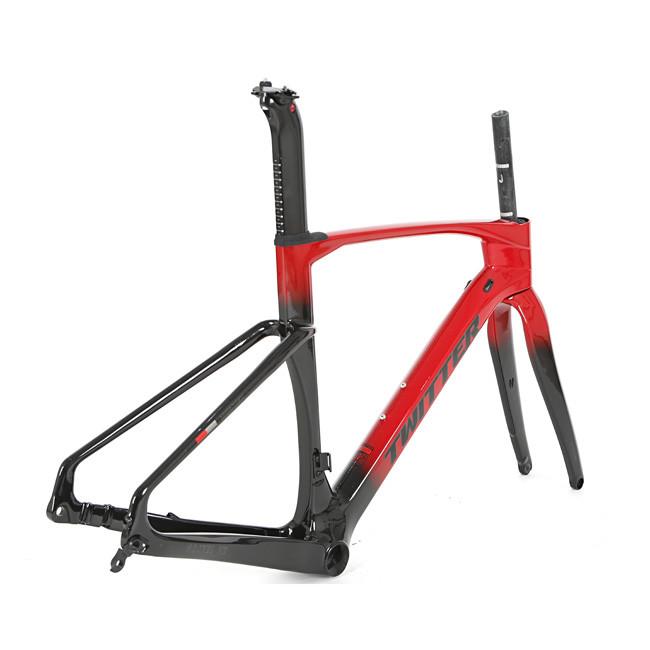

Different Viewing Angel for the GRAVEL Road bike frame.

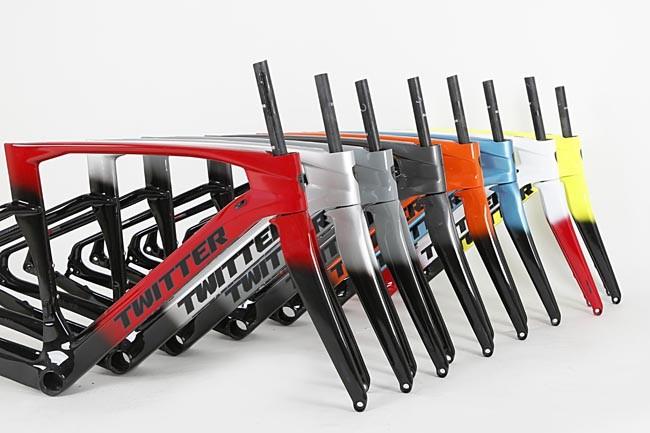

Mutil Color for optional of the GRAVEL Hybrid road bike frame
Warranty
European quality level
1) Quality is our number 1 focus for the entire team.
2) The design, injection, QA & packaging are all done in-house for efficiency and to standardized a high level of quality control.
3) Warranty is 5 years under normal using (not manmade damage).
4) All of carbon bike frames will be tested before shipping.
5) If you received some not working can show the pictures to us or send it back to us to repair or replace.
Company service
We can provide document when you need export shipping document like CE, Third-party inspections, Certificate of Origin, Form A/B/E, etc.
Our engineering sales will help you choose the very suitable bikes, and we also have the professional international team with more than ten years experiences to give you proposals or guide to import bike cargos from here.
