54cm T800 Carbon Frame Internal Cable With Holographic Color
Road Bike Frame T800 Light Weight Carbon Fiber Frame With Holographic Color XL SIZE
Carbon Fiber Road Bike Frame Features
1. Internal cable routing system, easy for cables slip through,
2. Tapered head tube design, together with the tapered and straight fork design, which offers a better stiffness for steering and acceleration.
3. Strong chain stay and seat stay design, which offers super stiffness and strength for racing
4. DI2 system available too
5. Maximized stiffness-to-weight ratio design, have a excellent balance for weight-stiffness-strength.
CARBON ROAD BIKE FRAME SPECIFICATION:
| Model/Name | SNIPER2.0-C-HC carbon road Frame+Fork+Seat post+Headsets |
| Size(Height) | 46cm / 48cm / 50cm / 52cm / 54cm |
| Material | High modulus Carbon fiber(T800) |
| Aplicated wheel size | 700*25C |
| BB | BB86*46 Pressed |
| Head tube | 52*52&Cover |
| Decals | UV laser colorful decals |
| Process | Aero-design, EPS, Inner-Cables, Gloss,UV laser colorful decals |
| Weight | Frame 1.12KG, Fork 0.36KG, Seat post 0.24KG |
| Color | Holographic Red/ Holographic Black |

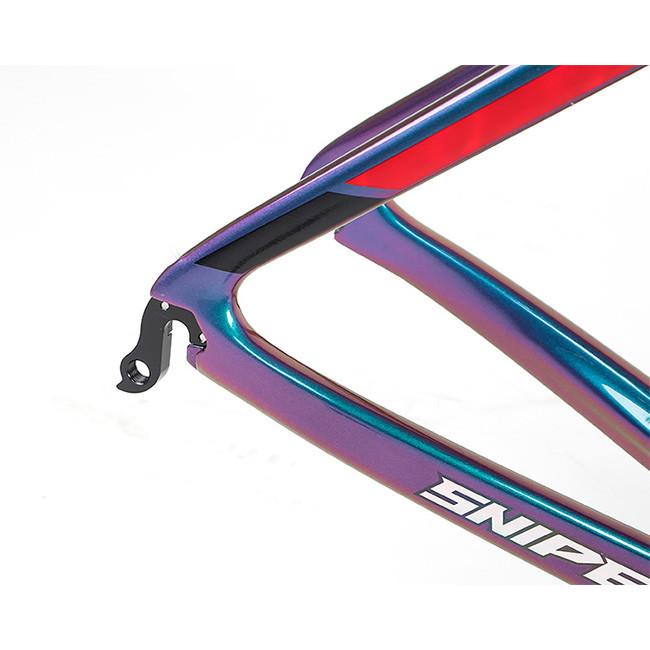

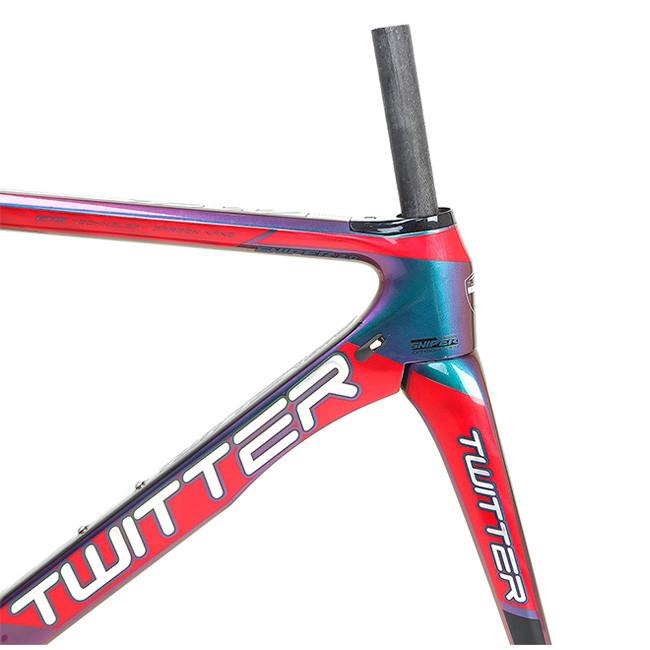

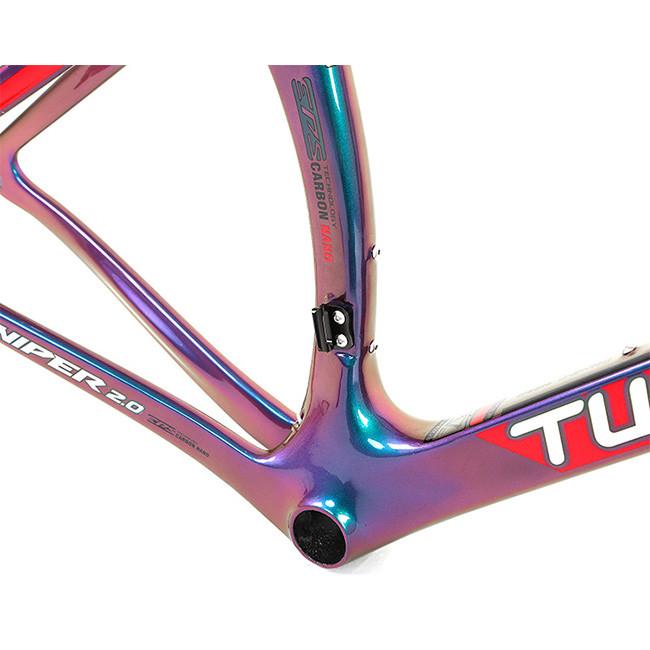

Hybrid road bike frame, shows on detail
Road bike frame with EPS Technology
The use of EPS technology for carbon fiber products offers the following advantages:
1. Has a sturdy carbon fiber casing, making the frame durable and sturdy, and light in weight
2. Has a positive strength to weight ratio, strength and shock absorption properties make it effective for the frame
3. Reduce the excessive stress concentration inside the frame
4. Stabilization and smoothness between the laminates in the inner layer of the frame and the joint
5. The finished frame has a bright and smooth appearance.
6. The finished frame has high hardness, good toughness, good strength and good adhesion.
7. The finished product of the frame has a long service life and stable quality.
Size of the Frame
| SNIPER 2.0-C | |||||||||||||
| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm | mm | mm | |
| XS | 460 | 525 | 370 | 405 | 75.5 | 71 | 72 | 95 | 45 | 141 | 568 | 962 | 270 |
| S | 480 | 535 | 374 | 405 | 74.5 | 71.5 | 72 | 110 | 45 | 149 | 569 | 963 | 270 |
| M | 500 | 545 | 379 | 405 | 74.5 | 72 | 72 | 115 | 45 | 154 | 575 | 970 | 270 |
| L | 520 | 555 | 383 | 405 | 74 | 72.5 | 72 | 130 | 45 | 161 | 580 | 974 | 270 |
| XL | 540 | 565 | 389 | 405 | 74 | 73 | 72 | 145 | 45 | 167 | 587 | 985 | 270 |
Carbon road bike frame with UV laser colorful decals

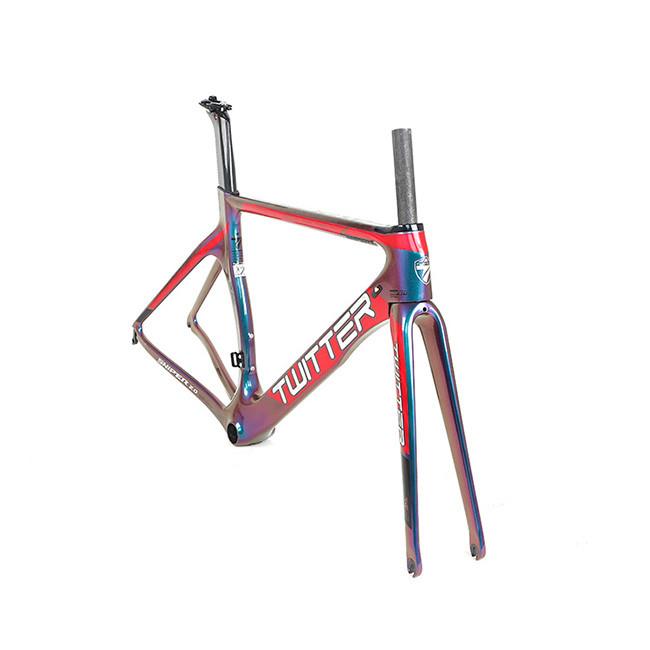

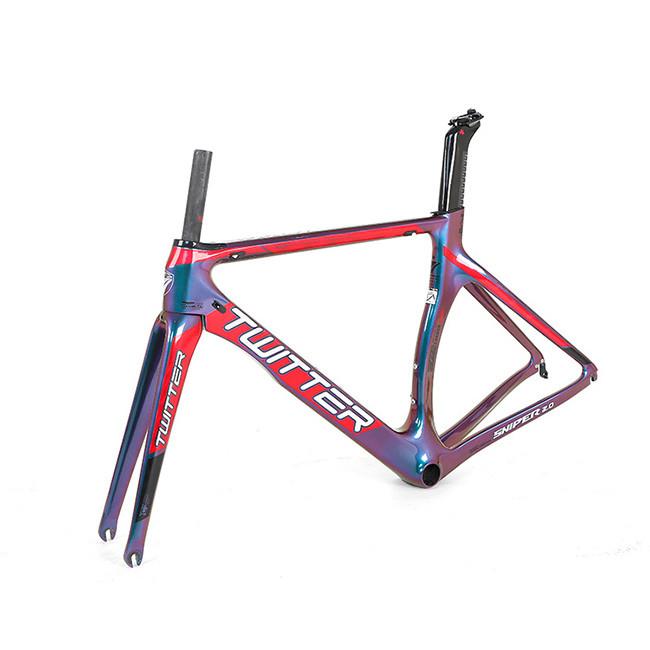

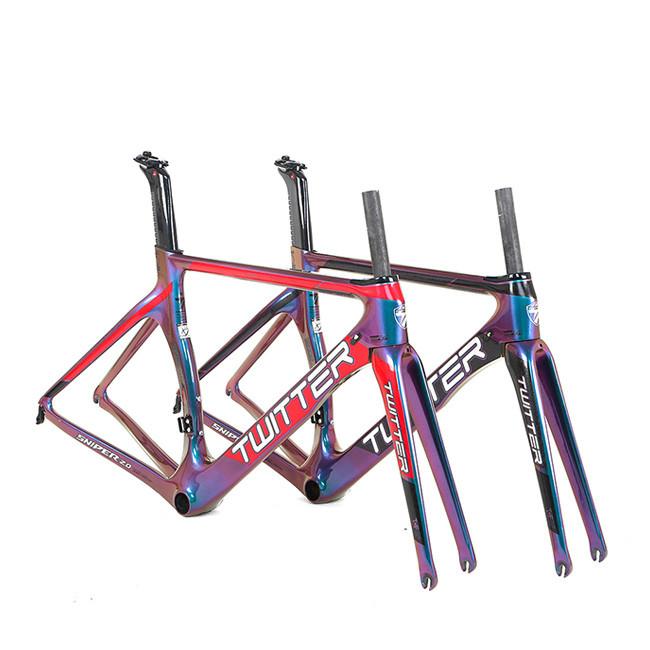

Different Viewing Angel for the Carbon Road bike frame.
Color of TWITTER Road Bike SNIPER2.0-C-HC
