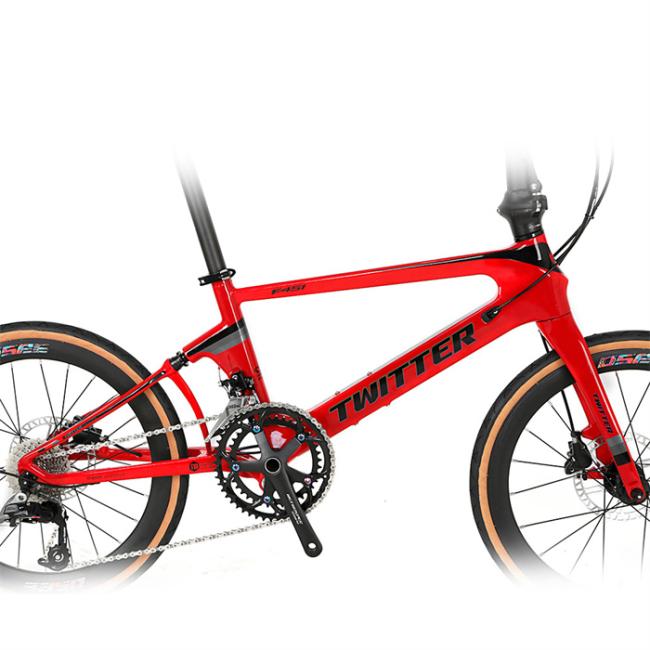

MT200 Hydraulic Brake Carbon Mountain Folding Bike With SHIMANO TIAGRA 4700
MT200 Hydraulic Brake Carbon Mountain Folding Bike With SHIMANO TIAGRA 4700
| Bike Model | F451 (carbon folding bike) |
| ConfRev | 4700-20S |
| Wheel Size | 451 (22") |
| Rider Height | ≈150-180cm |
| Bike Color | Red / BlackRed / Black Blue / BlackYellow / DarkGray / WhiteRed |
| Net Weight | 9.6KG |
| Frame | F451, high modulus Carbon Fiber,new style Foldable, Inner cables,Gloss+UV laser colorful decals |
| Handelbar Sets | RS Light weight Alu alloy, Handlebar25.4*600+foldable Stem L350+Seat post 31.6*500mm |
| Clamps | TW Alu alloy,Quick release 34.9mm |
| Fork | F451, high modulus Carbon Fiber, UV laser decals |
| Head Sets | Alu alloy CNC with sealed-Bearings 42*52mm |
| Washer | None |
| Derailleur Lever | SHIMANO TIAGRA/4700-20S |
| Front Derailleur | SHIMANO TIAGRA/4700 |
| Rear Derailleur | SHIMANO TIAGRA/4700 |
| Cranksets | RS, Alu alloy, Hollow, 34-50T |
| Cassettes | SUNSHINE-10S,11-28T |
| Chain | YBN-10S |
| BB | BSA68, Threaded, Hollow&Sealed bearings |
| Brake | SHIMANO MT200 hydraulic+P20 disc 160/160mm |
| Hubs | RS Alu alloy, 4-sealed Bearings,Slotted, F20_R24 Holes |
| Rim | RS Alu alloy, Double wall,W19×H36mm×451(22") |
| Spoke | SHUNJIU,Circular 14G |
| Tire | INNOVA, 451(22")×1.5", Skin-color edge |
Frame specification:
Highlights
Frame : EPS－Ethyl Poly Styrene The mandrel made of a thermoplastic material made of polystyrene compound conforming to the inner diameter of the frame is used as the basis for the production of the frame. If the stability of the overall quality of the frame can be enhanced, the internal wrinkles are prevented to increase the rigidity. In the market's pursuit of a highly rigid ultra-light frame, this technology can greatly extend the life of the frame and improve its safety. In the production process, the carbon fiber layer is coated on the EPS, and the mandrel is pulled out after being stabilized by molding. If the technology of TPM (thermoplastic layer technology) can be further combined, the ultra-light frame can be maximized. Good security effect.
It has a patented carbon fiber frame which is lightweight, compact and durable easing foldability and storage
Foldable new style Foldable, Inner cables

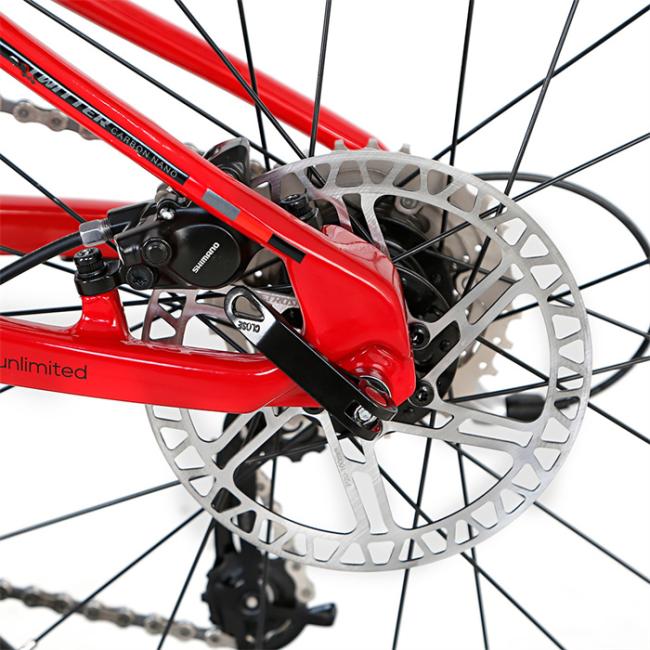

Brake : SHIMANO MT200 hydraulic+P20 disc 160/160mm
