Customized Logo Carbon Road Frame , 56cm Bike Frame Multiple Color Choices
Carbon Fiber Road Bike Frame Set Customized Logo Size 46/49/52/54cm
TWITTER Carbon fiber road bike frame are using EPS Technology.
The mandrel made of a thermoplastic material made of polystyrene compound conforming to the inner diameter of the frame is used as the basis for the production of the frame. If the stability of the overall quality of the frame can be enhanced, the internal wrinkles are prevented to increase the rigidity. In the market's pursuit of a highly rigid ultra-light frame, this technology can greatly extend the life of the frame and improve its safety. In the production process, the carbon fiber layer is coated on the EPS, and the mandrel is pulled out after being stabilized by molding. If the technology of TPM (thermoplastic layer technology) can be further combined, the ultra-light frame can be maximized. Good security effect.
The use of EPS technology for carbon fiber products offers the following advantages:
1. Has a sturdy carbon fiber casing, making the frame durable and sturdy, and light in weight
2. Has a positive strength to weight ratio, strength and shock absorption properties make it effective for the frame
3. Reduce the excessive stress concentration inside the frame
4. Stabilization and smoothness between the laminates in the inner layer of the frame and the joint
5. The finished frame has a bright and smooth appearance.
6. The finished frame has high hardness, good toughness, good strength and good adhesion.
7. The finished product of the frame has a long service life and stable quality.
TWITTER STEALTHpro CARBON ROAD BIKE FRAME SPECIFICATION:
| Model/Name | STEALTHpro-D carbon road Frame+Fork+Seat post+Headsets+Lever |
| Size(Height) | 45cm / 48cm / 51cm / 54cm |
| Material | High modulus Carbon fiber(T800) |
| Aplicated wheel size | 700*25C |
| BB | BB86*46 Pressed |
| Head tube | 52*52&Cover |
| Thru axle | F12*100_R12*142mm, Flat-mount post, |
| Decals | UV laser colorful decals |
| Process | Aero-design, EPS, Inner-Cables, Gloss,UV laser colorful decals |
| Weight | Frame 1.02KG, Fork 0.43KG, Seat post 0.19KG,Handle bar set 0.19kg |
| Color | Red Black /DarkGray /CementGray / Orange/ Blue/ BlackRed /SilverRed |

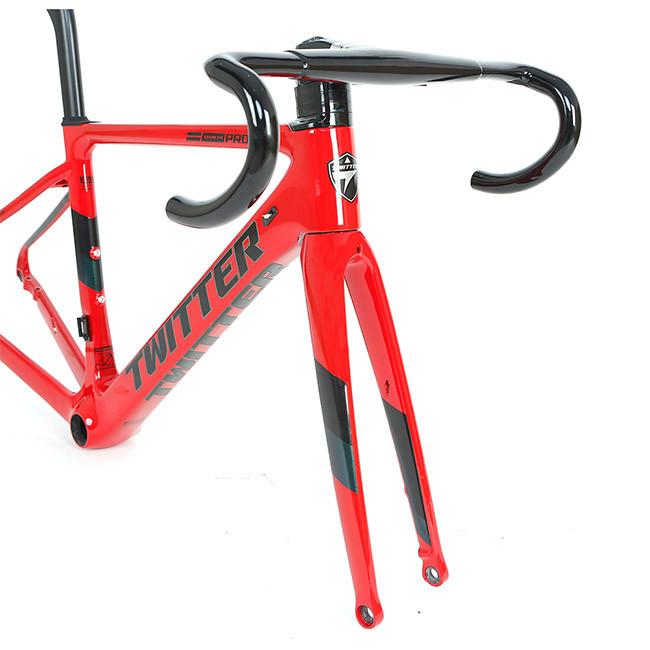

Different Viewing Angel for the STEALTHpro Road bike frame.
Road bike frame with EPS Technology
Size of the Frame
| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm | mm | ||
| XS - 45cm | 450 | 505 | 363 | 408 | 74.3 | 71.2 | 74 | 100 | 55 | 505 | 572 | 969 | 265 |
| S - 48cm | 480 | 520 | 373 | 408 | 74.3 | 71.2 | 75 | 114 | 55 | 519 | 588 | 985 | 265 |
| M - 51cm | 510 | 538 | 388 | 408 | 74.3 | 71.2 | 76 | 130 | 55 | 533 | 607 | 1004 | 265 |
| L - 54cm | 540 | 550 | 394 | 408 | 74.3 | 71.2 | 77 | 150 | 55 | 552 | 620 | 1017 | 265 |
| FRAME SIZE WITH RIDER HEIGHT | |||||||||||||
| Frame size | XS - 45cm | S - 48cm | M - 51cm | L-54CM | |||||||||
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195CM | |||||||||
Carbon road bike frame with UV laser colorful decals

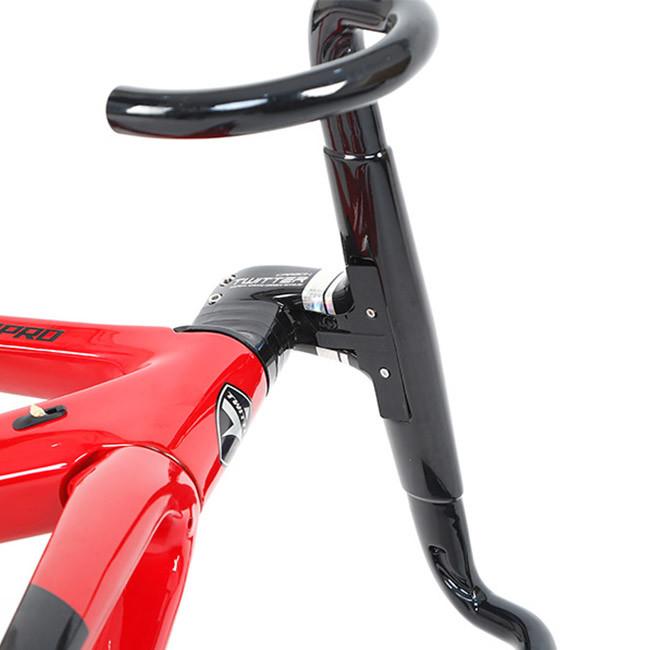

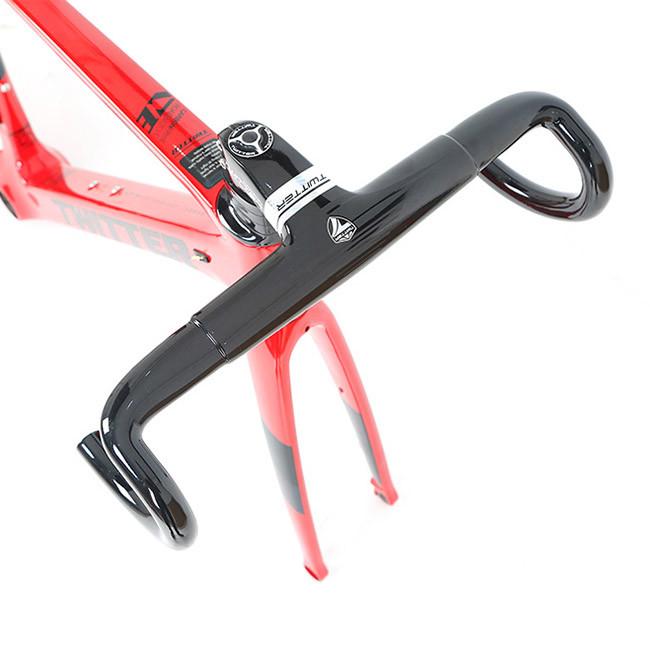

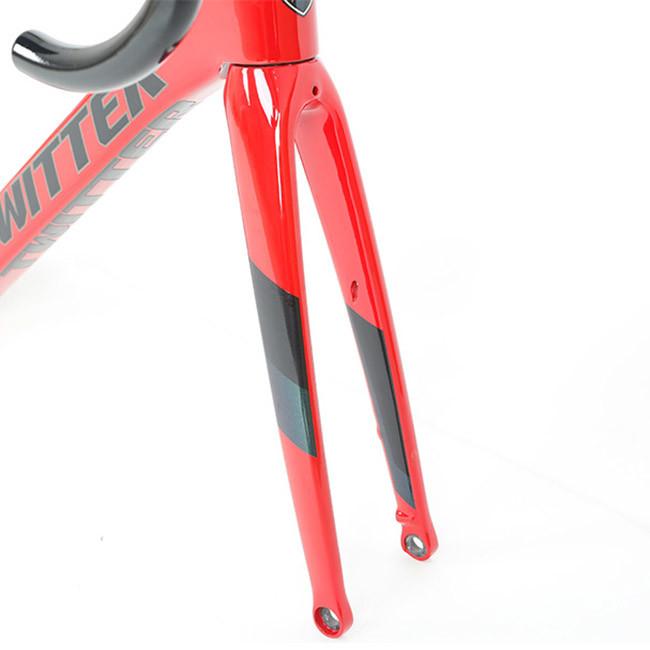

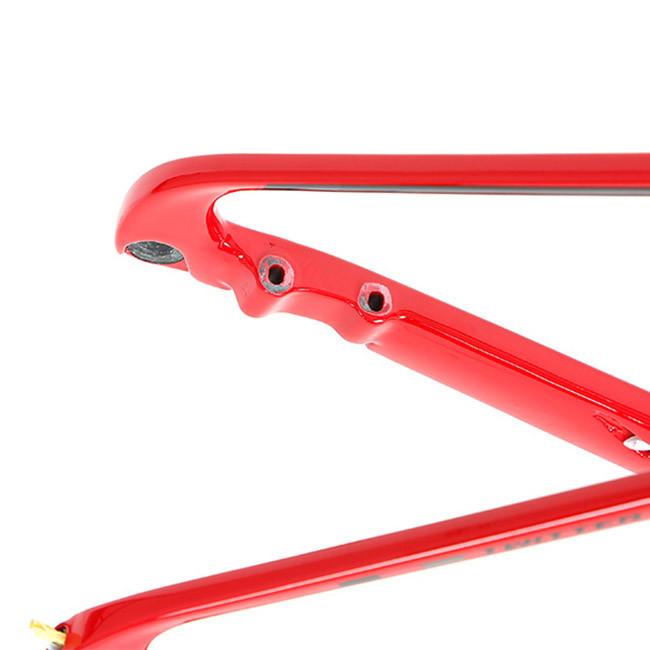

TWITTER STEALTHpro Carbon Fiber road bike frame, shows on detail
TWITTER Road Bike Stealth shows with complete bike
