22S Carbon Fiber Gravel Bike 700*40C Wheel With Double Disc Brake
22S Carbon Fiber Gravel Bike 700*40C Wheel With Double Disc Brake
Carbon Fiber Gravel Bike 22 Speed With Double Disc Brake Fit 700*40C Wheelset
Main features:
1.Carbon Fiber Gravel frame
2.Fit for 700*40C tire
3.RS-22S groupset
4.Zoom disc brake
| Bike Model | GRAVEL |
| ConfRev | RS-24S |
| Wheel Size | 700C |
| Frame Height | 45cm / 48cm / 51cm / 54cm |
| Bike Color | Red / Black / BlackRed / BlackYellow / DarkGray / CementGray / Blue / Yellow, Holographic color(Black / Silver / Yellow) |
| Net Weight | 8.7KG |
| Frame | GRAVEL(disc&thru-axle), high modulus Carbon Fiber,XC,EPS,700*40C,Inner-Cable,Gloss,UV colorful decals |
| Handelbar Sets | TW, Alu alloy,Matte&water decals,Handlebar 31.8×400,Stem 90,Seat post 31.6×350mm |
| Fork | GRAVEL, high modulus Carbon Fiber,700C,UV decals, disc&thru-axle 12×100mm |
| Head Sets | TW, Alu alloy CNC with sealed-Bearings 52*52mm |
| Derailleur Handle | RETROSPEC(SENSAH)-22S |
| Front Derailleur | RETROSPEC(SENSAH) |
| Rear Derailleur | RETROSPEC(SENSAH)-11S |
| Cranksets | Prowheel, Alu alloy, Hollow, 34-50T |
| Cassettes | SUNSHINE-11S, 11-30T |
| Chain | YBN-11S |
| BB | Hollow BB92×41×24mm, pressed |
| Brake | RS,flat-mount&cable pull Hydr(metal radiator)+PRO float disc 140/140 |
| Hubs | RS, Alu alloy,4-sealed Bearings,Slotted,F20*R24 holes,disc&thru-axle F12×100_R12×142mm |
| Rim | RS, Alu alloy AL7005,Double wall,Matte,W19×H36mm×700C |
| Spoke | SHUNJIU, Flat 14G,bend head |
| Tyre | INNOVA, 700*40C, Skin-color edge |
| Belt | Woven&Comfortable&Skid resistant |
| Saddle | TW, comfortable&lightweight for racing |
| Pedals | SENCE, Alu alloy with Lightweight&Skid resistant |

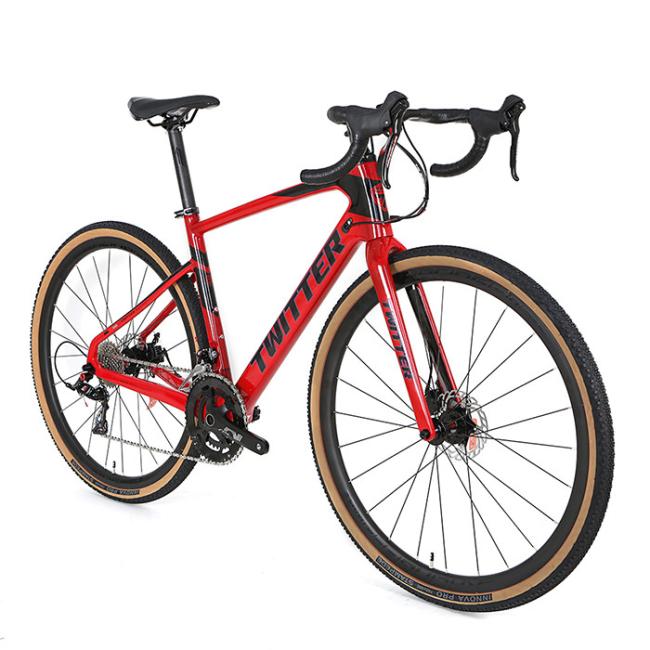

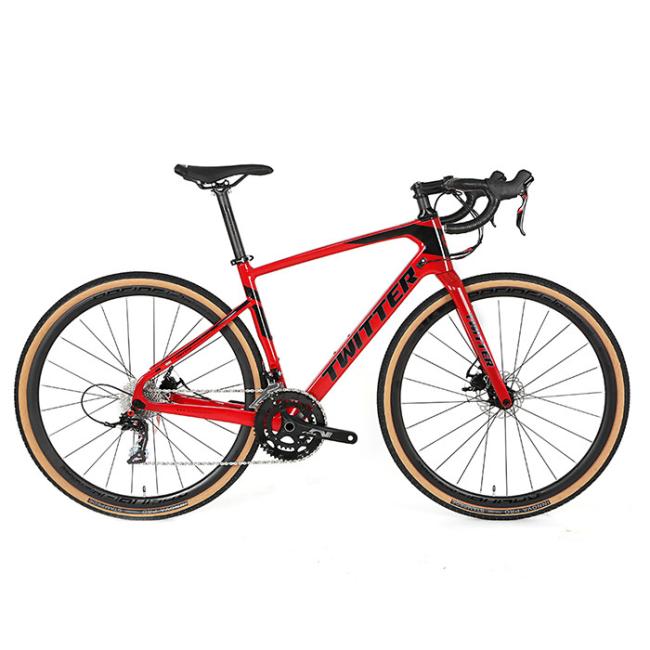

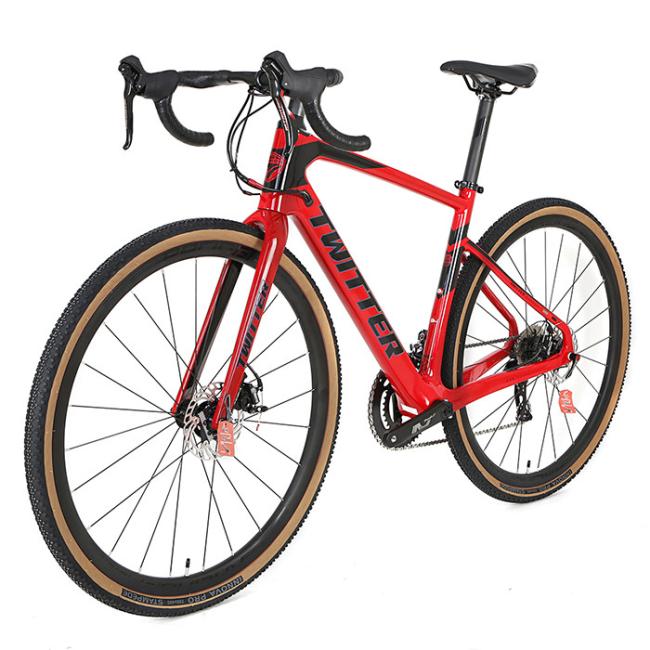

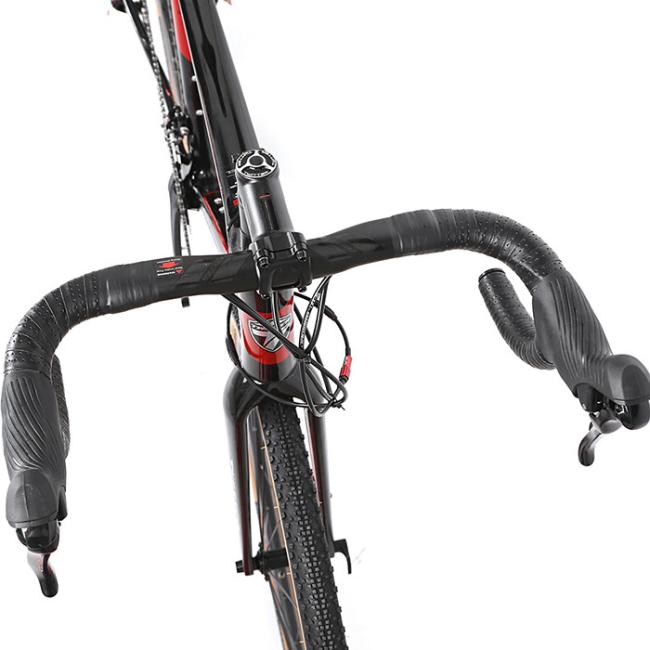

Gravel bike different angle photos:
Gravel bike customer show

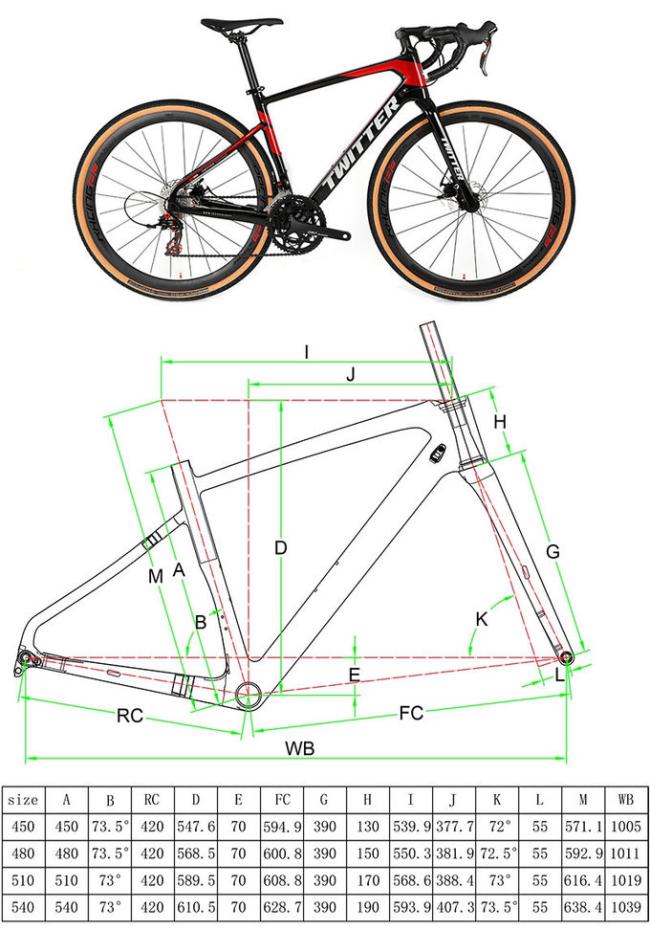

| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm | mm | ||
| XS - 45cm | 450 | 505 | 363 | 408 | 74.3 | 71.2 | 74 | 100 | 55 | 505 | 572 | 969 | 265 |
| S - 48cm | 480 | 520 | 373 | 408 | 74.3 | 71.2 | 75 | 114 | 55 | 519 | 588 | 985 | 265 |
| M - 51cm | 510 | 538 | 388 | 408 | 74.3 | 71.2 | 76 | 130 | 55 | 533 | 607 | 1004 | 265 |
| L - 54cm | 540 | 550 | 394 | 408 | 74.3 | 71.2 | 77 | 150 | 55 | 552 | 620 | 1017 | 265 |
| FRAME SIZE WITH RIDER HEIGHT | |||||||||||||
| Frame size | XS - 45cm | S - 48cm | M - 51cm | L-54CM | |||||||||
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195CM | |||||||||

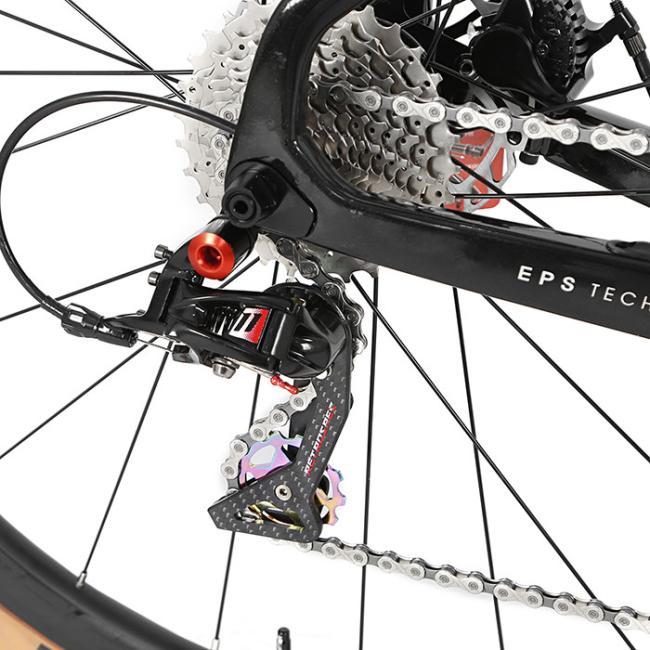

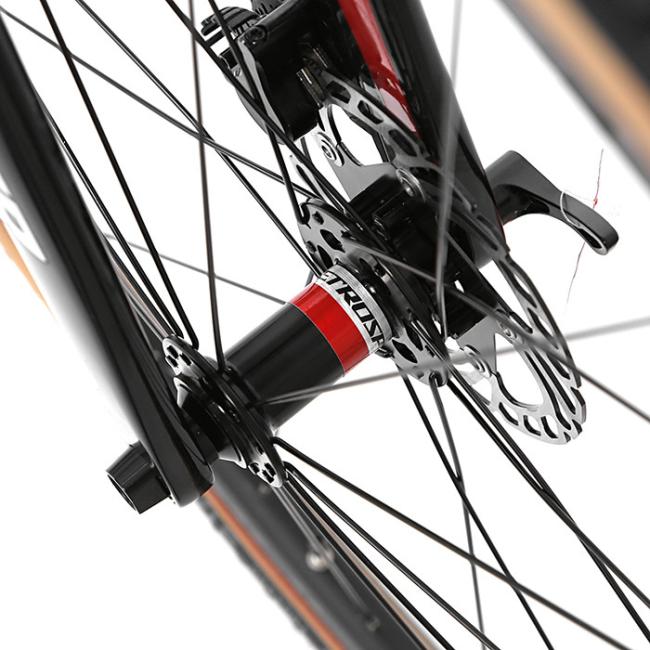

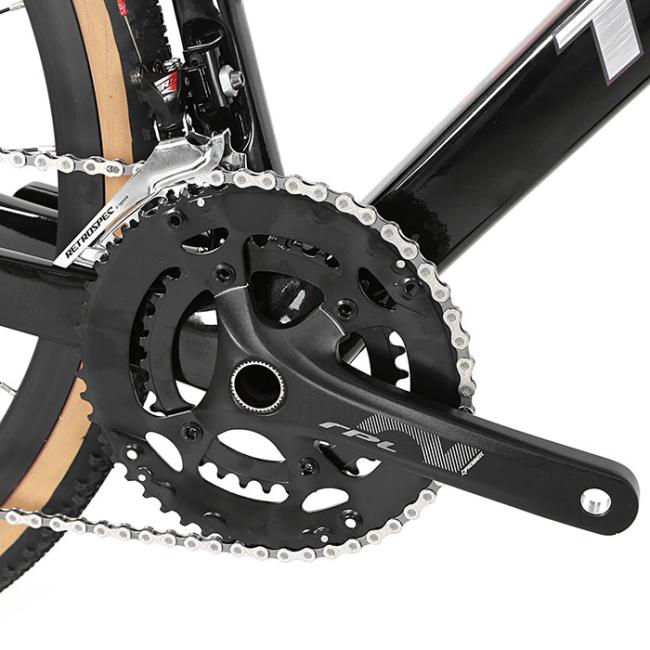

Gravel bike details photo:
There's no denying that gravel cycling has taken the bicycle world by storm. It's what everyone is talking about.
From humble beginnings on the endless unpaved roads in North America - or arguably half a century ago in northern England with the Rough Stuff Fellowship - gravel riding (its trendy 21st century name) is more popular than ever.
In the UK at least, it can seem that the term 'gravel' is rather misleading. Sure, there are certainly are gravel roads here (we're looking at you, valleys of South Wales, forestry plantations of Scotland and the ancient Roman roads of Yorkshire) but they're much less common than the expansive gravel road networks in the US.
What we do have, however, is a vast network of bridleways, byways, tracks, common land and moor, all which can be linked up with sections of tarmac.
