Digital PLC 30KW Induction Heat Treatment Equipment Induction Hardening Machine
Digital PLC 30KW Induction Heat Treatment Equipment Induction Hardening Machine
Descriptions of induction hardening machine:
Digital Induction heating equipment is widely used in metal hardware and tools heat treatment, all kinds of hardware brazing welding, mechanical parts and automobile and motorcycle accessories quenching, stainless steel annealing demagnetization, heat red through the heart and pushing the elbow and some special partly heating, metals and alloys melting and so on.
According to the different parts, heating machine can be local heating, internal hole heating, or the overall heating, surface heat treatment or the overall diathermy, the maximum temperature can up to 1500-2500 ℃.
Functional features of digtal induction heating machine:
1. Multistage heating: Implementation multistage heating setting. (The basic mode is 5-stage. We can be customized according to customer requirements)
2. Multiple storage: Multiple operation parameter storage, a one-click transfer.
3. The digital induction heating machine can achieve Man-computer interaction interface.
4. Accurate heating: The heating time can be accurate to 0.1 second.
5. Plentiful interfaces: Access to the different industrial buses like RS-485, Profibus, CAN and so on.
Technical parameters:
|
Item Model |
DIH-30 |
|
|
Output |
Rated Output Power(KW) |
18 |
| Max Output Power(KW) |
30 |
|
| Duty Cycle |
100% |
|
| Output Power Adjustment Range |
5~100% |
|
| Frequency Range(KHz) |
10~55 |
|
|
Input |
Input Voltage(V) | 3×380 |
| Frequency (Hz) |
50 |
|
|
Cooling |
Min Flow of Cooling Water(L/Min) |
10 |
| The Max Temperature of Cooling Water Inlet |
Max35℃ |
|
| Min/max Cooling Water Pressure(MPa) |
0.1-0.3 |
|
| PH of Cooling Water Quality |
7.0~9.0 |
|
|
Other |
Environment Temperature |
+5℃~+40℃ |
| Dimension(L×W×H) | Main Extension Size |
550×320×500 |
|
360×262×330 |
||

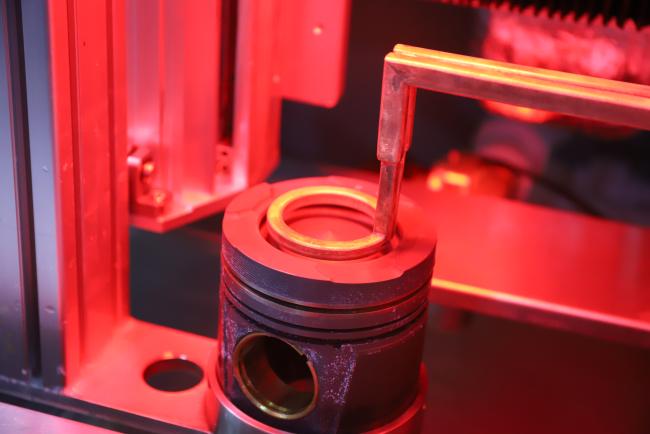

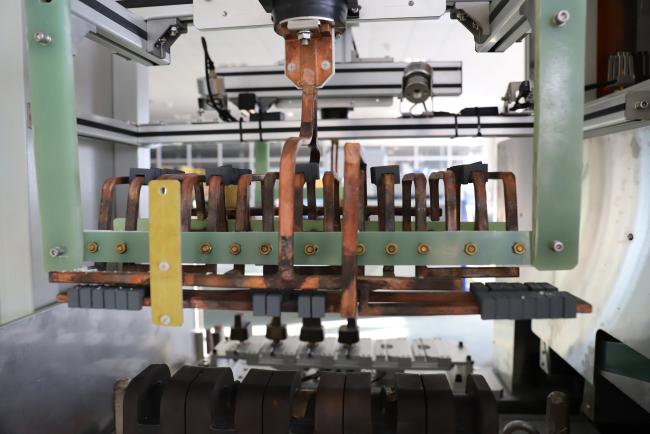

Applications of Induction heating equipment:
