IGBT 220V 50Hz High Frequency Induction Quenching Machine
IGBT 220V 50Hz High Frequency Induction Quenching Machine
Descriptions of quenching machine:

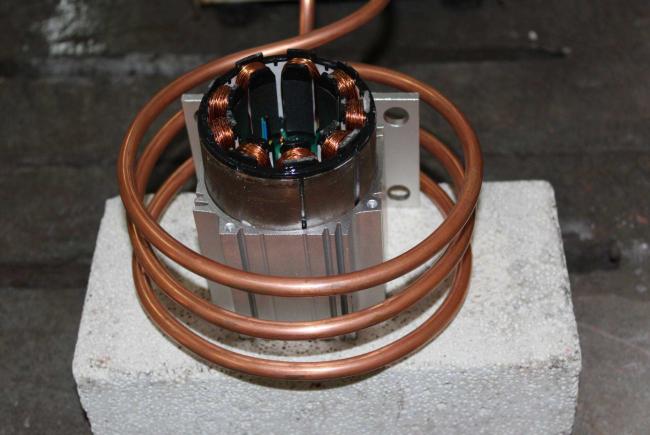

Induction heating equipment is widely used in metal hardware and tools heat treatment, all kinds of hardware brazing welding, mechanical parts and automobile and motorcycle accessories quenching, stainless steel annealing demagnetization, heat red through the heart and pushing the elbow and some special partly heating, metals and alloys melting and so on.
According to the different parts, it can be local heating, internal hole heating, or the overall heating, surface heat treatment or the overall diathermy, the maximum temperature can up to 1500-2500 ℃.
Technical parameters of quenching machine:
|
Item Model |
GP-30 |
| Rated Voltage(V) |
220V/50Hz |
| Input Power(kVA) |
2~20 |
| Input Oscillation Frequency(kHz) |
30~110 |
| Load Duration |
100% |
| Cooling Water Pressure(Mpa) |
0.05~0.15 |
| Output Water Flow(L/Min) |
5~10 |
|
Dimension(L×W×H)
|
420×240×400
|
Applications:

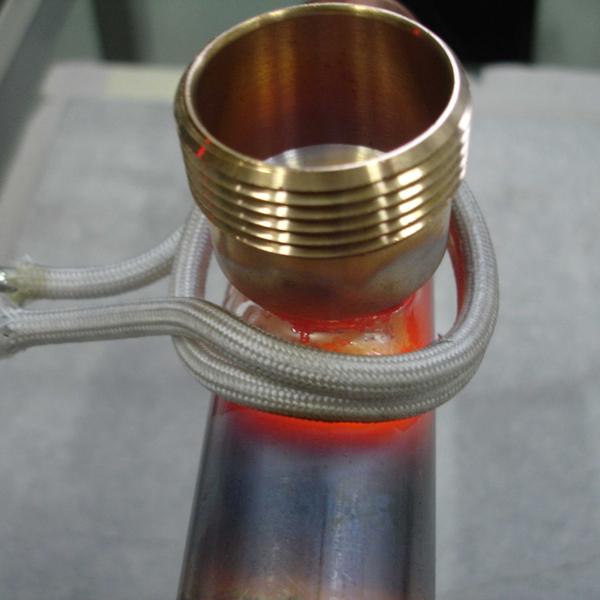

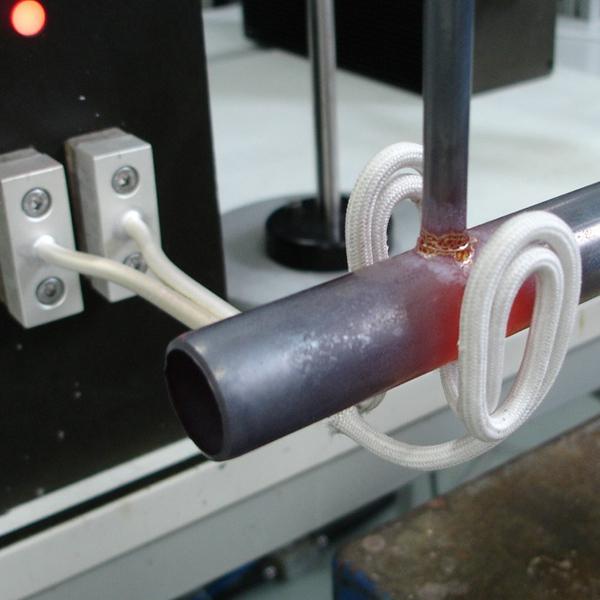

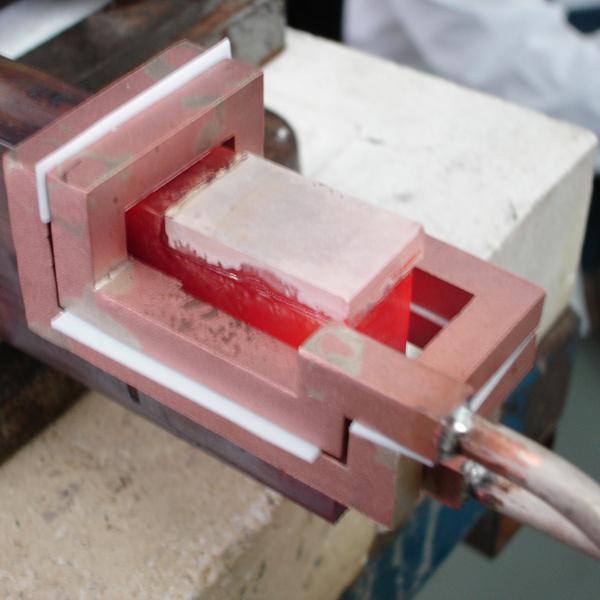

High frequency induction heating equipment adpots to big metal parts/bars/rods heating, quenching, hardening, annealing, tempering, normalizing, copper brazing ,silver brazing etc.
All kinds of metallic materials' heating treatments:
Quenching/Hardening for big shafts, gears, standard bolts/rods/nuts.
Surface hardening, induction heating hardening, steel pipe induction heating, induction annealing machine.
Layer of about 2~3mm.
FAQ:
Q: Why choose Hongchuang induction quenching equipment?
A: 1. The heat source is on the surface of the workpiece, fast heating speed, high thermal efficiency, small deformation, less amount of decarburization.
2. The surface hardness of the workpiece is high, the notch sensitivity is small, and the impact toughness, fatigue strength and wear resistance are greatly improved.
3. It can be used not only in surface quenching but also in penetration heating and chemical heat treatment.
4. Lihua Gear and Shaft quenching machine has the function of continuous quenching, simultaneous quenching, continuous quenching in sections, simultaneous quenching in sections.
5. Variable frequency speed control system, servo motor drive, ball screw drive.
6. Both two cooling methods immersion and spraying are available for the equipment , it can be equipped with the integrated quenching liquid circulating cooling system.
7. Adopts CNC system and PLC touch screen to control the equipment, the equipment is without programming, convenient operation, real-time display, can store 126 programs, concentrate heating→ positioning→ spraying and time controlling on the control system of machine, easy positioning and scanning, and connect with induction generator through PLC , realize automatic production.
8. High resetting precision, small volume, light weight, easy maintenance.
9. According to the needs of the customer, a semi automatic or fully automatic high frequency quenching machine equipment can be customized.
