Three Phase 30KW High Frequency Induction Heating Machine For metal Melting
Three Phase 30KW High Frequency Induction Heating Machine For Metal Melting
Descriptions of high frequency induction heating machine:
High frequency induction heating equipment adopts electromagnetic induction principle, making the metal material generate induced current in the circle of the alternating magnetic field to melt metal material. It can also penetrate non-metallic materials, heating the metal parts or all of them quickly.
Technical parameters of high frequency induction heating machine:
|
Item Model |
GP-30 |
| Rated Voltage(V) |
380V/50Hz |
| Input Power(kVA) |
2~30 |
| Input Oscillation Frequency(kHz) |
30~100 |
| Load Duration |
100% |
| Cooling Water Pressure(Mpa) |
0.1~0.3 |
| Output Water Flow(L/Min) |
5~15 |
|
Dimension(L×W×H)
|
550×320×500 360×262×330 |
Applications of melting machine:
Quenching is to heat the material above the phase transition temperature, and to keep the microstructure of the material sufficiently transformed into austenite during a certain period of time.
Then, the material is cooled rapidly and the martensite microstructure is obtained. Quenching is mainly to obtain higher hardness and better wear resistance. It is mainly used for carburizing parts such as gear, shaft, motor, roller, knife edge, screw, mould, track and so on. Induction quenching equipment is our heat treatment systems for surface and through hardening.
At the heart of each quenching machine is an LIHUA Induction high frequency heat generator, which adopts the latest MOSFET power units and unique frequency conversion technology. Induction hardening equipment consists of induction power supply, load line, capacitor, transformer, inductor, and machine tool.
The quenching machine includes horizontal type, vertical type and special machine, and compensated induction power sources with a wide range of output frequency and power.

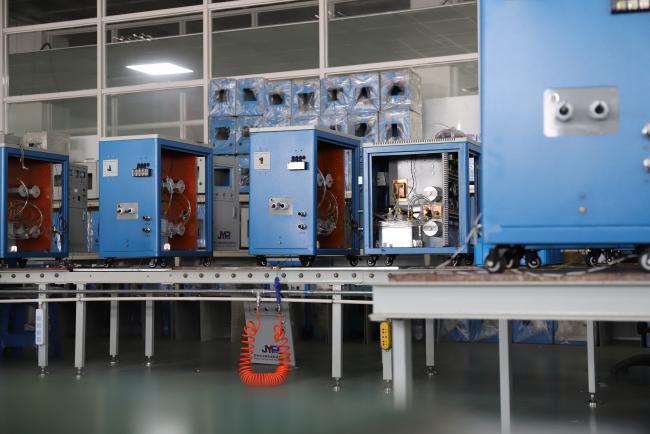

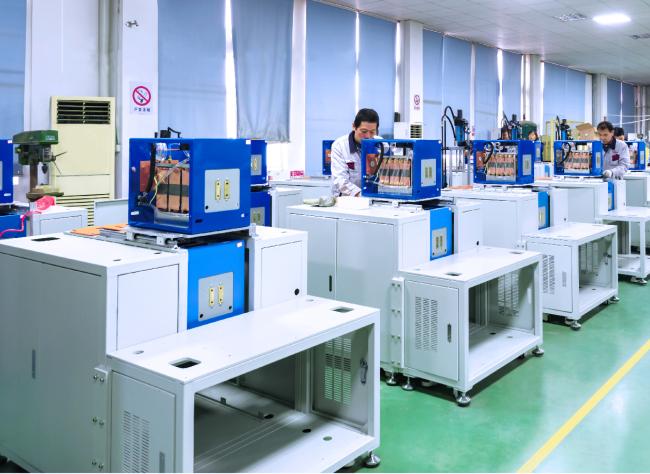

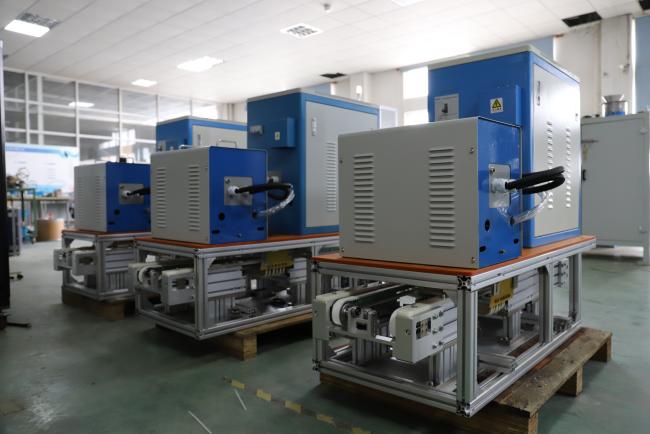

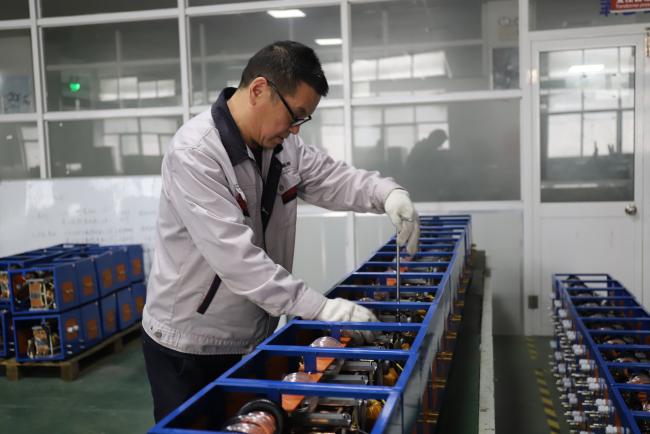

Production process of induction heating machine:
