Touch Screen High Frequency Induction Heater For Heating Annealing Welding Metal Parts
Touch Screen High Frequency Induction Heater For Heating Annealing Welding Metal Parts
Features of Induction Heating Machine:
1. using the well-known international company PLC,IGBT power devices and unique inverter technology, 100% duty cycle design, 24-hour operation at maximum power, high reliability assurance.
2. self-controlled adjustable heating time, heating power, holding time, holding power and cooling time; greatly improve the quality and repeatability of heating heating products, to simplify the operation of technical workers.
3. light weight, small size, simple installation [a few minutes to complete].
4. simple, few minutes to learn.
5. special Security, the output voltage is below 36V, remove the high voltage electric shock.
6. the heating efficiency up to 95%, energy consumption is only 20% -30% of the old-fashioned tube, almost no electricity in standby mode, and 24 hours of continuous work.
7. the sensor can be freely removable quick replacement, ultra-fast heating significantly reduced the oxidation of the workpiece deformation.
8. substituted oxygen, acetylene, coal and other dangerous items heated latest environmentally friendly products, no open flame to produce more safe and secure.
9. the device has over-current, over voltage, over temperature, water shortages, lack of equal perfect automatic protection function, and is equipped with self-diagnostic alarm system.
10. the apparatus includes a constant current and constant power control function, greatly optimize the process of heating the metal to achieve efficient, rapid heating, the superiority of the product can be fully realized.
Technical parameters of induction heating machine:
|
Item Model |
DIH-40 |
|
|
Output |
Rated Output Power(KW) | 25 |
| Max Output Power(KW) |
40 |
|
| Duty Cycle |
100% |
|
| Output Power Adjustment Range |
5~100% |
|
| Frequency Range(KHz) |
10~55 |
|
|
Input |
Input Voltage(V) | 3×380 |
| Frequency (Hz) |
50 |
|
|
Cooling |
Min Flow of Cooling Water(L/Min) |
10 |
| The Max Temperature of Cooling Water Inlet |
Max35℃ |
|
| Min/max Cooling Water Pressure(MPa) |
0.1-0.3 |
|
| PH of Cooling Water Quality |
7.0~9.0 |
|
|
Other |
Environment Temperature |
+5℃~+40℃ |
| Dimension(L×W×H) | Main Extension Size |
600×400×620 |
|
410×285×380 |
||

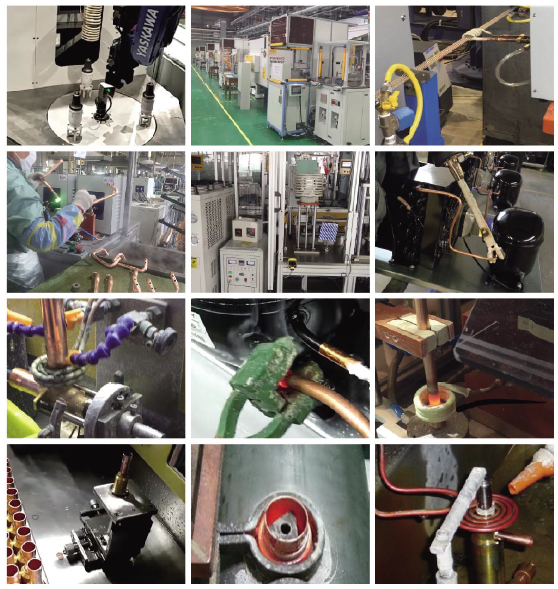

Induction Heating Machine Application:
1. welding/brazing for carbide saw blade tooth;
2. welding/brazing and annealing for spectacle frames and its spare parts;
3. welding/brazing/heating for jewelry & watches;
4. Electronics Industry: tin/silver/copper brazing/soldering for very small evenΦ0.1mm below wire and pieces of various electronic components;
5. Electromechanical industry: silver brazing for metal joints, quenching and tempering for micro motor & shaft;
6. Wire Industry: wire strip annealing;
7. Welding tools, cutter, hardening for shoe mouth & blade;
8. Toy Industry: winding thin metal sheet tempering.
