Switch Mode DC Plating Rectifier Electroplating Equipment For Waste Water Treatment
Switch Mode DC Plating Rectifier Electroplating Equipment For Waste Water Treatment
Product Description of Switch Mode DC Plating Rectifier:
PRODUCT APPLICATION
1. Surface treatment:Nickel plating,zinc plating,copper plating,chrome plating,aluminum anodizing,brass plating,ABS plating,gold plating,silver plating,etc
2. Waste water treatment,normally need the polarity reverse rectifier
3. Electrolysis copper,electrolysis coloring,electrolysis salt water,electrolysis degreasing
4. Stainless steel electro-polishing
5. Lab testing power supply,
6. Silicon carbide smelting & Graphitization furnace
7. Electrochemical: Chlor-alkali, etc
8. DC Motor testing
9. Heating: Inductive heating, DC heating, single phase AC heating
Details of Switch Mode DC Plating Rectifier:
| Item | Content |
| Input voltage | 3 phase AC 380V, 480V, 415V, 220V ±10%, 50-60Hz |
| Output DC current | Rated 500A~50KA |
| Output DC voltage | Rated 12V-48V |
| Protection class | Up to IP54 for water cooling, IP32 for air cooling |
| Efficiency | >90% @ rated output |
| Power factor | ≥0.93 @ rated output |
| Ambient temp. | Max. 50°C |
| Cooling | Water or forced air cooling |
| Regulation range | Stepless at constant voltage or current 0-100% |
| Control precision | Voltage/current≤1% |
| Control mode | Constant current/voltage/power |
| Operation mode | Manual/remote |
| Manual control | Remote digital box |
| Relative humidity | 15%-85%RH |
| PLC interface | RS485, 0-10V/4-20mA |
| Communication protocol | MODBUS,Profibus, Profinet |
| Process programming | Available |
| Polarity reverse | Available |
| Spare parts | Available |
| HMI | Touch panel or digital meters/buttons |
| Package | Plywood case for export |

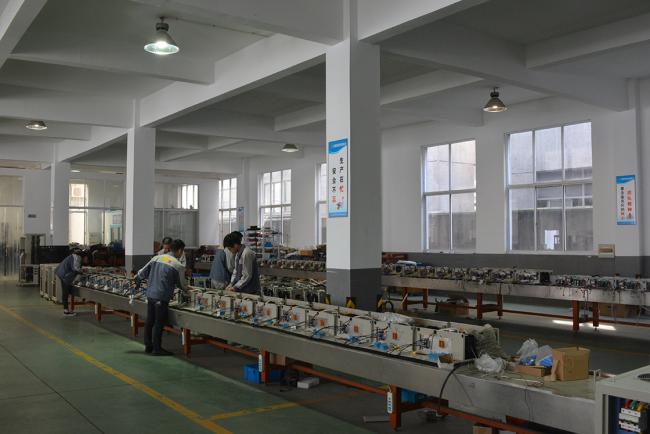

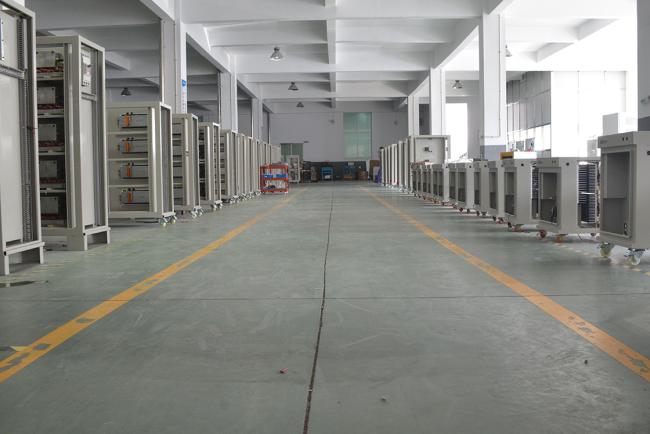

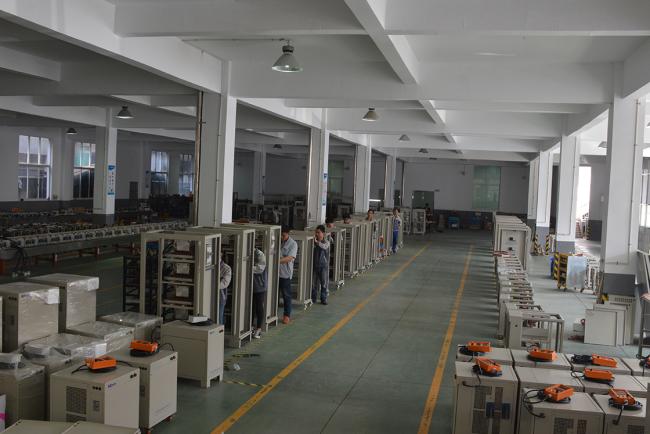

Production of Switch Mode DC Plating Rectifier:
