Gold Silver Copper Plating Line Electroplating Equipment


Descriptions of electroplating equipment:

Raw material: 10--15mm PP/PVC board (customized) Class A board

Corrosion-resistant hangers and cranes: steel cranes and epoxy coatings.

Equipment Model:

(1)  According to the plating method: roll plating and hanging plating

(2)  According to the control system: portable equipment; Manual electroplating line; Semi-automatic electroplating line; Fully automatic wire.

(3)  According to use: galvanized; Nickel plating. Chrome plated; Copper plating; Gold plated. Anodic oxidation

Accept customization: Electroplating line is non-standard, we can design according to your product information.

Pre-delivery testing:

(1)  Leak-proof test: After welding and before installation, we will fill the water tank with water and the test time will be 72 hours.

(2)  Run test: We will install and operate the equipment. At the same time, we will bring the test video to the customer for confirmation.

Our service: perfect after-sales service

(1)  Detailed installation manual: We will make detailed installation manual according to your customized equipment, yesHelps you understand and understand how to install the machine more clearly.

(2)  online guide: if the customer needs, we can hold a meeting about WeChat, Whatsapp or Skype, and then face the customer to solve the questionface

(3)  On-site guidance: According to the customer's requirements, we can send engineers and workers to the customer's factoryConduct on-site instruction and training of workers on how to operate.

Warranty: one year (except for man-made damage, we will replace external equipment free of charge).

Export license. We can export directly to your region.

Necessary auxiliary machines for electroplating industry:

Plating hanger:

Hanger is the most important auxiliary tools for electroplating process. It is tool not only to make sure plating workpiece connected with cathode, but also has a direct impact on coating layer distribution and efficiency. Now there are professional hanger suppliers to offer general design hanger and also can customize according to users’ special requirements.

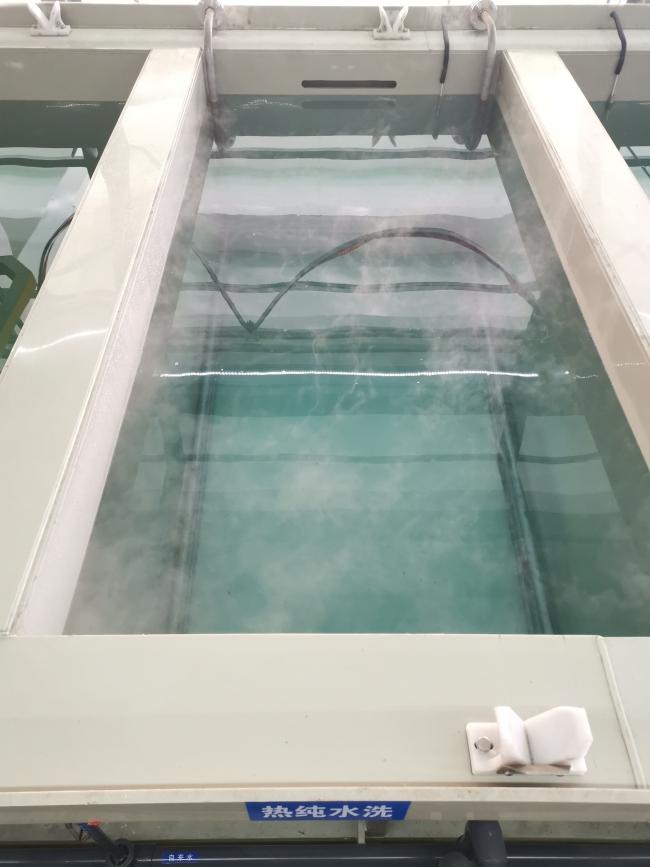

Plating bath:

Plating bath must be equipped with accessories including anode and anode or anode baskets or anode hook, electrode rods , power cables, etc..
Most anode basket used titanium as material, a few species electroplating adopt stainless steel or steel.

Electrode rod is conductive rod which used for hanging anode and cathode and also connected to power source. Usually made of copper or brass rod, slightly longer than the plating bath, the diameter size according to the current demand, but the diameter at least more than 5cm.

The key function of power cable is to ensure can go through needed current. The best material is copper plate, also multi-strand cable can be adopted, but cross sectional area requirements must be complied with.
