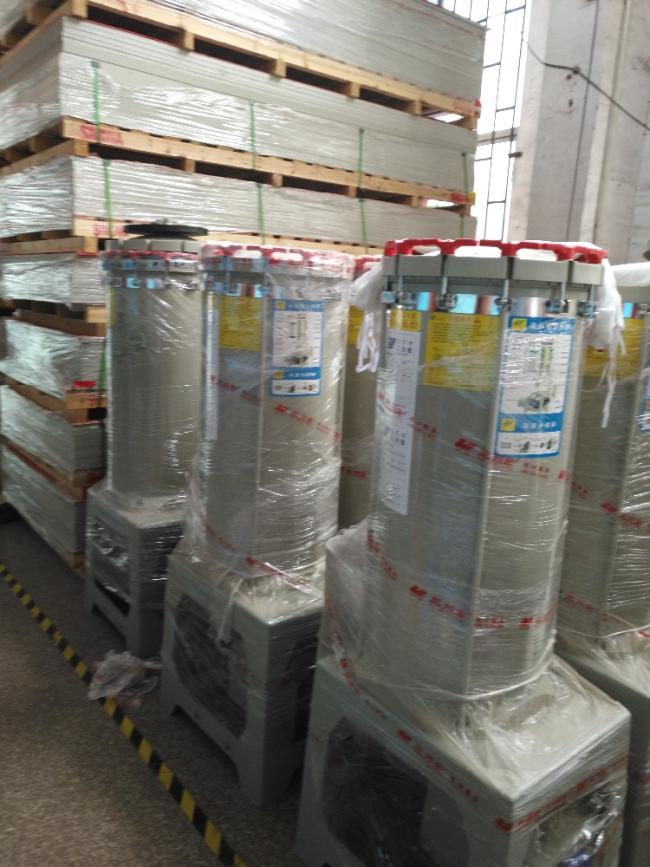

Nickel Electroplating Filter For Excellent Circulation Industrial Filtration Equipment

Price Negotiable

Price: Negotiable

MOQ: 1 Unit

Delivery Time: 7-15days after payment

Product Description

Nickel Electroplating Filter For Excellent Circulation Industrial Filtration Equipment

Products Features of Industrial Filtration Equipment :

1.Chemical Filter,the main use of PP/PVC material,with high temperature resistance,acid and alkali corresiveness feature.

2.Safety protection device,when the motor overload or single-phase operation,the safety switch will be automatic cut offer the power supply.

3.Combination of user-friendly design, mold production of various parts of components, spare parts to replace 100% exchanged easily,

and may at any time based on the different filter change,note the new conjoined bucket, to ensure leak-free world.

4.Motor protective cover, to ensure the motor in the acid gas in the different subject,

5.High-precision filter, filter wide area, high efficiency, easy operation and cleaning,

6.Inlet an Outlert of PVC or PP flange one group,for customers option.

7.Models can do the same change in the use of different filter media: filter press disc, filter pipe pressure disc, star fruit type, filter lock cap type, filter paper type.

8.Can install self-cleaning cycle system, activated carbon treatment plant, using activated carbon centers can be installed a filter, easy to operate.

9.The new exhaust valve patented design, non-metallic.

Parameters of Industrial Filtration Equipment :

Model		PH-204	PH-206	PH-208	PH-212	PH-218
Filter material	B type	20" * 4	20" * 6	20" * 8	20" * 12	20" * 18
Applicable for plating bath(Ton)		0.8	1 - 2	1 - 3	2.5 - 4	4 - 6.5
Filtering capacity(L/min)		80	150	180-220	220	330 - 50
Filter area(m2)	B type	1	1.5	2	3	4.5
Outlet/Inlet Dimentions(inch)		1	1 - 1/2	1 - 1/2	2	2
