Industrial Chemical Electroplating Liquid Water Filter Systems Chromic Acid
Industrial Chemical Electroplating Liquid Water Filter Systems Chromic Acid Filter
Features and benefits of chromic acid filtration:
1.Usage temperature is below45℃ .
2. The filter is made of PVC material which can be resistant to chromic acid and a variety of acid and alkaline liquid.
3. The pump is made of PVDF material Self pump and magnetic pump are optiona priming.

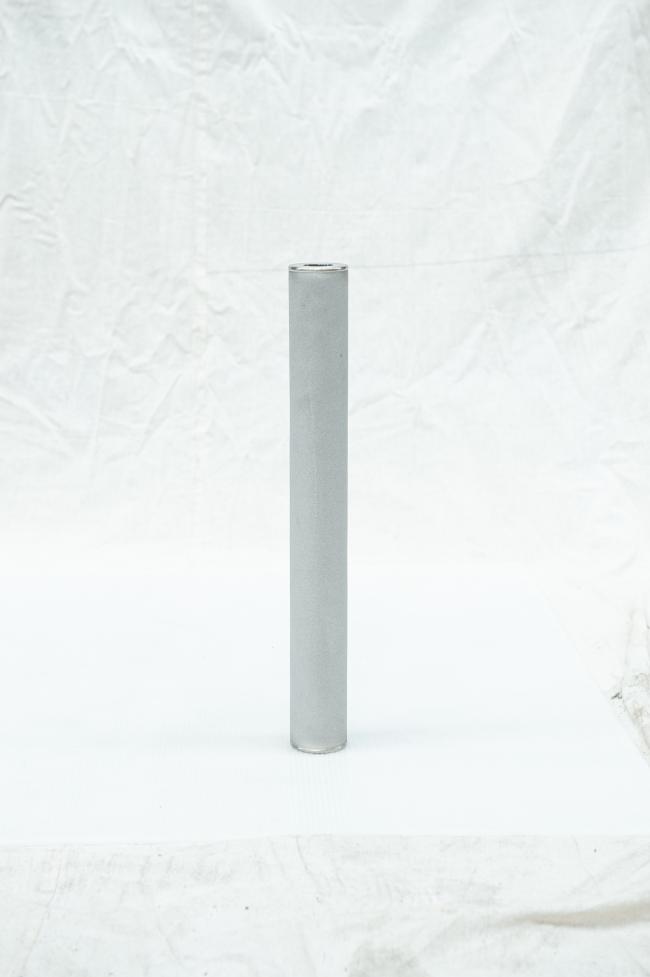

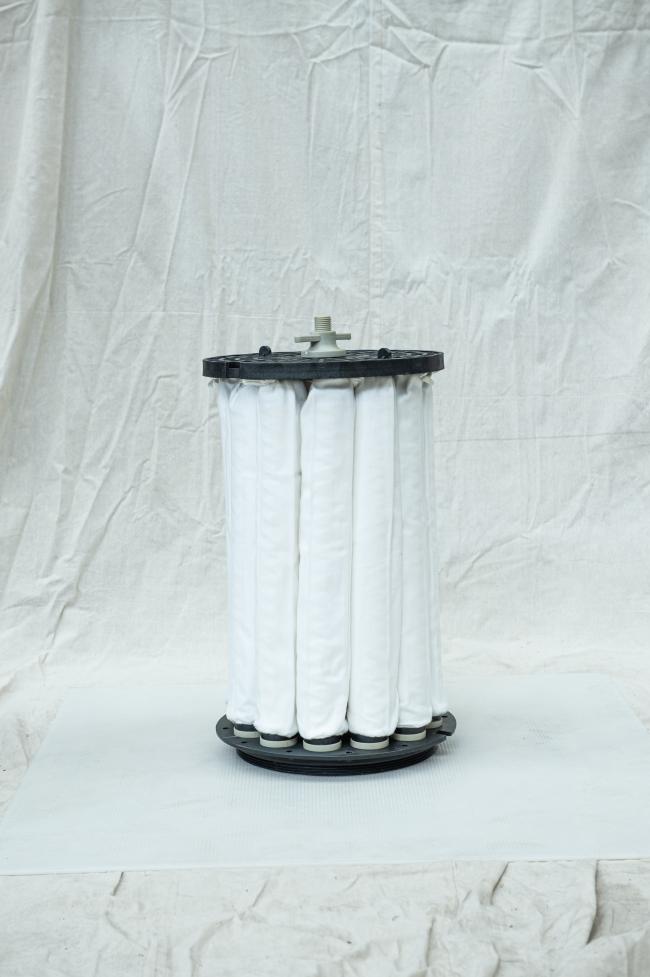

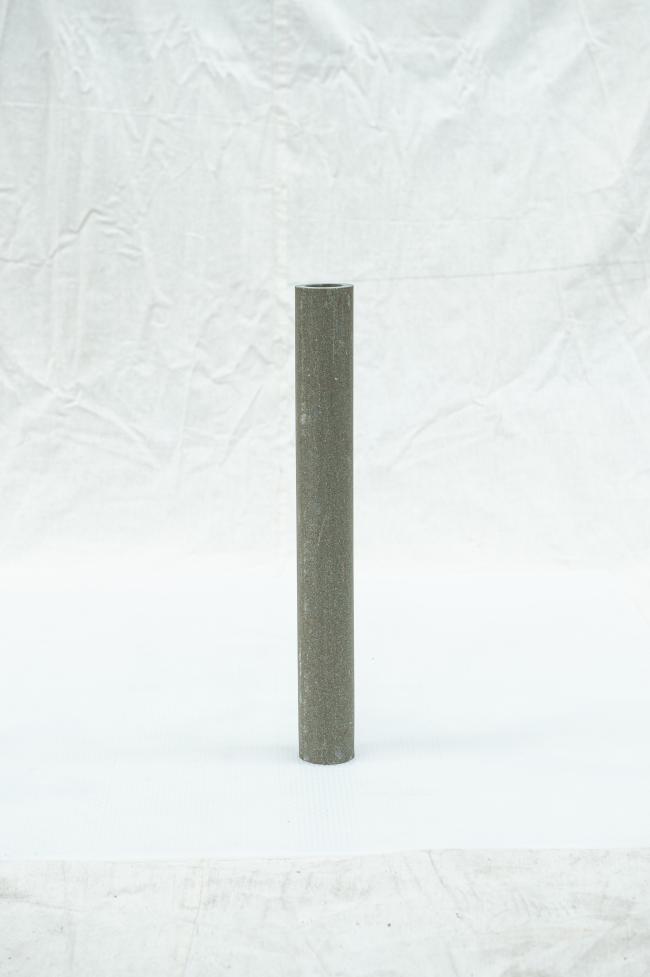

4. Lock filter element type of filter materials is adopted with good sealing performance； no metal texture is exposed to liquid in the filter body.
5. Standard accessories:foot valve, flange and flange gasket and screw.
Parameters of Industrial Liquid Filter:
|
Model |
L |
W |
H |
D |
|
CB2004 |
455.0 |
345.0 |
1180.0 |
220.0 |
|
CB2006 |
680.0 |
400.0 |
1460.0 |
280.0 |
|
CB2008 |
680.0 |
455.0 |
1490.0 |
315.0 |
|
CB2012 |
680.0 |
455.0 |
1490.0 |
350.0 |
|
CB2018 |
700.0 |
560.0 |
1540.0 |
450.0 |
|
Model |
Fter Material |
Filter Area (m2) |
Filter Capacity (I/min) |
Plating Tank Volume(I) |
Temperature ( ≤° C) |
Pump Diameter POWER(HP) (in-out)inch |
Weight(kg) |
|
|
CB2004 |
20"x4 |
1 |
80 |
0.6 |
65 |
0.3 |
1"x1" |
40 |
|
CB2006 |
20"x6 |
1.5 |
160 |
1-2 |
65 |
1 |
1.5"x1.5" |
90 |
|
CB2008 |
20"x8 |
2 |
240 |
1-3 |
65 |
1 |
1.5"x1.5" |
100 |
|
CB2012 |
20"x12 |
3 |
330 |
2-4 |
65 |
2 |
1.5"x1.5" |
100 |
|
CB2018 |
20"x18 |
4.5 |
375 |
4-6 |
65 |
3 |
2"x2" |
130 |
Applications of chromic acid filtration:
The filter is applicable for circulating filtration of chromic acid plating solution.
The maximum working temperature shall not exceed 60℃.
The filter’s vat part adopts PVC and the pump parts adopts PVDF.
The filter medium part adopts the locking nut design with good airtightness. Its filtration area is wide and there are no metal components for those contacting the liquid medicine.
FAQ
Q1:What is your lead time?
A1: Dear Sir/ Madam, for each model, we keep about 20 sets for the power lower than 3.7kw. for bigger power pumps and filters, please ask our sales directly. Thank you.
Q2: What is your warranty time?
A2: Our pumps and filters, standard warranty time is one year.
Q3: Does your pumps have continuous operation ability?
A3: Yes, sure. Our pumps and filters can run continuously.
