Intermediate Frequency Induction Heating Machine For Metal Forging and Melting 120KW

Main characteristics:

1.With high frequency up to 150KHZ , and very thin and tiny parts can be easily heated.

2.IGBT and current inverting technologies have been used; higher reliability and lower maintenace cost.

3.100% duty cycle, continuous working is allowed at maximum power output.

4.Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;

5.Display of heating power and heating current and oscillating frequency.

6.Simple to install , installation can be done by unprofessional person very easily;

7.Light weight, small size;

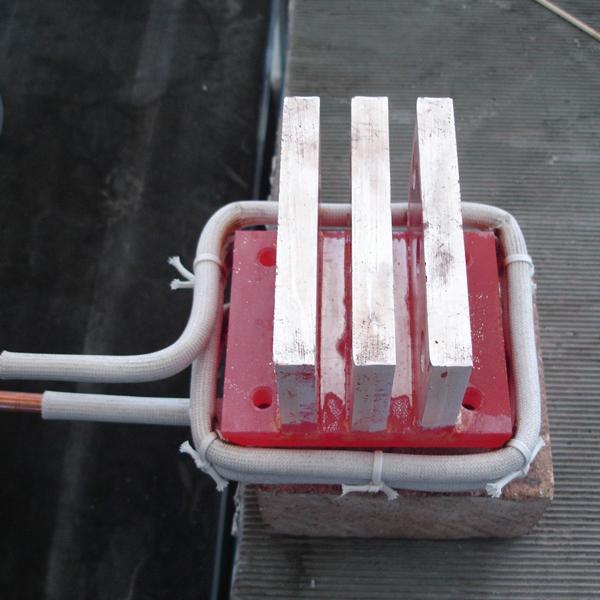

8.different shape and size of induction coil can be changed easily to heat different parts.

9.Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.

Technical parameters:

Main applications:

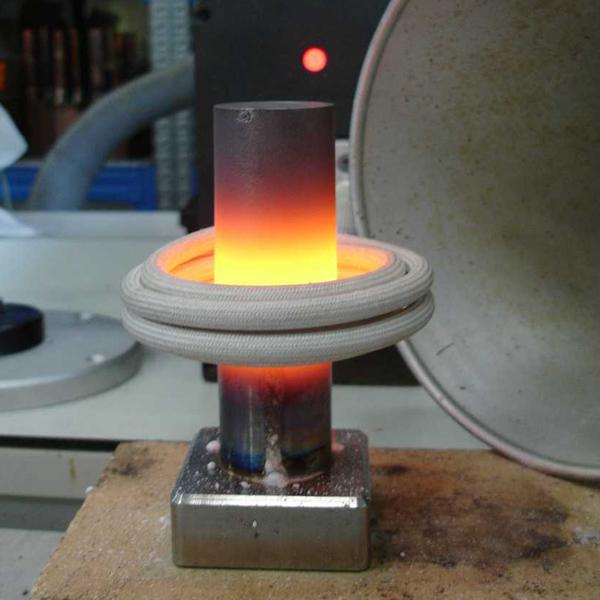

Medium frequency machines are usually used in the penetration heating occasions, for example, rod heating for forging rod end heating

Melting of almost all kinds of metals

Heating of stators or rotors for fitting

Heating of tube end for extrusion

Heating of moulds deep quenching of shafts and gears tempering or preheating of weld joint and so on
