Super Thin 5T Wheel Alignment Scissor Lift 2000mm Big Scissor Lift

 Super-thin wheel alignment scissor lift features:

1) Designed as super-thin structure to maximize your workshop.
2) Independent control box, low voltage control, good safety performance.
3) Hydraulic volume synchronous oil cylinder, synchronized and stable operation of platform.
4) Adopt the double safety device of hydraulic lock and mechanical double-tooth insurance claw, drop automatically, through the locking operation, make insurance claw to achieve Reverse-backing positioning, safe and reliable.
5) Adopt hydraulic failure and overload safety valve protection.
6) Adopt throttle device of oil route, when oil pipe is bursting, the machine will not drop fast.
7) Adopt the oil-free super wear-resistant material sliding block.
8) Adopt the Italy, Germany, Japan and other high-quality hydraulic, electrical components.
9) Adopt the integral type base; strengthen the capability of horizontal adjustment, horizontal accuracy can be adjusted accurately, especially suitable for for-wheel location detection.
10) Adopt emergency manual lowering device in the power failure.
11) Receive 115% dynamic and 150% static testing.
12) Accord with standard of European Union CE.

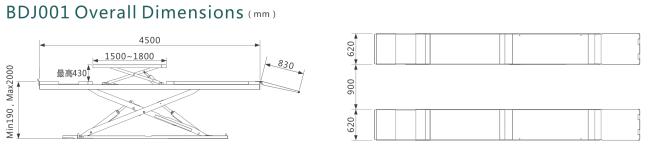

Super-thin wheel alignment scissor lift technical specification:

Product details:

Product Features
Super low profile and perfect for ground mounted;
Suitabble for any alignment turntable;
The main hydraulic components of the manchine are assembled by international high quality inported parts.
The use of hidden scissors super Low structure, no construction pit ,small footprint.
Cylinder 2-year warranty,quality assurance period of pressure relief oil free replacement cylinder
