1600mm Diameter 1500kg Truck Tire Changing Machine Automatic
Truck tire changer TC-830 / truck tyre changer / tire changing machine / tyre machine
Truck tire changer features:

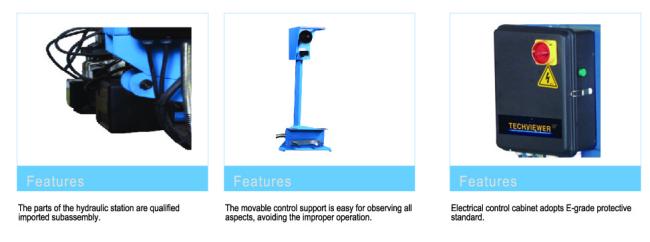

1) The parts of the hydraulic station are qualified imported subasssembly.
2) The main motor and its correlative elective parts accord with the CE standard.
3) Lifting arm oil tank has the center support.
4) The movable control support is easy for observing all aspects, avoiding the improper operation.
5) Electrical control cabinet adopts E=grade protective standard.
6) The gear box is the made of aluminum alloy castings, high density, light weight, good-looking,
anti-corrosion, and well sales.
7) The worm gear is made of tin &bronze alloy, high density, anti-wear, anti-corrosion, and long life in use.
Truck tire changer technical specification:
| Model | TC-830 | TC-850 |
| Operating pressure | 130-150bar | 130-150bar |

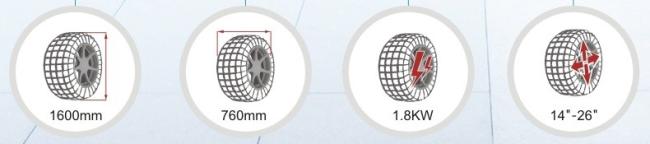

| Max wheel diameter | 1600mm | 2300mm |
| Max wheel width | 760mm | 1100mm |
| Max wheel weight | 1500kg | 1800kg |
| Rim diameter | 14'-26' | 14'-42' |
| Hydraulic pump motor | 1.5kw 380V/50hz/3ph | 1.5kw 380V/50hz/3ph |
| Gearbox motor | 1.8kw 380V/50hz/3ph | 2.4kw 380V/50hz/3ph |
| Noise level | <75db | <75db |
| Net weight | 585kg | 987kg |
| Gross weight | 795kg | 1252kg |

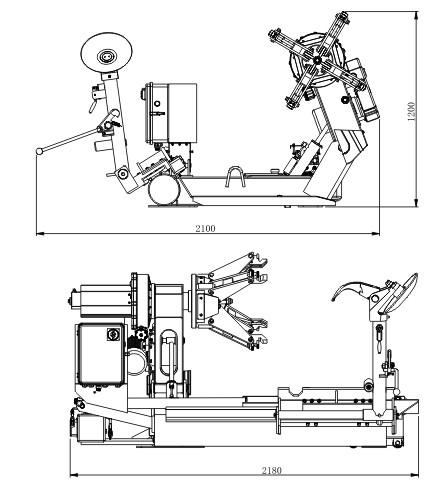

| Packing size | 2100*1650*930mm | 2280*2070*1070mm |
| Volume | 3.2CBM | 5CBM |
Product details:
