Cold Draw Super Alloy Pipe Tube Monel 400 With Polish Bright Surface
Product Description
Monel400 (UNS N04400,NCu30) Monel 400 alloy organization for the high-strength single-phase solid solution,it is a maximum dosage,the most versatile, excellent performance of the corrosion resistance alloy.This alloy in the hydrofluoric acid and fluorine gas medium with high quality corrosion resistance, the hot alkali solution also has excellent corrosion resistance. At the same time also resistant to neutral solution, water, sea water, the atmosphere, organic compounds such as corrosion. An important feature of the alloy is that it does not generally produce stress corrosion cracking, and the cutting performance is good.
The alloy has excellent corrosion resistance in fluorine, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives. At the same time in the sea than the copper-based alloy more corrosion resistance.
Acid medium: M400 in the concentration of less than 85% of sulfuric acid are corrosion resistant. M400 is one of the few important materials in durable hydrofluoric acid.
water corrosion: M400 alloy corrosion in most cases, not only excellent corrosion resistance, and pitting corrosion, stress corrosion, etc. rarely found, corrosion rate of less than 0.25mm / a.
high temperature corrosion: M400 continuous work in the air the maximum temperature is generally around 600 temper, in high temperature steam, corrosion rate of less than 0.026mm / a.
Ammonia: As the Monel 400 alloy nickel content is high, it can be resistant to 585 temper below the ammonia and ammonia under the conditions of corrosion
| Ni | Cu | Fe | C | Mn | S | Si | Al | Ti | |
| Monel 400 | The balance | 28.0-34.0 | 2.5 | 0.3 | 2.0 | 0.024 | 0.5 | ||
| Monel K500 | More than 63.0 | 27.0-33.0 | 2.0 | 0.25 | 1.5 | 0.01 | 0.5 | 2.3-3.15 | 0.35-0.85 |
1.Super Alloy Monel 400/2.4360 Nickel Alloy Bar
2.Material Grade:
Inconel600/601/625/718/X-750/713C,
Incoloy800H/800/901/925/926/A286
Hastelloy B/B-2/C-4/C-22/C-276,
Monel400/K500,Nickel200/201
N02200/N02201/N04400/N05500/N06600/N06601/
N06625/N06690/N07718/N07750/N08800/N08810/
N08825/N09925/N10001/N10665/N06455/N06022/
N10276/N06200/N08020/S66286/K93600/N08367/N06059/N08904.
MP35N.etc
3.Standard: ASTM BS JIS NF DIN GB
4.Size: for the hot rolled bar, 8mm-100mm
For the forged bar, 70mm-400mm
5.Length: 500--6000mm,or other length as the customers' requirements.
6.Process: hot rolled, forged, cold drawn
7.Surface: black surface, polished surface
Product Range
We have
1. Inconel series: Inconel600, Inconel 601, Inconel 625, Inconel690,Inconel718, InconelX-750, Inconel713C,Inconel738LC,N0660,N06601,N06625,N06690,N07718,N07750,2.4816,2.4851,2.4856,2.4642,2.4668,etc,
2.Incoloy series: Incoloy800H, Incoloy800, Incoloy800HT,Incoloy825,Incoloy901, Incoloy925, Incoloy926,A286,N08800,N08810,N08811,N08825,N09925,N08926,1.4980,1.4876,2.4858,1.4529,etc
3.Hastelloy series: HastelloyB, Hastelloy B-2, Hastelloy C-4, Hastelloy C-22, Hastelloy C-276, HastelloyC2000,HastelloyX,N10001,N10665,N06455,N06022,N10276,N06200,N06002,2.4617,2.4610,2.4602,2.4819,2.4675,2.4665,etc
4.Monel series:Monel400, Monel K500, N04400,N05500,2.4360,2.4375,etc
5.Pure Nickel series: Nickel200, Nickel 201, Nickel270,N02200,N02201,N02270,2.4060,2.4061,etc
6.Nitronicseries:Nitronic50,Nitronic60,Nitronic80,Nitronic105,Nitronic115,S20910,S21800,XM-19,Alloy218,etc
7.Alloyseries:Alloy20,Alloy20CB3,Alloy28,Alloy31,Alloy59,N08020,N08028,N08031,N06059,2.4605,2.4660,1.4562,etc
8. GH series:GH4169, GH4145, GH4105, GH4049, GH4033, GH4043,4180, GH3030, GH3536, GH3128, GH2132, GH1131,etc
9.MP35N
What is the density of nickel?
The density of nickel is 8.902.
What is the melting point of nickel?
The melting point of nickel is 1453 degrees
Applications for industrial :
1.Nuclear power,
2.Environmental protection,
3.Aerospace,
4.Chemical enterprises,
5. Oil drilling,
6.Desulfurization and denitrification,
7. Nuclear submarine,
8.others

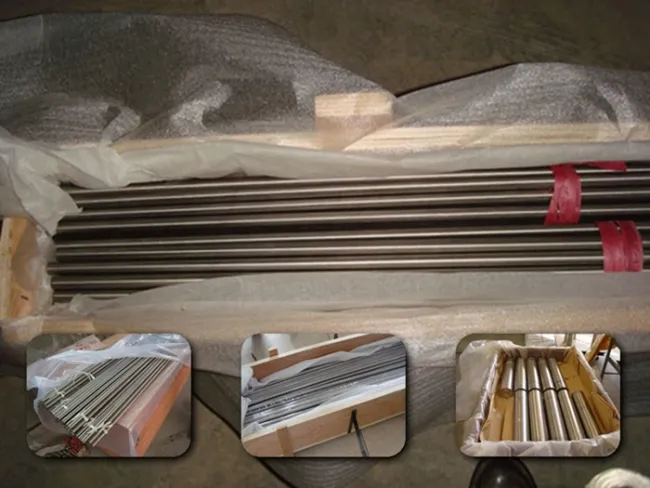

Packing
Standard export packing, or as the customers' requirement
