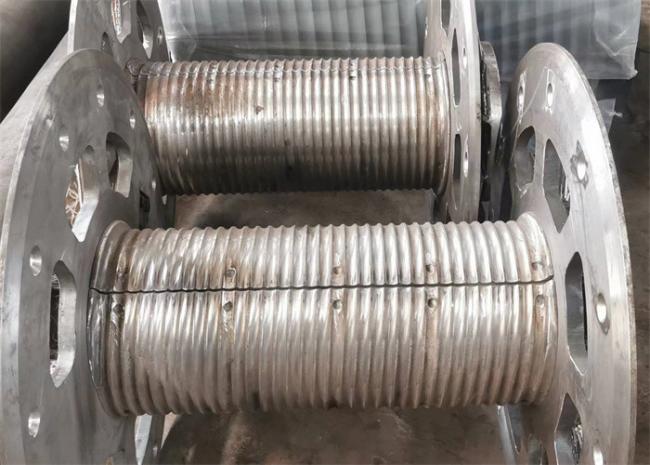

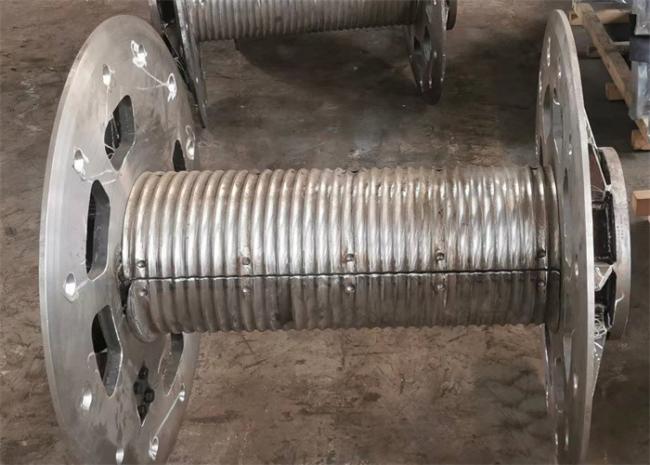

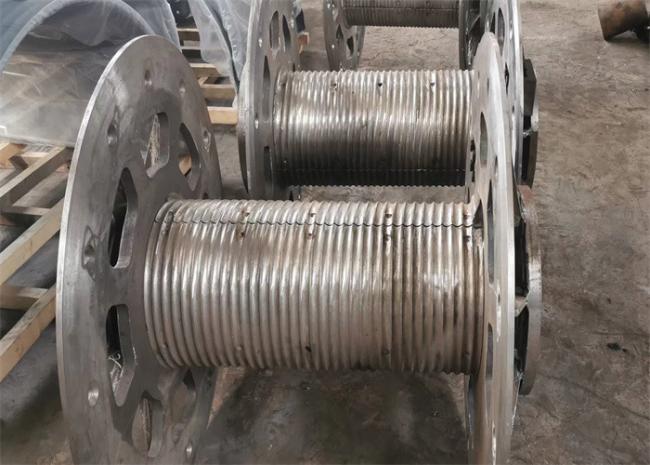

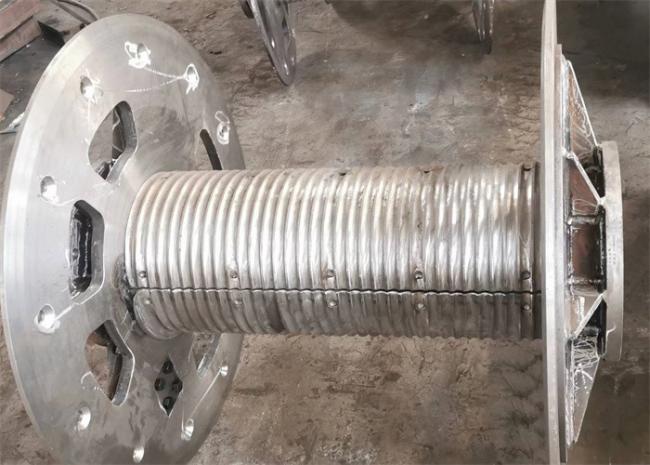

Wire Rope/Cable Winch Drum Fixed Q355B Lebus Sleeves, Plug Welding
Wire Rope/Cable Winch Drum Fixed Q355B Lebus Sleeves, Plug Welding
| Drum Quantity | singel |
| Drum Design | With lebus sleeves |
| Material | Q355B |
| rope capacity | 200m |
| Application Range | rig drawwork |
| Power Source | Electric and hydraulic |
| External processing | galvanized |
| Machining | CNC machining center |
The Lebus cable groove winch developed by our company solves the following problems
1. The steel wire rope can be wrapped in multiple layers without disorderly rope;
2. Wire rope winding speed is not restricted;
3. The load is evenly distributed between the wire ropes;
4. Under the condition of load, no rope biting or rope skipping between the wire ropes;
5. Reduce the damage of wire rope and improve the safety;
6. Reduce the downtime of wire rope replacement, greatly improve the work efficiency.
After using a large number of data sheet: prolong the service life of wire rope more than 500%.
| No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
| 1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
| 2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
| 3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
| 4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
| 5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
| 6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
a.Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch, etc
b,The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailer mounted pumping unit winch , Logging winch, etc
c.Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydraulic winch, etc
d. The construction machinery: Building wipe wall winch, Winding hoist, Windlass, etc
e. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch, etc
f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc
