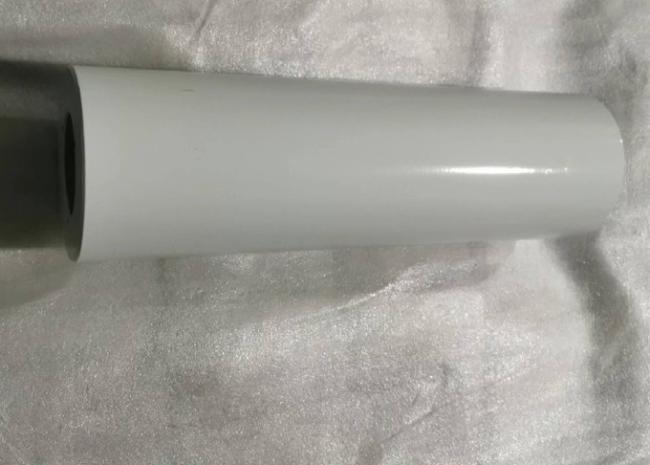

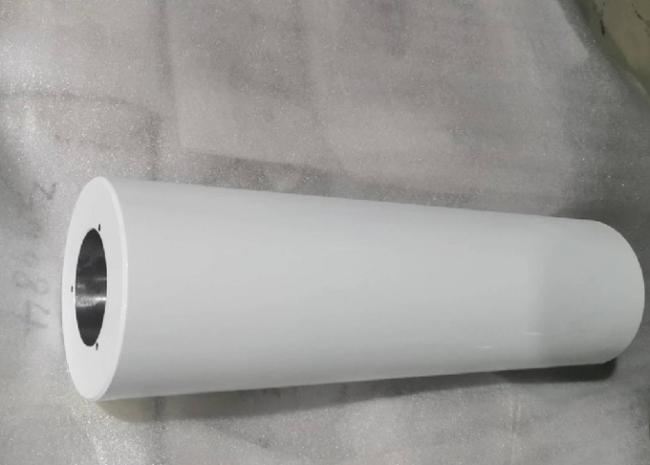

Stainless Steel 1.4404 Material Large Marine Winch Parts Shaft Support
Stainless Steel 1.4404 Material Shaft - Support for Marine Large Winch
Product feature
Product name: Stainless Steel 1.4404 Material Shaft - Support For Marine Large Winch
Other name: Marine Winch shaft- support
Standard: NS-ISO 2768mK
Sling type: cable or wire
power: Electirc
colour: Inerthane 990 Blue white
Rope: 100-1000mm
Rope diameter: 3-199mm
Tolerance General: NS-ISO 2768mK
Our company mainly serves lifting machinery, marine machinery, petroleum machinery, water conservancy machinery, We can produce winches and all steel parts for winches.
2. Our products are used for general lifting, hauling and other works in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery and etc.
3. Products are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.
4. High starting& working efficiency.
5. Reliable operation with little noise.
| Q/TY | ITEM | DESCRIPTION | TECHNICAL DESCRIPTION | MATERIAL | MASS | |
| 1 | 1 | Plate | PL30 | S355J2+N | 12.11KG | |
| 1 | 2 | Plate | PL25 | S355J2+N | 1281.01KG | |
| 1 | 3 | Plate | PL25 | S355J2+N | 1278.71KG | |
| 1 | 4 | Plate | PL20 | S355J2+N | 519.77KG | |
| 1 | 5 | Plate | PL20 | S355J2+N | 483.92KG | |
| 1 | 6 | Plate | PL20 | S355J2+N | 322.17KG | |
| 2 | 7 | Plate | PL20 | S355J2+N | 216.29KG | |
| 1 | 8 | Plate | PL15 | S355J2+N | 10.46KG | |
| 1 | 9 | Plate | PL15 | S355J2+N | 23.96KG | |
| 1 | 10 | Plate | PL15 | S355J2+N | 16.1KG | |
| 6 | 11 | Plate | PL15 | S355J2+N | 7.53KG | |
| 1 | 12 | Plate | PL15 | S355J2+N | 237.56KG | |
| 11 | 13 | Plate | PL15 | S355J2+N | 14.68KG | |
| 1 | 14 | Plate | PL10 | S355J2+N | 51.41KG | |
| 1 | 15 | Tube,Circular | 660*520*4460 | S355J2H+N | 4548.39KG | |
| 2 | 16 | Bar,Circular | S355J2+N | 0.79KG |
Cutting and beveling of materials shall be carried out by thermal cutting or machining.
Thermally cut edges shall be ground to sound metal before welding.
All sharp edges, corners and Curing Zone must be rounded to R=2.5mm.
Stainless steel shall by ground, and then acid treated and cleaned before use.
Welding spatter, beads and slag should be completely removed. Surface damage is filled and grinded flush.
Test temperature and charpy V-notch impact energy shall be in accoradance with DNV lifting appliances No.2.22. values for plates in primary and essential welded steel structure is listed in table below:
| Yield stress Re(MPa) | Thichness(mm) | temp(°C) | Impact energy(J) |
| 355 | 6< t ≤ 25 | 0 | 34 |
| 25< t ≤ 50 | -20 | 34 | |
| 50< t ≤ 70-40 | -40 | 41 | |
| 70< t ≤ 150 | -40 | 50 | |
| 690 | 6< t ≤ 25 | 0 | 46 |
| 6< t ≤ 25 | -20 | 46 | |
| 50< t ≤ 70 | -40 | 46 |
