Q355D Marine Winch Accessories Bracket-Bearing For Winch Rope Lifing And Down

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 30 to 40 working days, depends on order amounts and specification

Brand: LBS

Product Description

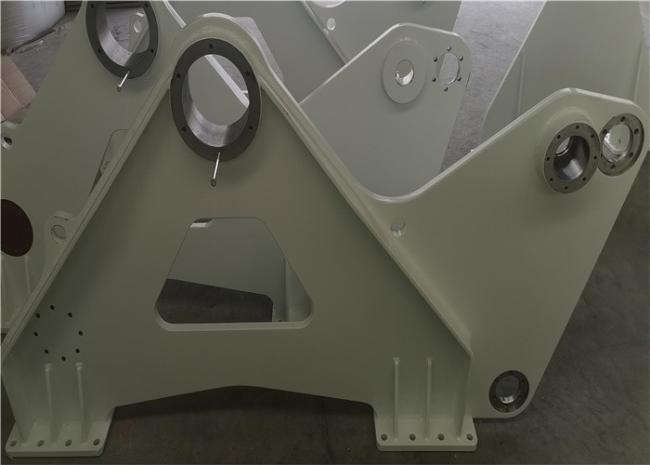

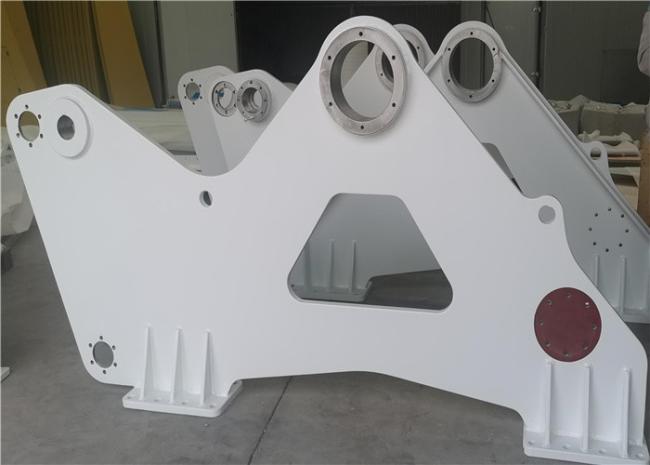

Q355D Marine Crane Equipment Parts Bracket -Bearing For Winch Rope Lifing And Down

Product feature

Product name: Q355D Marine Crane Equipment Parts Bracket -Bearing For Winch Rope Lifing And Down

Other name: Marine Winch bracket-bearing.

Standard: NS-ISO 2768mK

Sling type: cable or wire

power: Electirc

colour: Inerthane 990 Blue white

Rope: 100-1000mm

Rope diameter: 3-199mm

Tolerance General: NS-ISO 2768mK

Our company mainly serves lifting machinery, marine machinery, petroleum machinery, water conservancy machinery, We can produce winches and all steel parts for winches.

Other Features

1. Our products have the advantages of compact structure, light weight, safe and easy to operate.
2. Our products are used for general lifting, hauling and other works in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery and etc.
3. Products are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.
4. High starting& working efficiency.
5. Reliable operation with little noise.

Structural composition

Q/TY	ITEM	DESCRIPTION	TECHNICAL DESCRIPTION	MATERIAL	MASS
1	1	Plate	PL30	S355J2+N	146.68KG
2	2	Plate	PL25	S355J2+N	11.23KG
1	3	Plate	PL25	S355J2+N	18.63KG
1	4	Plate	PL20	S355J2+N	18.63KG
2	5	Plate	PL20	S355J2+N	4.25KG
1	6	Tube square	w300* H300 T12 L1250	S355J2H	26.26KG

Welding requirement

No parts shall be let unwelded unless clearly tsated on the drawing, for efficient and easy access it is recommended that sharp edges (that are not to be welded) are rounded to minimum R2.5 before assembling parts.

Finishing requirement

To ensure sufficient adhession for surface treatment all sarp edges shall be rounded to minimum R2.5, welding spatter beads and slag shall be completely removed, damaging in surfaces shall be filed and grinded flush, negative thickness measurements are prohibited.

Techinical parameters:

Test temperature and charpy V-notch impact energy shall be in accoradance with DNV lifting appliances No.2.22. values for plates in primary and essential welded steel structure is listed in table below:

Yield stress Re(MPa)	Thichness(mm)	temp(°C)	Impact energy(J)
355	6< t ≤ 25	0	34
	25< t ≤ 50	-20	34
	50< t ≤ 70-40	-40	41
	70< t ≤ 150	-40	50
690	6< t ≤ 25	0	46
	6< t ≤ 25	-20	46
	50< t ≤ 70	-40	46
