Wire Rope Alloy Aluminium Winch Lebus Drum For Pier Operation Mooring Winch
Wire Rope Alloy Aluminium Winch Lebus Drum For Pier Operation Mooring Winch
Product material:
Polymer nylon, carbon steel, alloy steel, aluminum, all kinds of high-strength steel Q390 Q420 Q460 Q690 A709Gr50 S420N S460N SM490B DH32 AH36 DH36 NM500, etc
Supply standard: GB, American Standard AISI, ASME, ASTM, Japanese standard JIS / German standard DIN, standard NF, British standard BS, European standard EN, etc.
Shipboard has been certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR, etc.
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) |
Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane, Marine crane,Mooring winch |
Processing equipment:
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment
LBS Sleeve working Temperature:
-25~+40 Centigrad
Winch grooved sleeves:
LBS grooved sleeves can be placed over smooth and ungrooved drums – suitable for modification or replacement of drum. It is usually cheaper to replace a worn out sleeve instead of replacing or repairing the complete drum assembly.
Split-sleeve system structure:
Split-sleeve consists of a pair of outer shells that are bolted or welded onto a smooth drum,The split sleeve is composed of spiral groove and parallel groove, the groove design conforms to the specified wire rope structure, diameter and length.Compared with cordless groove (smooth) drum and helical groove drum.
LBS grooved drum has obvious advantages in multilayer spooling. It can be widely used in the heavy lifting and compact working conditions.
system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, extend the service life of wire rope can be more than 500%, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.
| Product name | Wire Rope Alloy Aluminium Winch Drums Lebus Shells For Pier Operation |
| Drum Quantity | Single Or Double |
| Drum Design | LBS Groove Or Spiral Groove |
| Material | Carbon Stainless And Alloy Steels |
| Size | Customization |
| Application Range | Construction Mining Terminal operation |
| Power Source | Electric and hydraulic |
| Rope Capacity | 100~300M |

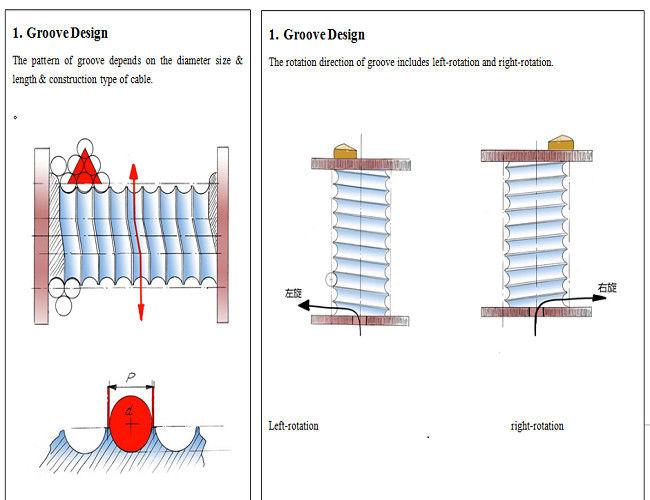

Groove design
About us
Shijiazhuang Junzhong Machinery Manufacturing Co., Ltd. was established in 2010 with a registered capital of 18 million yuan.
The company is a long-term engaged in cable retracting system of scientific and technological production enterprises in the multi-layer winding of wire rope has a profound foundation and production experience.
As early as 2010, the company obtained the utility model patent certificate suitable for multi-layer winding double folding cable groove, and registered the LBS trademark in 2013.
Passed iso9001:2015 quality management system certification in 2017;
In 2018, it passed the GJB9001C-2017 weapon equipment quality management system certification.
