RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA
Price:
Negotiable
MOQ:
1
Delivery Time:
As per quantity required
Brand:
Tain turbo
Product Description
RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA
Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo |
|
The turbocharger cartridge comprises a center housing defining a bore therethrough, bearings housed
in the bore, a shaft rotatably supported in the bearings, a compressor wheel affixed to one end of the
shaft and a turbine wheel affixed to an opposite end of the shaft.
PRODUCT DETAIL
|
Model
|
RHV4 |
|
Turbo No.
|
VJ36 VJ37 |
|
Chra No.
|
VJ36 |
|
OE No.
|
RF7K13700
VHA20012
RF7J1370
|
|
Condition
|
Brand new with safe package |
|
Balancing Test
|
<0.5Mg.mm / 150000RPM |
APPLICATION
| Part number | BRAND VEHICLE | Model | Year | Engine | POWER | CC |
| VJ36/RF7J13700D/ VHA20012 | Mazda | 3 2.0 CD | 01/2003 - | MZ-CD | 105 Kw | 2.0L |
| Mazda | 5 2.0 CD | 01/2003 - | MZ-CD | 105 Kw | 2.0L | |
| Mazda | 6 CD | 01/2003 - | MZ-CD | 104 Kw | 2.0L | |
| VJ37/RF7K13700/ RF7K.13.700 | Mazda | 5 2.0 CD | 03/2006 - | GG-GY | 81 Kw | 2.0L |
| Mazda | 5 2.0 CD | 03/2006 - | GG-GY | 90 Kw | 2.0L | |
| Mazda | 6 CD | 03/2006 - | GG-GY | 90 Kw | 2.0L |
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 44.5 | 34 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 34.5 | 47 | 6/6 |

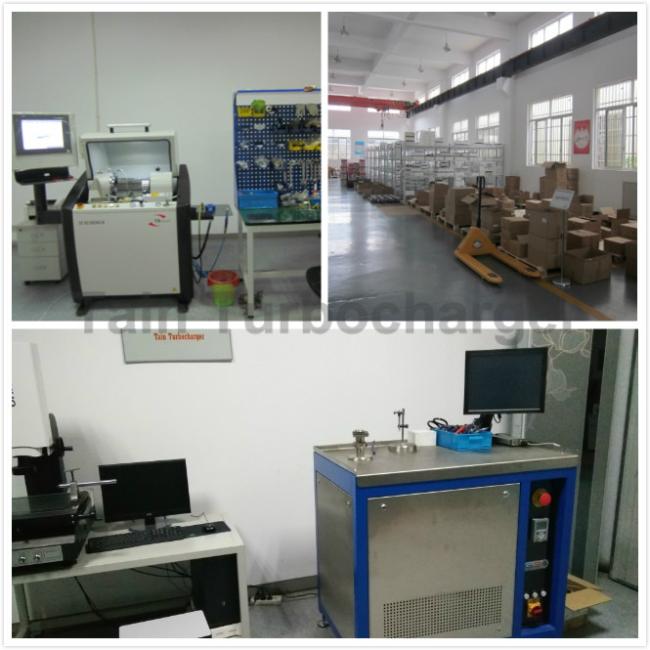

TECHNICAL TEAM
Our technical team was composed of one advanced engineer with 15 years of experience and four
engineers who are very professional in the turbocharger field. They are familiar with turbocharger systems and
product structure and dimension.
They are mainly responsible for source selection, quality control, dimension inspection, and product
development. Thanks to them, Tain Turbo currently can supply over 800 types of turbo cartridges and always keep
our product quality at a high level.
![]()
![]()
