Turbocharger Cartridge GT1749V 454231-0005 704505-0001 Chra
Turbocharger Cartridge GT1749V 454231-0005 704505-0001 Chra
DESCRIPTION
|
|
GT1749V |
|
Part No |
454231-0005 454231-0006 454231-0008 454231-0009 701854-0003 701845-5004S 701854-0004 454231-0010 704505-0001 701854-0001 701854-0002
|
|
|
433395-0039 / 703890-0130 |
|
|
028145702NV500 028145702N 028145702R 028145702L |
|
VEHICLE
|
Audi / VOLKSWAGEN / Seat / Skoda |
Balancing test : <0.5Mg.mm / 150000RPM
Condition: This is a high quality brand new CHRA (cartridge or core assembly) of a turbocharger for
forming or building up a complete turbo. It has been well balanced with safe package.
Package: anti-rust paper + plastic bag + PE foam + corrugated box
APPLICATION
| Application | Power | OEM | Engine Code |
| Audi A4 | 88HP | 028145702NV500 | ASV |
| Adui A6 | 88HP | 028145702NV500 | ASV |
| Volkswagen Caddy / Combi | 88HP | 028145702NV500 | ASV |
| Volkswagen Passat | 88HP | 028145702NV500 | ASV |
| Volkswagen Polo | 88HP | 028145702NV500 | ASV |
| Seat Leon TDI SE | 81KW | 028145702N | ASV |
| Audi A4 | 85KW | 028145702R | PD UI 100HP TDI 115 |
| Audi A6 | 85KW | 028145702L | PD UI 100HP TDI 115 |
| Skoda SuperB | 85KW | 038145702L | ATJ AJM AVB |
| Volkswagen Passat | 85KW | 038145702L | ATJ AJM AVB |
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 36 | 43 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 33 | 49 | 6/6 |
Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |

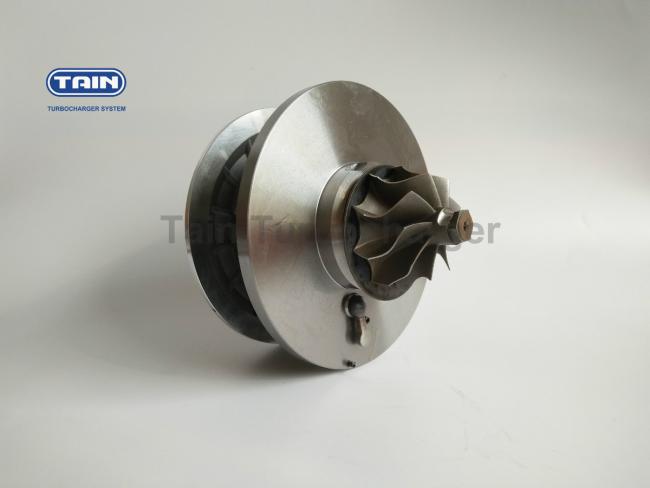

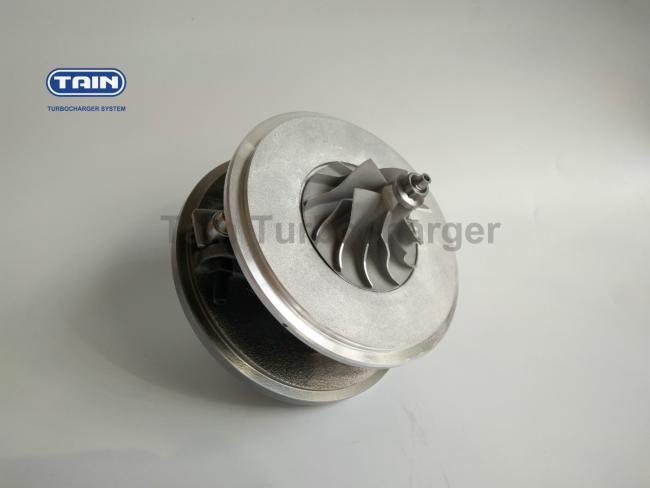

PRODUCT SHOW
WHAT WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
