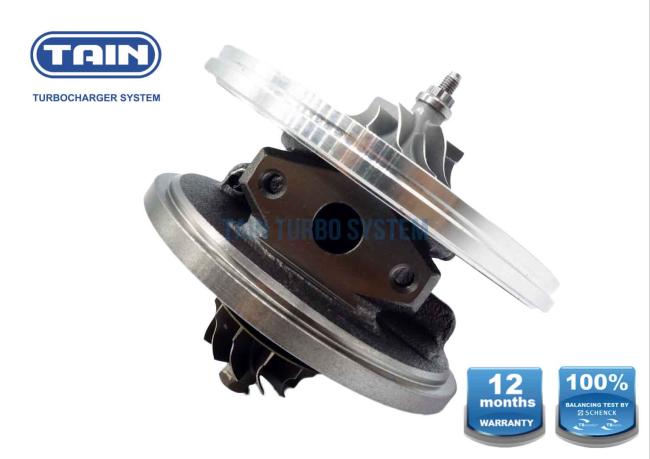

Turbocharger Cartridge 753420 740821 Chra Peugeot GT1544V
Turbocharger Cartridge 753420 740821 Chra Peugeot GT1544V
PRODUCTION DETAILS
TURBO NO.
740821-0001 740821-0002 750030-0001 750030-0002
753420-0002 753420-0003 753420-0004 753420-0005
762328-0001 762328-0002 762328-0003
CHRA No.
740821-0001
MODEL
GT1544V
OE No.
9663199280, 7804903, 11657804903, 9660641380, 9663199280, 9654128780
Balancing Test
<0.5Mg.mm / 150000RPM
Fit For Car
►Citroen C3 / C4 / C5 / Xsara Hdi
►FORD Focus TDCi
►MAZDA 3
►MINI Cooper D
►PEUGEOT 206 / 207 / 307 / 308 / 308 SW / 407 / 3008 Tdi / 5008 Hdi
► S40 Hdi / V50
Condition
►This is a high quality brand new CHRA (cartridge or core assembly) of a turbocharger.
►It is balancing tested with a qualified report.
►It is carefully tested,without damage and rust.
►It is carefully cleaned and packed with safety package.
APPLICATION
| Vehicle | Power | OEM | Engine Code |
| Citroen C3 | 1.6LD 109HP | 9663199280 | DV6TED4 9HZ |
| Citroen C4 | 1.6LD 109HP | 9663199280 | DV6TED4 9HZ |
| Citroen Xsara HDi | 1.6LD 110HP | 9663199280 | DV6TED4 |
| Citroen C5 | 1.6LD 109HP | 9663199280 | DV6TED4 9HY |
| FORD Focus TDCi | 1.6LD 108HP | 9663199280 | G8DA/B |
| FORD Focus C-Max | 1.6LD 113HP | 9663199280 | DV6TED4 |
| MAZDA 3 | 1.6LD 107HP | 9663199280 | Y601 DV6TED4 |
| MINI Cooper D | 1.6LD 107HP | 9663199280 | DV6 TED4 |
| PEUGEOT 206 | 1.6LD 110HP | 9663199280 | DV6TED4 |
| PEUGEOT 207 | 1.6LD 110HP | 9663199280 | DV6TED4 |
| PEUGEOT 307 | 1.6LD 110HP | 9663199280 | DV6TED4 9HY |
| PEUGEOT 308 | 1.6LD 110HP | 9663199280 | DV6TED4 |
| PEUGEOT 308 SW | 1.6LD 110HP | 9663199280 | DV6TED4 |
| PEUGEOT 407 | 1.6LD 110HP | 9663199280 | DV6TED4 9HY/9HZ |
| PEUGEOT 3008 Tdi | 1.6LD 110HP | 9663199280 | DV6TED4 9HZ |
| 5008 HDi | 1.6LD 110HP | 9663199280 | DV6TED4 |
| S40 HDi | 1.6LD 110HP | 9663199280 | D4164T |
| V50 | 1.6LD 107HP | 9663199280 | D4164T |
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
|
33.1 |
39 | 11 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 31.1 | 44 |
6/6 |
Material
► turbine wheel: K418
► compressor wheel: C355
► bearing house: HT250 Gary iron
PRODUCT SHOW
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
