Turbo Cartridge 756867 765261 756867-0001 Volkswagen Golf GT1646V Chra
Turbo Cartridge 756867 765261 756867-0001 Volkswagen Golf GT1646V Chra
765261
PRODUCT DESCRIPTION
►A CHRA (known as turbo cartridge) is the center housing rotating assembly of a turbocharger.
►A CHRA consists of a bearing house,turbine shaft,compressor wheel,back plate,heat shield
►All the other internal parts.All of our CHRAs are fully assembled and balanced by SCHENCK
TB-Sonio.
►Model:GT1646V
►Turbo No.:756867 765261
►Chra No.: 756867-0001
►OE No.: 03G253016H 03G253010V100
►Balancing Test: <0.5Mg.mm / 150000RPM
►Condition: Brand new with safety package
►Fit For Car: Audi A3 Tdi
Volkswagen Golf 2.0 / Passat / Eos / Jetta TDI / Touran TDI
Seat Toledo
Skoda Superb
►APPLICATION
| Turbo No. | Application | Power | OEM | Engine Code |
| 756867-0001 | Audi A3 Tdi 140 | 103KW | 03G253016H | DPF2 VAlVE Euro4 |
| Volkswagen Golf 2.0 DPF | 103KW | 03G253016H | DPF2 VAlVE Euro4 | |
| Volkswagen Passat 2.0 DPF | 103KW | 03G253016H | DPF2 VAlVE Euro4 | |
| Volkswagen Eos | 103KW | 03G253016H | DPF2 VAlVE Euro4 | |
| Volkswagen Jetta TDI 140 | 103KW | 03G253016H | DPF2 VAlVE Euro4 | |
| Volkswagen Touran TDI 140 | 103KW | 03G253016H | DPF2 VAlVE Euro4 | |
| Seat Toledo | 103KW | 03G253016H | DPF2 VAlVE Euro4 | |
| Skoda Superb | 103KW | 03G253010V100 | DPF2 VAlVE Euro4 |
► Fit turbocharger
756867-0001 / 756867-0002 / 756867-0003 765261-0002
765261-0003 765261-0004 765261-0005 765261-0006
765261-0007 765261-0008
►Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo |
|
►Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| WHAT WE SUPPLY |

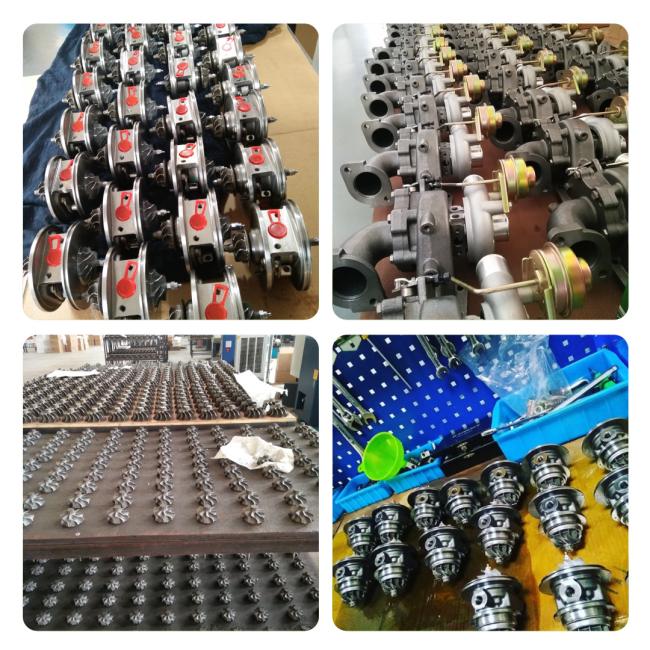

PRODUCT SHOW
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
