Turbocharger cartridge 454135-0003 703891-0020 059145701F Chra VW AUDI
Turbocharger cartridge 454135-0003 703891-0020 059145701F Chra VW AUDI
PRODUCT DESCRIPTION
TURBO NO
454135-0003 / 454135-0005 / 454135-0008 / 454135-0009 / 454135-0010 /454135-0012
454135-5003 / 454135-5005 / 454135-5008 / 454135-5009 / 454135-5010 / 454135-5012
CHRA No.
703891-0007 / 703891-0020 / 703891-0109 / 703891-0117
MODEL
GT2052V(S2)
OEM NO.
059145701C / 059145701D / 059145701E / 059145701F / 059145701K / 059145701S
Balancing Test
100% qualified
Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gary iron
APPLICATION
Audi A4/A6/A8 2.5L 110kw TDI V6
Skoda Superb 2.5L 110kw TDI V6
Volkswagen Passat 2.5L 110kw TDI V6
Turbine wheel & compressor wheel size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 47 | 38.7 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 38.6 | 52 | 6/6 |

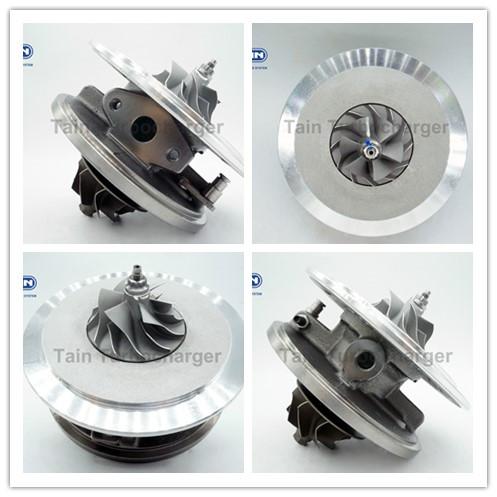

PRODUCT SHOW
PACKING INFORMATION
Inner packing: anti-rust paper,plastic bag,PE foam.
Outer packing: Neutral box,export carton with cushioning and shock proof packaging.
Supply customized package.
TECHNICIAl TEAM
Our technical team was composed by one advanced engineer with 15 years experience and four engineers who are very professional in this field.
They are familiar with turbocharger system and product structure and dimension. They are mainly responsible for source selection,quality control,dimension inspection and product development.
Thanks to them, currently we can supply over 300 types of turbo chras and always keep our producs quality in a high level.
