Turbocharger Cartridge TD03 49131-05212 6U3Q6K682AE Chra Fiat / FORD / Citroen
Turbocharger Cartridge TD03 49131-05212 6U3Q6K682AE Chra Fiat / FORD / Citroen
DESCRIPTION
Model: TD03L4
CHRA No. : 49131-08600 / 49131-08610
Turbo No.:
| 49131-05210 | 49131-05211 | 49131-05212 | 49131-05220 |
| 49131-05252 | 49131-05310 | 49131-05312 | 49131-05313 |
| 49131-05353 | 49131-05400 | 49131-05401 | 49131-05402 |
| 49131-05403 | 49131-05452 | 49131-06400 | 49131-15312 |
ENGINE No.:
6U3Q6K682AE / 6U3Q6K682AF / 9659765280 / 71993636 / 9486134
6C1Q-6K682CD/ 6C1Q-6K682CE / 6C1Q-6K682DE
Balancing Test : SCHENCK TB-Sonio
Condition: Brand new
Fitted Cars :
Fiat Ducato 100 Multijet 2.2LD 100HP HHJA/HHJB
Ford Transit 2.2 85HP
Ford Fiesta Focus C max
Citroen jumper / Exper
Peugeot Boxer
PSA peugeot / Citroen 2.2HDI 100 / 120hp
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 40.2 | 35.1 | 11 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 35 | 44 | 6/6 |
Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gary iron

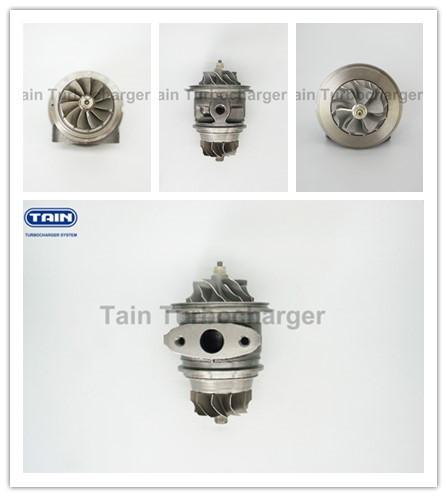

PRODUCT SHOW
TIAN TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years experience engineers and four engineers who are very professional in this field. They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension inspection and product development.Thanks to them,currently we can supply over 300 types of turbochras and always keep our products quality in a high level.
PACKING INFORMATION
Inner packing: anti-rust paper,plastic bag,PE foam.
Outer packing: Neutral box,export carton with cushioning and shock proof packaging.
Supply customized package.
