Turbocharger Cartridge RHF4 VJ38 VAD20021 MAZDA6 BT-50 Ford Ranger 3.0 TDCI
Turbocharger Cartridge RHF4 VJ38 VAD20021 MAZDA6 BT-50 Ford Ranger 3.0 TDCI
PRODUCT DESCRIPTION
Part NO.
VJ38, 144725, 1789132,4943873, 6M349G438AB,
6M349G438AC, RE6M349G438AC,WE01F, VAD20011,
VAD20021, VBD20011,VBD20021, VCD20011,
VCD20021, VDD20021,VED20011, VED20021,
VFD20011, VFD20021,VGD20011,VGD20021,
W0113700D,W0113700F.
MODEL
RHV4
Balancing Test
100% qualified
Material
turbine wheel: K418
compressor wheel: C355
APPLICATION
MAZDA6 BT-50 J97MU
Ford Ranger 3.0 TDCI WEAT,WL-T
Turbine wheel & compressor wheel size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 44.6 | 36 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
|
38.3
|
52.5 | 10 |
CHRA Balancing – A Critical Part in Turbocharger Repair

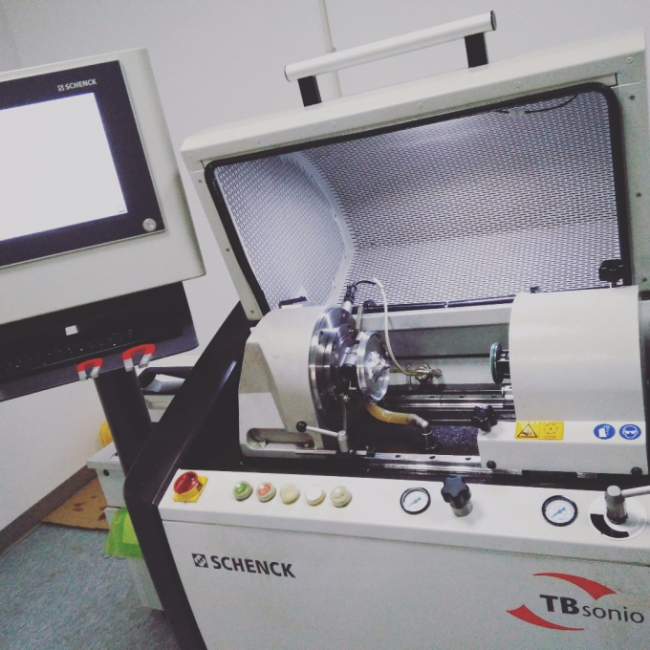

TAIN uses a set of SCHENCK balancing types of equipment including compressor wheel balancing
equipment, shaft balancing equipment, and SCHENCK TB Sonio, which help us to ensure the quality.
