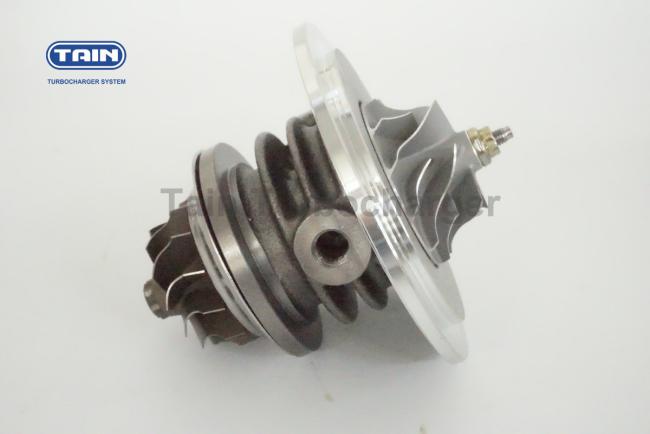

Turbocharger Chra 452191-0004 452191-0005 2674A372 2674A093 GT2052S
Turbocharger Chra 452191-0004 452191-0005 2674A372 2674A093 GT2052S
DESCRIPTION
—— Model :
GT2052S
—— Turbo No. :
452191-0004 , 452191-0005 , 452191-0006 , 452191-0007
452191-0008 , 452222-0002 , 452222-0003 , 452222-0004
452222-0006 , 452301-0001 , 452301-0003 , 727262-0002
727262-0003 , 727262-0004 , 727262-0006 , 727262-0007
727263-0001 , 727263-0002 , 727264-0003 , 727264-0004
727264-0005 , 727264-0006 , 727264-0007 , 727264-0008
727264-0009 , 727265-0001 , 727265-0002 , 727265-0003
727266-0001 , 727266-0002 , 727266-0003
—— OE NO. :
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 47 | 40 | 12 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 36.8 | 52 | 6/6 |
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
TIAN TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years
experience engineers and four engineers who are very professional in this field.
They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension
inspection and product development.Thanks to them,currently we can supply over
300 types of turbochras and always keep our products quality in a high level.
