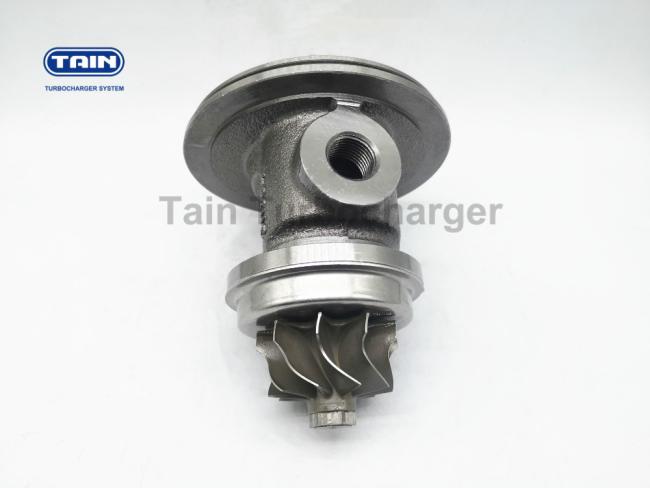

Turbocharger Chra Turbo Core 311612 312470 319246 S1A / S1B
Turbocharger Chra Turbo Core 311612 312470 319246 S1A / S1B
DESCRIPTION
—— Model :
S1A / S1B
—— Turbo No. :
311612 312114 312436 312470 312490 312491
312511 312527 312934 312935 313034 313202
313274 313360 313361 313363 313364 313365
313367 313368 313369 313511 313551 313732
313733 313810 313818 313834 314223 314224
314225 314328 314446 314464 314465 314466
314992 314993 314995 315501 315502 315503
315639 315640 315641 315647 315666 315845
315846 315847 315848 315853 315855 315856
315857 315858 315861 315862 315863 315864
315865 315867 315920 315921 316689 316690
316691 316692 317904 317905 317906 317908
317909 317910 317959 317960 319246 319247
319261 319338
—— OE NO. :
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
K.H.DEUTZ, STEYR D. PUCH, M.W.M., VALMET
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 47 | 40 | 12 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 34.2 | 48.5 | 6/6 |
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
TIAN TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years
experience engineers and four engineers who are very professional in this field.
They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension
inspection and product development.Thanks to them,currently we can supply over
300 types of turbochras and always keep our products quality in a high level.
