Turbocharger Cartridge 729125-0007 761650-0001 Core Assembly For HONDA CR-V 2.2I-CTDI / FR-V 2.2I-CTDI / ACCORD 2

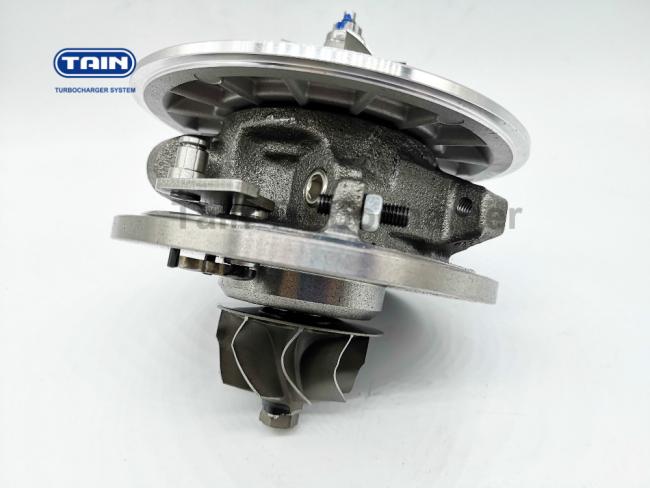

Turbocharger Cartridge 729125-0007 761650-0001 Core Assembly
HONDA CR-V 2.2I-CTDI / FR-V 2.2I-CTDI / ACCORD 2.2I-CTDI 103KW
PRODUCTION DETAILS
TURBO NO.
729125-0007 729125-0008 729125-0009 729125-0012
729125-0013 753707-0009 753708-0001 753708-0005
759394-0002 761650-0001
CHRA No.
729125-0007
MODEL
GT1752V
OE No.
18900-RBD-E010M2
Balancing Test
<0.5Mg.mm / 150000RPM
Fitted Cars
HONDA CR-V 2.2I-CTDI 103KW 2005-2007
HONDA FR-V 2.2I-CTDI 103KW 2005-2007
HONDA ACCORD 2.2I-CTDI 103KW 2002-2008
Condition
►This is a high quality brand new CHRA (cartridge or core assembly) of a turbocharger.
►It is balancing tested with a qualified report.
►It is carefully tested,without damage and rust.
►It is carefully cleaned and packed with safety package.
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
|
43 |
38.7 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 38.6 | 52 |
5/5 |
Material
► turbine wheel: K418
► compressor wheel: C355
► bearing house: HT250 Gray iron
PRODUCT SHOW
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
