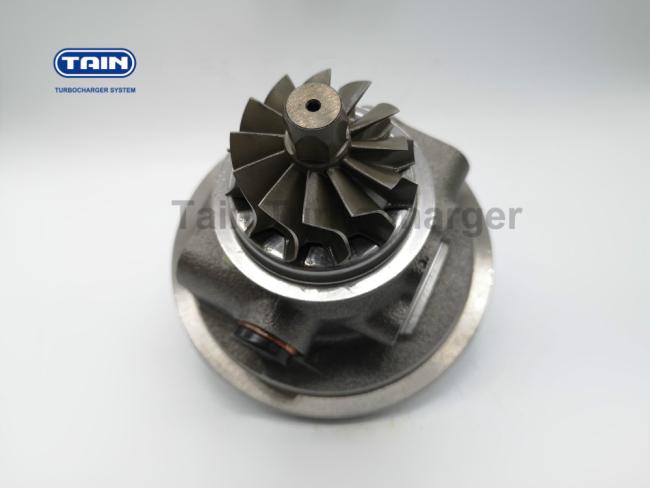

Turbocharger Cartridge 53049700020 53049700022 For AUDI / VW TT Quattro 225hp 1.8L -5V Quer / Transversal
Turbocharger cartridge 53049700020 53049700022 for AUDI/VW TT Quattro 225hp 1.8L-5V quer/transversal
PRODUCTION DETAILS
TURBO NO.
53049700020 . 53049700022 . 53049700023
MODEL
K04
Balancing Test
<0.5Mg.mm / 150000RPM
Fitted Cars
AUDI/VW TT Quattro 225hp 1.8L-5V quer/transversal
Condition
►This is a high quality brand new CHRA (cartridge or core assembly) of a turbocharger.
►It is balancing tested with a qualified report.
►It is carefully tested,without damage and rust.
►It is carefully cleaned and packed with safety package.
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
|
50 |
42 | 12 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 41.6 | 59 |
4/4 |
Material
► turbine wheel: K418
► compressor wheel: C355
► bearing house: HT250 Gray iron
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
