434533-0012 Turbine Wheel Shaft 43*37.5 For 708639 / 714467 Volkswagen Golf TDI

Shaft Wheels GT/ VNT15-25 701470 / 703672 / 703673 / 71466 for Volkswagen Golf TDI turbocharger

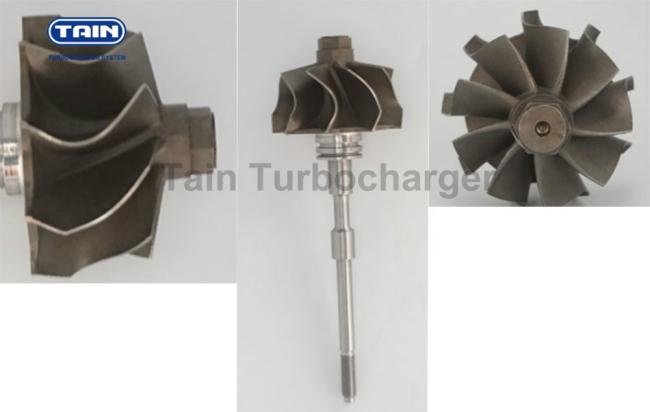

 Turbine wheel shaft

The turbine wheel is one of the most important parts of a turbocharger.It is resposible to transform the

energy from an engine’s exhaust gases into kinetic energy.As the turbine wheel rotates, it spins the

turbine shaft, which in turn spins the compressor wheel.When it works,it always be in a high temperature

environment.So the only material can be selected to manufacturer turbine wheel is the Inconel austenitic

nickel-chromium-iron alloy,a high strength investment casting.The materials now in wide use is K418.

   PRODUCT  DETAILS

Balanced Individual Piece (Recommend Assembly and Cartridge Balancing With Your Compressor Wheel )

►Model : GT/VNT  15-25


►Fitted Turbocharger :   708639-0002     708639-0003     708639-0004     708639-0005

                                                708639-0006     708639-0007     708639-0008     708639-0010

                                                 714467-0003     714467-0004     714467-0005     714467-0007

                                                 714467-0008     714467-0010     714467-0003     714467-0012

                                                  714467-0013     714467-0014      705650-0001     716213-0001


►SN  NO. :  434533-0012


►Material : K418+42CrMo


►Application :   Volkswagen Golf TDI

                                RenauIt Espace DCI

                                RenauIt Laguna DCI

                                 BMW 740D

                                 FORD MONDEO DI

►Balancing Test :  < 5mg.mm / 30000RPM


   DIMENSION



  PRODUCT   SHOW

 WHAT   WE   SUPPLY


Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.

Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.

Model cover :

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,

MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035

Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
