49177-20650 TF035HM Turbocharger Bearing Housing 49135-06000 49135-06025 for Ford

49177-20650 TF035HM Turbocharger Bearing Housing 49135-06000 49135-06025 for Ford

 TURBO BEARING HOUSING

Bearing housing is the support body of rotor components in a turbocharger. It is connected to compressor housing and turbine housing to form the completed turbocharger. Apart from bearing the mechanical load of rotor components, it also endures the heat load from the turbine end.

Our organization is involved in offering Bearing housing that is also known as Plummer Block or pillow block for bearing. We make available Bearing housings that are as per the international quality standards.

These Bearing housings act as a mounted bearing for providing support to a rotating shaft, axis of which is parallel to the line of mounting surface. Further, these Bearing housings are made in our sophisticated manufacturing unit that makes these highly reliable and durable.

  PRODUCT    DESCRIPTION

TURBO NO. :

49135-06000 49135-06010 49135-06015 49135-06017

49135-06030 49135-06035 49135-06037 49135-06043

49135-06115 49135-06020 49135-06025

SN No. :

49177-20650

Vehicle:

Ford  Transit   2.4L

Ford  Transit  2.4 TDCI  2.4L

Model :

TF035HM

Material:

HT250 Gray Iron

Cooling Mode :

oil  cooling

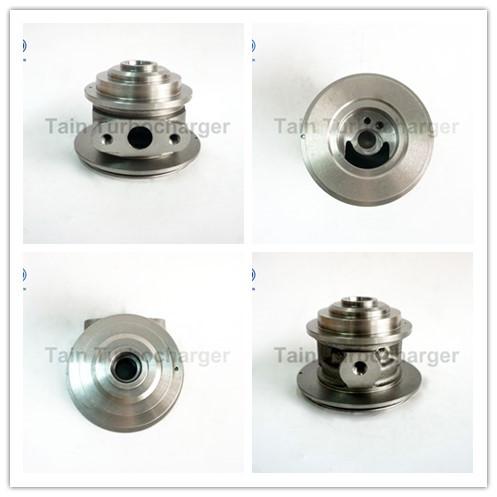

   PRODUCT    SHOW

     WHAT    WE    SUPPLY

Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.

Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.

Model cover :

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset:

HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,

MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035

Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26


        WHO    WE    ARE

Tain turbo is leading manufacturer of aftermarket turbochargers and parts in Wuxi,China.

Tain was established in 1997,covering over 4000 square meters.Tain has many advanced equipments like MAKINO L2 5-axis equipment,SCHENCK balancing equipments,OKUMA CNC,electron beam welding equipment,etc.We are professional on turbo chras with billet compressor wheels.We also sell other turbo

parts like turbine wheel,compressor wheel,rebpair kits and nozzle ring.Every cartridge is tested by SCHENCK TB-Sonio,every shaft&wheel and compressor wheel is tested by SCHENCK Xano.Tain only supply products with high quality and performance,and thanks to our professional technicians and years of experience,Tain wins a good reputation among our customers.
