K5V140DTP-9N01 for SOLAR 300-7/DH300-7 401-00225A 401-00424A Improve On-Site Comfort for Long Shifts
Price:
1250.00usd
MOQ:
1
Delivery Time:
Negotiable
Brand:
TGFQ
Product Description

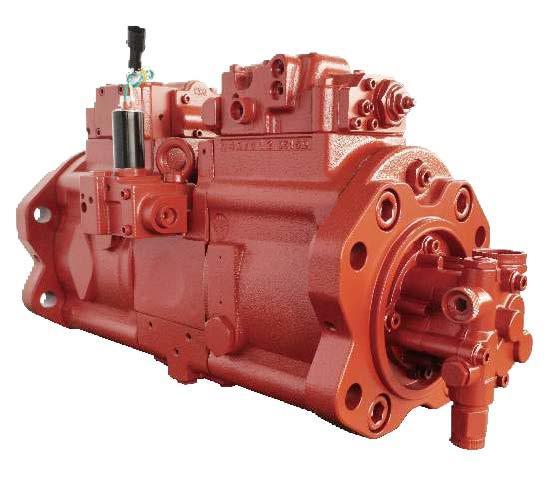

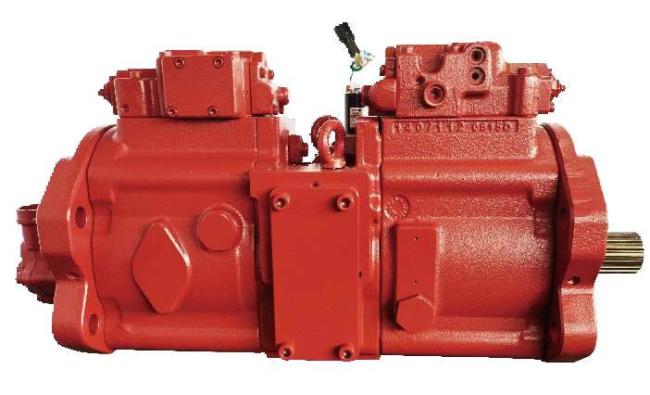

K5V140DTP-9N01 Hydraulic Pump for SOLAR 300-7/DH300-7
Enhance your SOLAR 300-7/DH300-7 excavator's performance with the K5V140DTP-9N01 hydraulic pump. This upgrade delivers consistent flow and pressure for safe, stable lifting of heavy materials while preventing swaying or dropping, significantly improving on-site safety and operational efficiency.
Product Features
- Compatible with SOLAR 300-7 and DH300-7 excavator models
- Replaces part numbers 401-00225A and 401-00424A
- Provides consistent hydraulic flow and pressure for stable operation
- Enhanced safety features prevent load swaying and dropping
- Improves overall load capacity and operational comfort
Product Images

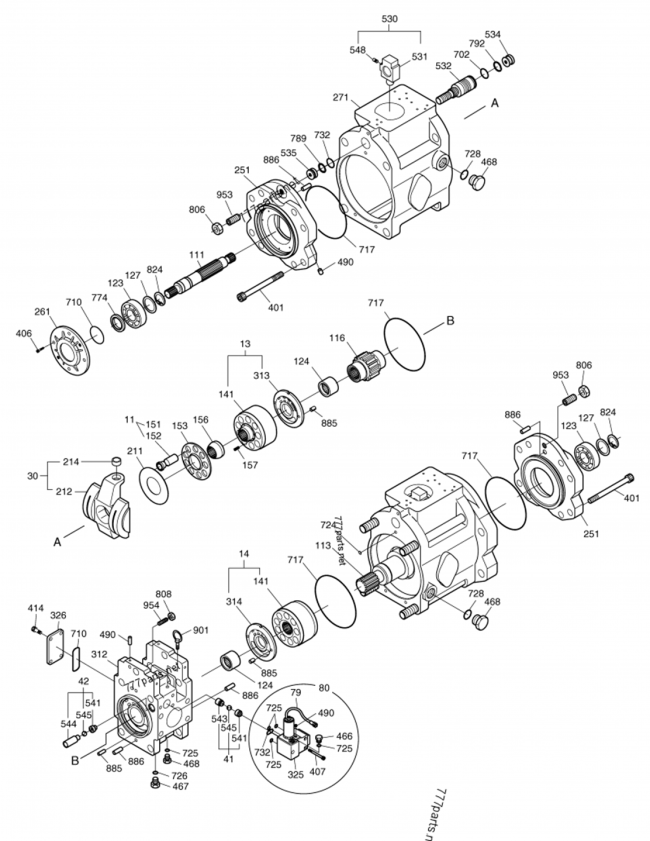

Parts List & Components
| Position | Part Number | Quantity | Part Name |
|---|---|---|---|
| 153 | 2924110-0056 | 2 | PLATE, SET |
| - | 401-00225A | 1 | PUMP |
| - | 401-00424 | 1 | PUMP (FLUTEK) |
| - | 401-00424A | 1 | PUMP (FLUTEK) |
| 11 | 2924530-0252 | 2 SET | PISTION ASS'Y |
| 151 | 2924530-0231 | 9 | PISTON |
| 152 | 2924330-0072 | 9 | SHOE, TRACK |
| 13 | 2924370-0371 | 1 | CYLINDER ASS'Y(R) |
| 141 | 2924370-0379 | 1 | BLOCK, CYLINDER |
| 313 | 2924710-0362 | 1 | PLATE, VALVE(R) |
| 14 | 2924370-0372 | 1 | CYLINDER ASS'Y(L) |
| 141 | 2924370-0379 | 1 | BLOCK, CYLINDER |
| 314 | 2924710-0360 | 1 | PLATE, VALVE(L) |
| 30 | 2924150-0156 | 2 | SWASH PLATE ASS'Y |
| 30 | 2924150-0318 | 2 | SWASH PLATE ASS'Y |
| 212 | 2924150-0154 | 1 | PLATE, SWASH |
| 212 | 2924150-0316 | 1 | PLATE, SWASH |
| 214 | P1R2025125 | 1 | BUSH, TILTING |
| 80 | 2931100-0158 | 1 | PROPORTIONAL REDUCING VALVE |
| 79 | V0009277998 | 1 | PROPORTIONAL REDUCING V/V |
| 111 | 2924250-0556 | 1 | SHAFT, DRIVE(F) |
| 113 | 2924250-0557 | 1 | SHAFT, DRIVE(R) |
| 116 | 2903190-0226 | 1 | GEAR |
| 123 | PNUP308R1CS50 | 2 | BEARING, ROLLER |
| 124 | PAJ503303 | 2 | BEARING, NEEDLE |
| 127 | 38800-127 | 3 | SPACER, BEARING |
| 156 | 2924610-0030 | 2 | BUSH, SPHERICAL |
| 157 | 2903340-1784 | 18 | SPRING, CYLINDER |
| 211 | 68710-00-211 | 2 | PLATE, SHOE |
| 251 | 2923330-0127 | 2 | SUPPORT , S.P. |
| 251 | 2923330-0325 | 2 | SUPPORT, S.P. |
| 261 | 2923150-0486 | 1 | COVER, SEAL(F) |
| 271 | 2923800807 | 2 | CASING, PUMP |
| 312 | 2923370-0080 | 1 | BLOCK, VALVE |
| 326 | 2923150-0470 | 1 | COVER |
| 401 | 2953801767 | 8 | BOLT, HEX SOCKET HEAD |
| 406 | OSBM820 | 4 | SCREW, HEX. S.H.C M8X20 |
| 414 | OSBM1016 | 4 | SCREW, HEX.S.H.C. |
| 466 | OVP14 | 2 | PLUG, VP |
| 467 | OVP38 | 2 | PLUG |
| 468 | OVP34 | 4 | 108847 VP-PLUG |
| 490 | PBP116-2403 | 18 | PLUG |
| 530 | 2925130-0035 | 2 | TILTING PIN ASS'Y |
| 531 | 2925130-0033 | 1 | PIN, TILTING |
| 548 | 2953802202 | 1 | PIN, FEED BACK |
| 532 | 2924490-0050 | 2 | PISTON, SERVO |
| 534 | 2953801761 | 2 | STOPPER(L) |
| 535 | 2953801762 | 2 | STOPPER(S) |
| 41 | 29538267778 | 1 KIT | CHECK VALVE ASS'Y(1) |
| 41 | 2953802048 | 1 | CHECK VALVE ASS'Y(1) |
| 541 | 2953802677 | 2 | SEAT, M/PUMP |
| 541 | 2933180-0414 | 2 | SEAT |
| 543 | 2953802678 | 2 | STOPPER 1, M/PUMP |
| 543 | 2933260-0311 | 2 | STOPPER 1 |
| 545 | ODW732 | 2 | BALL, STEEL |
| 42 | 29538267774 | 1 KIT | CHECK VALVE ASS'Y(2) |
| 42 | 2953802049 | 1 | CHECK VALVE ASS'Y(2) |
| 541 | 2953802677 | 2 | SEAT, M/PUMP |
| 541 | 2933180-0414 | 2 | SEAT |
| 774 | PSPD55788F | 1 | SEAL, OIL |
| 774 | P15Z557812F | 1 | SEAL, OIL |
| 789 | OT2BP18 | 2 | RING, BACK UP |
| 792 | OT2BG35 | 2 | RING, BACK UP |
| 806 | ORNM16 | 2 | NUT M16 |
| 808 | ORNM20 | 2 | NUT M20 JIS B1181 RN-M20 |
| 824 | OSR40 | 2 | RING, SNAP |
| 885 | PJR812 | 2 | PIN |
| 886 | OSPV614 | 4 | SPRING PIN |
| 901 | OEBM10 | 2 | BOLT, EYE |
| 953 | PSSSM1635 | 2 | SCREW, SET |
| 954 | 2953801768 | 2 | SCREW, SET |
| * | 401-00225AKT | 1 | SEAL KIT, BODY+REGU. |
| * | 401107-00478 | 1 | SEAL KIT, MAIN PUMP |
