PC300-8M0 PC290LC-11E0 708-8H-00620/708-8H-0044 Travel Motor and Final Drive, Travel Motor LH/RH

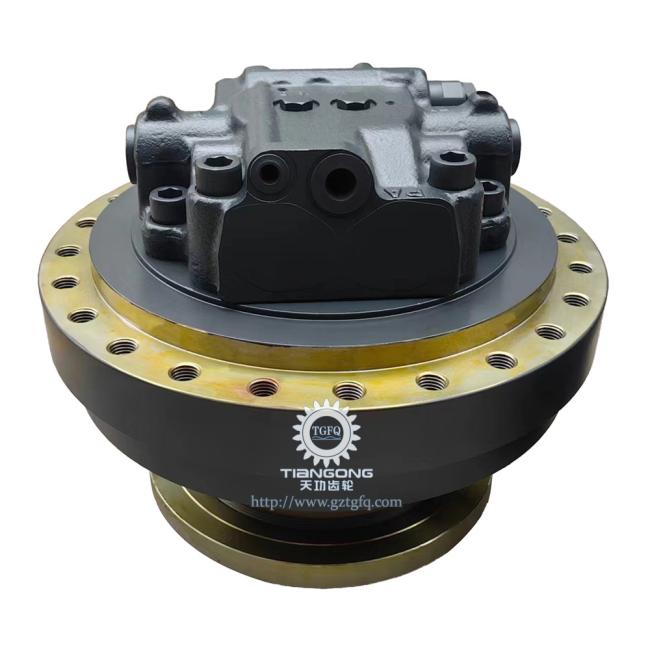

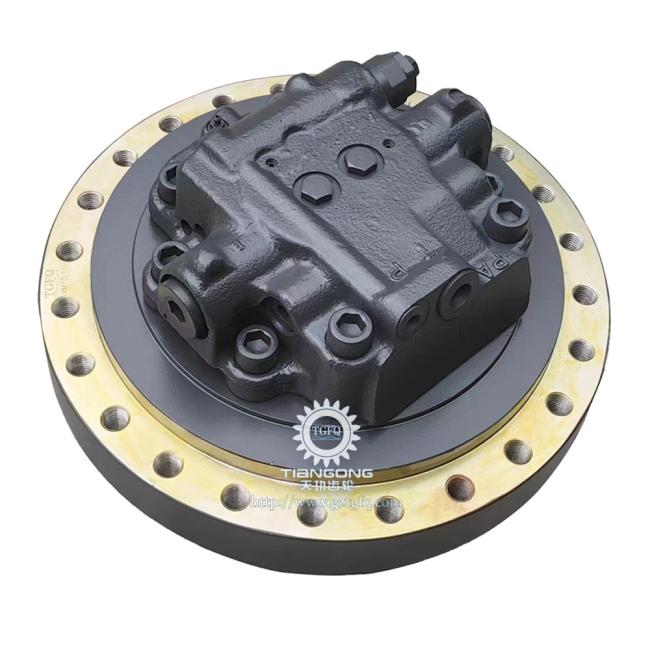

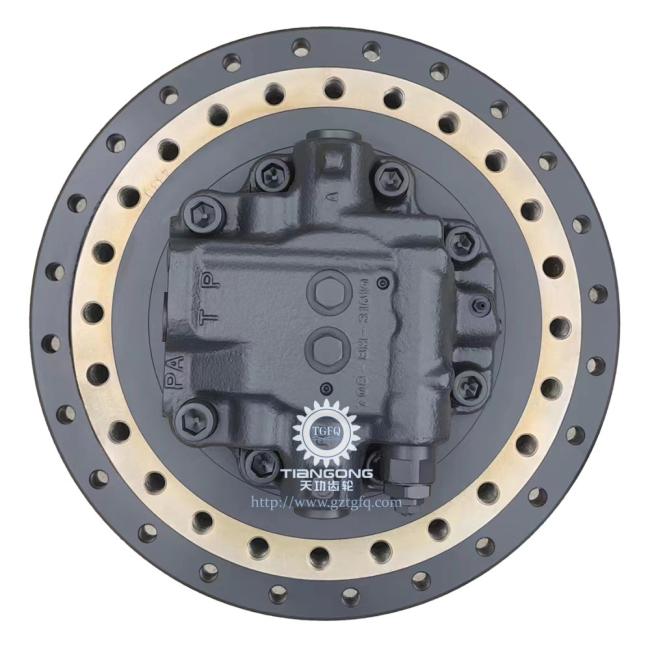

Product Name: Travel Motor Assy
Model: PC300-8M0/PC350-8M0
Part Number: PC300-8M0 PC290LC-11E0
Application: Komatsu PC200-7 Crawler Excavator
- Original matching hydraulic component for final drive system
- High torque piston structure, supports heavy load & climbing work
- Reinforced sealing & wear resistant parts, anti-leakage, dustproof
- Two speed control, smooth walking and flexible steering
- Standard mounting dimension, direct replacement, easy installation
- Strict factory pressure test, stable performance with long service life
Widely used in engineering construction, mining, earthmoving and other harsh working conditions for Komatsu PC200-7 excavator walking power support.
| Compatible Models | PC300-8M0 PC290LC-11E0 |
|---|---|
| Category | TRAVEL MOTOR |
| Brand | TGFQ |
| Part Numbers | 708-8H-00620/708-8H-0044 |
| Packing | Wooden case |
| Delivery Time | 1-3 days after payment confirmation |
| Shipping Methods | By Sea, Air, or Express |
Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.
Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.
The swing brake features a multi-disc and plate assembly located in the first stage planetary gear. This spring-applied, hydraulically-released system functions as a parking brake and is not designed for cyclic service braking. Discs and plates are lubricated by the release signal oil for optimal performance and longevity.
| # | Part No. | Description | Qty |
|---|---|---|---|
| 9 | 708-8H-00620 | SPACER, T=1.7MM | 1 |
| 8 | 708-8H-04860 | SPACER, T=1.6MM | 1 |
| 7 | 207-27-00880 | MOTOR A.,(L.H.) | 1 |
| 6 | z | CYLINDER BLOCK ASSEMBLY | 1 |
| 5 | 04065-07825 | SPACER, T=2.2MM | 1 |
| 4 | 708-8H-32160 | SPACER, T=2.1MM | 1 |
| 3 | 708-1F-12281 | SPACER, T=2.0MM | 1 |
| 29 | 708-8H-05050 | SPACER, T=1.9MM | 1 |
| 28 | 708-8H-32170 | FINAL DRIVE A.,LH | 1 |
| 27 | 708-8H-35150 | PLATE, VALVE | 1 |
| 26 | 07001-05195 | BLOCK, CYLINDER | 1 |
| 25 | 07000-15195 | RING, SNAP | 1 |
| 24 | 07001-05175 | SPACER | 1 |
| 23 | 07000-15175 | SEAL, OIL | 1 |
| 22 | 708-8H-35141 | SPACER KIT | 1 |
| 21A | 708-8H-35180 | BEARING | 1 |
| 21 | 708-8H-35130 | SPRING | 1 |
| 20 | 708-8H-34340 | RING, BACK-UP | 1 |
| 2 | 708-8H-34330 | O-RING | 1 |
| 19 | 708-8H-34320 | RING, BACK-UP | 1 |
| 18 | 708-8H-32150 | O-RING | 1 |
| 17 | 04260-02857 | PISTON, BRAKE | 1 |
| 16 | 708-8H-33950 | DISC | 3 |
| 15 | 708-8H-33650 | PLATE | 4 |
| 14 | 708-8H-33340 | SPRING | 1 |
| 13 | 708-8H-33512 | SPRING | 1 |
| 12 | 04065-06020 | PISTON | 1 |
| 11 | 708-8H-33750 | BEARING | 1 |
| 10 | 708-8H-33141 | BALL, RETAINER | 2 |
| 1 | 708-8H-33360 | CAM, ROCKER | 1 |
| 708-18-13230 | PISTON SUBASSEMBLY | 9 | |
| 708-8H-32180 | RETAINER, SHOE | 1 | |
| 20 | (*708-8F-34141) | Piston | 1 |
| 21 | (*708-8F-34150) | Spring | 1 |
| 23 | (*708-8F-35130) | Plate | 3 |
| 24 | (*708-8F-35120) | Disc | 3 |
| 25 | (*708-8F-35140) | PISTON,BRAKE | 1 |
| 26 | (*708-8F-35160) | O-ring | 1 |
| 27 | (*708-8F-35170) | RING,BACK-UP | 1 |
| 28 | (*708-8F-35180) | O-ring | 1 |
| 29 | (*708-8F-35190) | RING,BACK-UP | 1 |
| 30 | (*708-8F-35150) | Spring | 6 |
| 31 | (*04025-00324) | PIN,SPRING |
Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.
