CX210C/SH210-5 Travel motor MAG170VP-3800 KRA1426/KRA1860/KRA10120/KRA15440
Price:
675.00USD
MOQ:
1
Delivery Time:
1-3days
Brand:
TGFQ
Product Description
CX210C/SH210-5 Travel motor MAG170VP-3800 KRA1426/KRA1860/KRA10120/KRA15440
As a high-grade replacement spare part for heavy-duty excavators, this travel drive model is professionally optimized and precisely calibrated to perfectly fit the CX210C/SH210-5 specification models. Differing from conventional standard hydraulic motor assemblies, this unit adopts upgraded hydraulic transmission technology and integral reinforced structural craftsmanship. It is purpose-built for rigorous heavy-load construction conditions, effectively delivering stable output performance, extended service lifespan and improved overall operation reliability. Boasting excellent compatibility and superior comprehensive performance, it serves as a cost-effective premium replacement solution for original equipment parts.
Safety Features
Reverse-Prevention Valve System
The motor and mounting group incorporates a built-in reverse-prevention valve that eliminates unintended reverse rotation, preventing operational errors and safety hazards.
- One-way valve design ensures hydraulic oil flows in only one direction
- Prevents motor reversal due to external forces or hydraulic fluctuations
This safety feature is critical during heavy lifting operations where reverse rotation could cause load drops and serious accidents. The high-flow capacity valve maintains normal motor operation and response speed while providing reliable performance under high hydraulic pressure and frequent use conditions.
Product Specifications
| Compatible Models | CX210C/SH210-5 |
| Category | Excavator travel motor |
| Brand | TGFQ |
| Part Numbers | KRA1426/KRA1860/KRA10120/KRA15440 |
| Packing | Wooden Case |
| Delivery Time | 1-3 days after payment confirmation |
| Shipping Methods | By Sea, Air, or Express |
Quality Assurance
Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.
Hydraulic Motor Applications
Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.

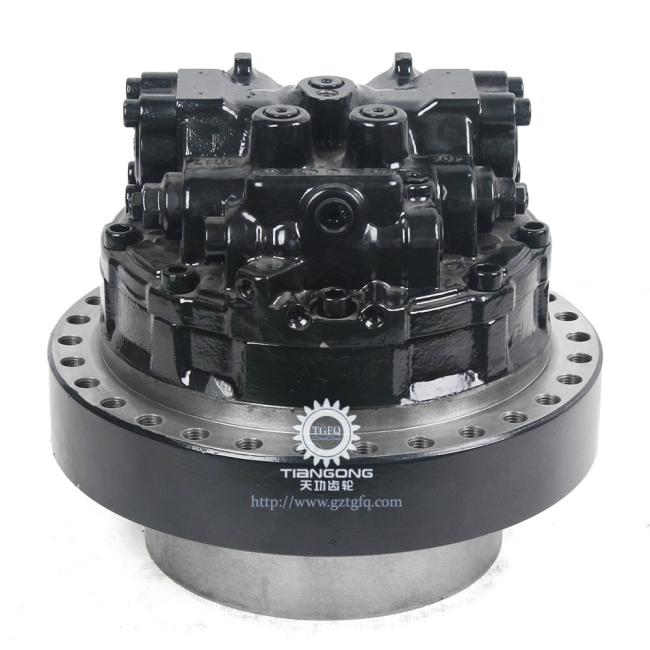

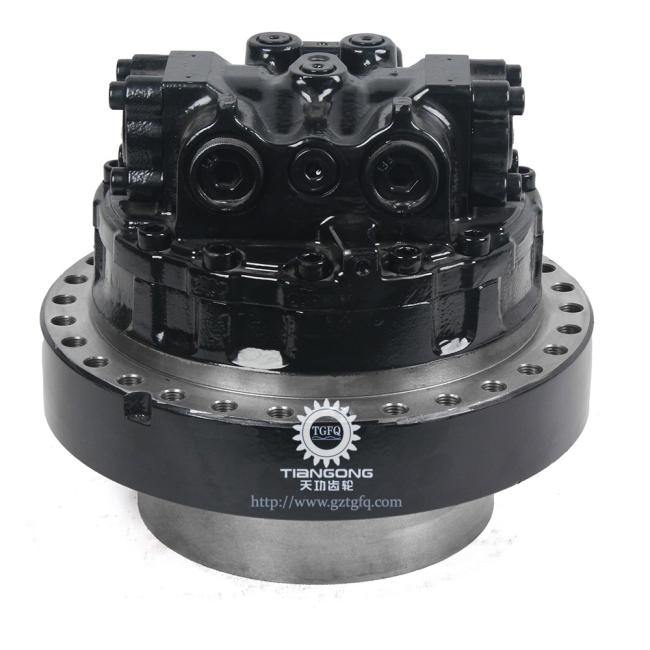

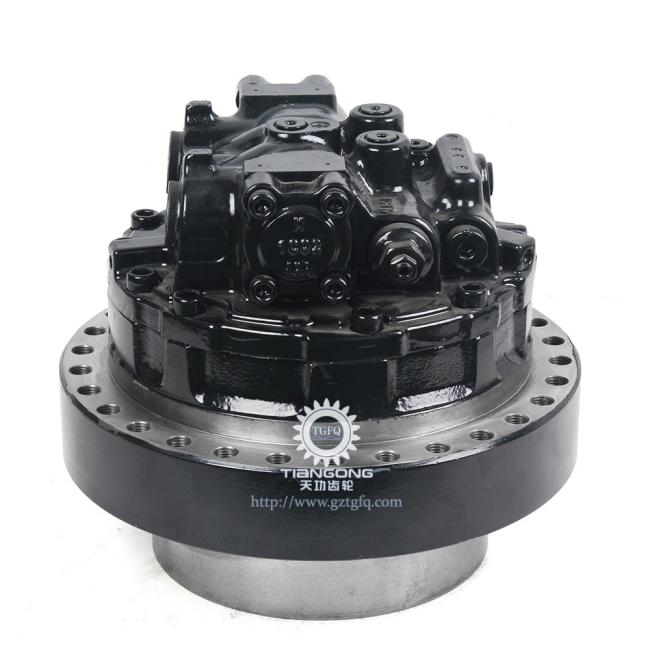

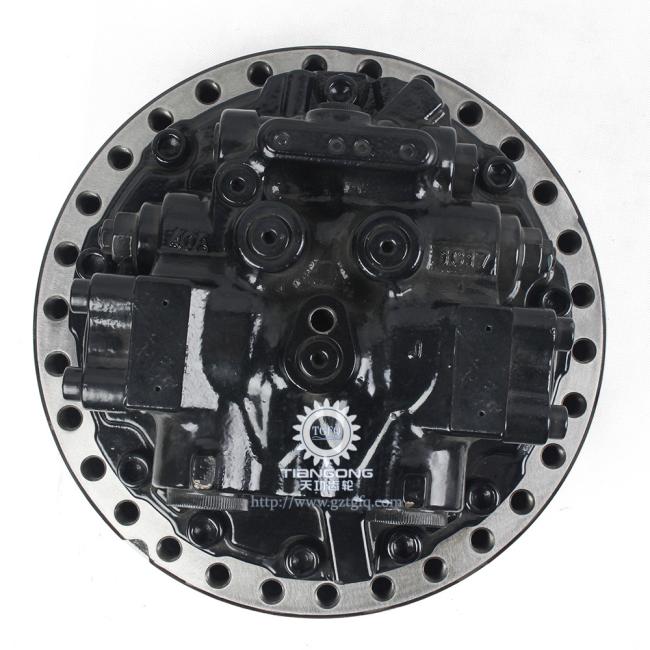

Product Images
Travel Motor Parts Breakdown
Parts List - Assembly 1
| # | Part No. | Description | Qty |
| KRA1860 | MOTO-REDUCTION GEAR | 1 | |
| 2 | NSS | NOT SOLD SEPARAT; Housing | 1 |
| 4 | NSS | NOT SOLD SEPARAT; Plate | 1 |
| 21 | LJ00743 | VALVE, PRESSURE RELI; EF | 2 |
| ---- | Replaced By 160565a1 | ||
| ---- | Consists Of Ref. Numbers 22 To 39 | ||
| 21 | 160565A1 | VALVE | 2 |
| ---- | Consists Of Ref. Numbers 22 To 39 | ||
| 22 | NSS | NOT SOLD SEPARAT; Sleeve, Coupling | 1 |
| 23 | NSS | NOT SOLD SEPARAT; Poppet, Valve | 1 |
| 24 | NSS | NOT SOLD SEPARAT; Seat, Valve | 1 |
| 25 | NSS | NOT SOLD SEPARAT; Seat, Spring | 1 |
| 26 | NSS | NOT SOLD SEPARAT; Spring | 1 |
| 27 | NSS | NOT SOLD SEPARAT; Plug | 1 |
| 28 | 155225A1 | O-RING | 1 |
| 29 | NSS | NOT SOLD SEPARAT; Guide | 1 |
| 30 | NSS | NOT SOLD SEPARAT; Piston | 1 |
| 31 | 154491A1 | O-RING | 1 |
| 32 | 153974A1 | BACK-UP RING | 2 |
| 33 | NSS | NOT SOLD SEPARAT; Spring | 1 |
| 34 | NSS | NOT SOLD SEPARAT; Seat, Spring | 1 |
| 35 | NSS | NOT SOLD SEPARAT; O-Ring | 1 |
| 36 | NSS | NOT SOLD SEPARAT; Setscrew | 1 |
| 37 | NSS | NOT SOLD SEPARAT; Nut | 1 |
| 38 | 154479A1 | O-RING | 1 |
| 39 | 153964A1 | BACK-UP RING | 2 |
| 42 | NSS | NOT SOLD SEPARAT; Spool | 1 |
| 43 | NSS | NOT SOLD SEPARAT; End | 1 |
| 44 | TJ00203 | FILTER | 1 |
| 45 | 154447A1 | O-RING | 1 |
| 46 | 154443A1 | O-RING | 1 |
| 47 | 153940A1 | BACK-UP RING | 1 |
| 48 | 154061A1 | BACK-UP RING | 1 |
| 49 | 160545A1 | RING, SNAP; RING SNAP | 1 |
| 55 | NSS | NOT SOLD SEPARAT; Plug | |
| 59 | 161773A1 | PLUG | 4 |
| 60 | 154467A1 | O-RING,10.8mm ID x 2.4mm Width | 4 |
| 64 | LB00545 | SHAFT | 1 |
| 65 | LS00128 | MANIFOLD VALVE | 1 |
| ---- | Consists Of Ref. Numbers 66 To 74 | ||
| 66 | NSS | NOT SOLD SEPARAT; Block | 1 |
| 67 | NSS | NOT SOLD SEPARAT; Piston Assy | 9 |
| 68 | NSS | NOT SOLD SEPARAT; Holder | 1 |
| 69 | NSS | NOT SOLD SEPARAT; Coupling | 1 |
| 70 | 160103A1 | RING, SNAP; RING SNAP | 1 |
| 71 | 160203A1 | SPRING SEAT | 1 |
| 72 | 160590A1 | SPRING | 1 |
| 73 | 158113A1 | COLLAR | 1 |
| 74 | 155631A1 | COTTER PIN | 3 |
| 75 | LR00581 | PLATE | 1 |
| 76 | 155950A1 | BALL | 2 |
| 77 | NSS | NOT SOLD SEPARAT; Piston | 2 |
| 78 | LB00546 | BEARING,50mm ID x 90mm OD x 20mm W | 1 |
| 79 | LB00547 | BEARING,35mm ID x 72mm OD x 17mm W | 1 |
| 80 | 155578A1 | PIN; COTTER PIN | 1 |
| 81 | 108R014Z035N | BOLT | 10 |
| 82 | LE00779 | OIL SEAL | 1 |
| 83 | LR00582 | PLATE | 3 |
| 84 | 165696A1 | PLATE | 2 |
| 85 | LJ00746 | PISTON | 1 |
| 86 | 165720A1 | OIL SEAL | 1 |
| 87 | 165721A1 | SEALING RING | 1 |
| 88 | 156090A1 | SPRING | 8 |
| 89 | 160097A1 | COTTER PIN | 4 |
| 90 | 160592A1 | SPRING | 2 |
| 91 | 160330A1 | PORT | 1 |
| 92 | 154463A1 | O-RING | 4 |
| 93 | 155220A1 | O-RING | 1 |
| LZ00378 | SEAL KIT | ||
Warehouse & Inventory Capacity
Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.
Frequently Asked Questions
Can I order a sample for testing first?
Yes, we welcome sample orders for testing and evaluation.
How do I place an order?
Simply provide the model and quantity you need. We will issue a proforma invoice, and upon payment confirmation, your order will be processed. Preparation time varies based on order complexity.
Do you have your own factory?
Yes, we operate our own manufacturing facility with 23 years of specialized experience in the excavator gear industry.
