PC200-6 6D95 Travel Gearbox 20Y-27-K1210 Excavator Gear Parts
Price:
500.00-1000.00USD
MOQ:
1
Delivery Time:
1-3days
Brand:
TGFQ
Product Description
PC200-6 6D95 Travel Gearbox 20Y-27-K1210 Excavator Gear Parts
TGFQ Excavator Gear Parts PC200-6 6D95 Travel Gearbox 20Y-27-K1210
Product Specifications
| Description | Hydraulic Travel Reducer |
| Material | Iron |
| Place of Origin | Huangpu |
| Model | PC200-6 6D95 |
| Part Number | 20Y-27-K1210 |
| Package | Standard Exporting Wooden Box or As Required |

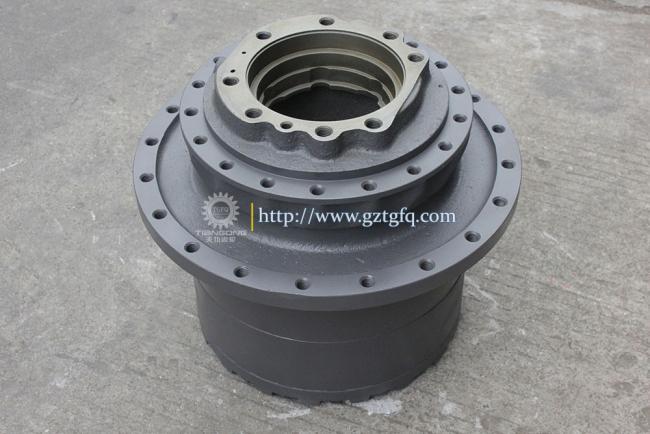

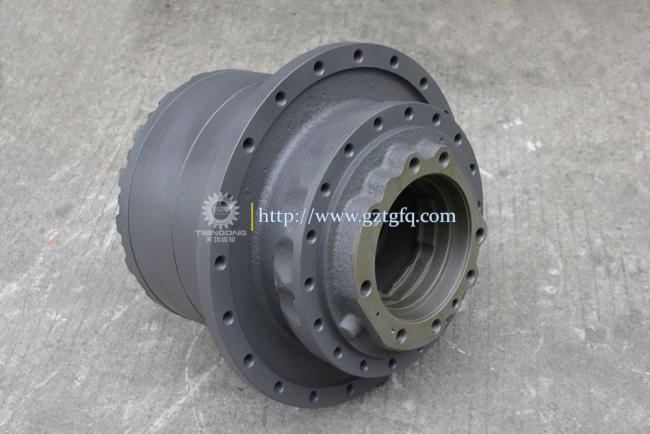

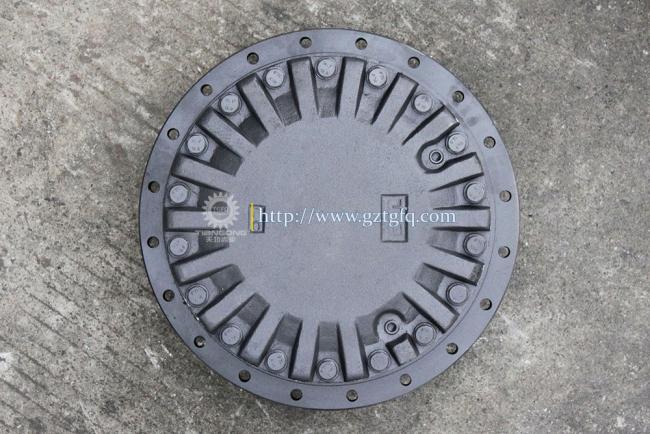

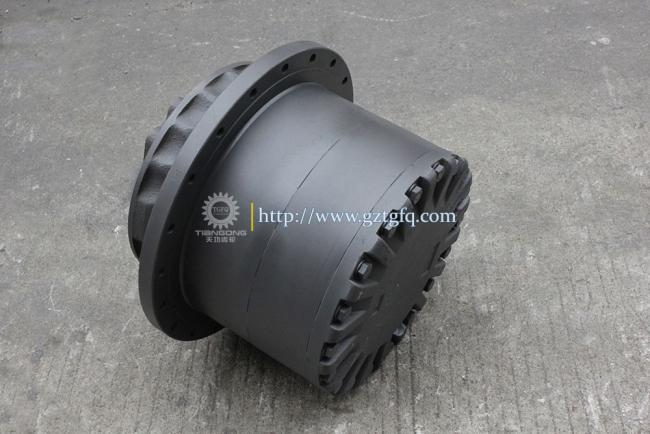

Product Images

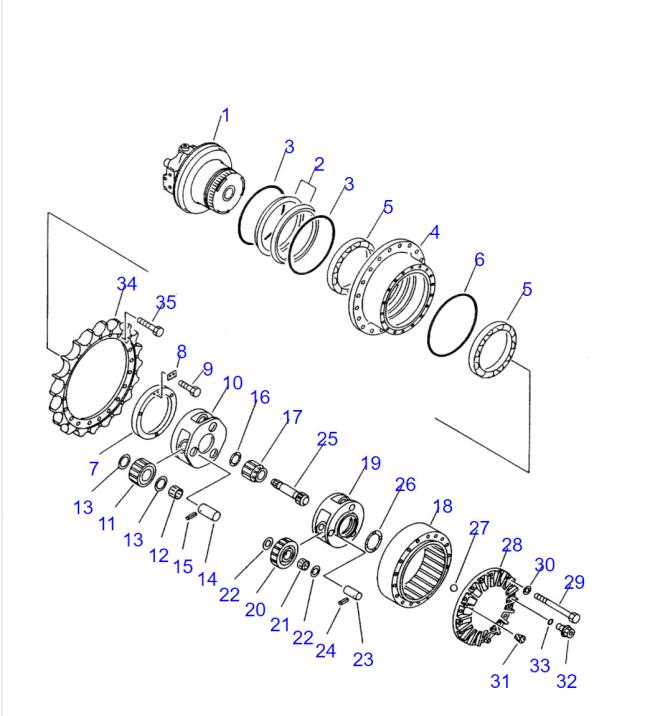

Technical Drawing
Parts List
| Pos. | Part No | Qty | Parts Name | Comments |
|---|---|---|---|---|
| 20Y-27-K1210 | [1] | DRIVE KIT,FINAL Komatsu China | ["SN: K30189-UP"] | |
| 1 | 708-8H-00181 | [1] | MOTOR ASS'Y,(SEE FIG.P1210-5101) Komatsu China | ["SN: K30001-UP"] analogs:["RM7088H00181"] |
| 150-27-00029 | [1] | FLOATING SEAL ASS'Y Komatsu China | 2.99 kg. ["SN: K30001-UP"] analogs:["1502700330", "1502700410"] | |
| 4 | 20Y-27-21120 | [1] | HUB Komatsu | 97 kg. ["SN: K30001-UP"] |
| 5 | 20Y-27-11570 | [2] | BEARING Komatsu China | 5.2 kg. ["SN: K30001-UP"] analogs:["2052771430"] |
| 6 | 20Y-27-21350 | [1] | O-RING Komatsu | 0.02 kg. ["SN: K30001-UP"] |
| 7 | 20Y-27-21331 | [1] | LOCKNUT Komatsu | 4.35 kg. ["SN: K30001-UP"] analogs:["20Y2721330"] |
| 8 | 20Y-27-21341 | [1] | LOCK Komatsu | 0.1 kg. ["SN: K30001-UP"] |
| 9 | 01010-51020 | [2] | BOLT Komatsu | 0.161 kg. ["SN: K30001-UP"] analogs:["0101081020", "801014093", "801015108"] |
| 10 | 20Y-27-21153 | [1] | CARRIER Komatsu | 24.5 kg. ["SN: K30189-UP"] analogs:["20Y2721152"] |
| 20Y-27-21152 | [1] | CARRIER Komatsu | 24.5 kg. ["SN: K30001-K30188"] analogs:["20Y2721153"] | |
| 11 | 20Y-27-21210 | [3] | GEAR Komatsu | 4.3 kg. ["SN: K30001-UP"] |
| 12 | 20Y-27-21270 | [3] | BEARING Komatsu China | 0.3 kg. ["SN: K30001-UP"] analogs:["20Y2722220"] |
| 13 | 20Y-27-21250 | [6] | WASHER Komatsu China | 0.03 kg. ["SN: K30001-UP"] |
| 14 | 20Y-27-21230 | [3] | PIN Komatsu | 1.54 kg. ["SN: K30001-UP"] |
| 15 | 20Y-27-21290 | [3] | PIN Komatsu OEM | 0.03 kg. ["SN: K30001-UP"] |
| 16 | 20Y-27-13310 | [1] | WASHER Komatsu China | 0.08 kg. ["SN: K30001-UP"] |
| 17 | 20Y-27-21190 | [1] | GEAR Komatsu | 2.7 kg. ["SN: K30001-UP"] analogs:["20Y2721191"] |
| 18 | 20Y-27-21180 | [1] | GEAR Komatsu | 46.5 kg. ["SN: K30001-UP"] |
| 19 | 20Y-27-21140 | [1] | CARRIER Komatsu | 8.2 kg. ["SN: K30001-UP"] |
| 20 | 20Y-27-21170 | [3] | GEAR Komatsu | 2.7 kg. ["SN: K30001-UP"] |
| 21 | 20Y-27-21260 | [3] | BEARING Komatsu China | 0.12 kg. ["SN: K30001-UP"] analogs:["20Y2722210"] |
| 22 | 20Y-27-21240 | [6] | WASHER Komatsu China | 0.02 kg. ["SN: K30001-UP"] |
| 23 | 20Y-27-21220 | [3] | PIN Komatsu China | 0.411 kg. ["SN: K30001-UP"] |
| 24 | 20Y-27-21280 | [3] | PIN Komatsu China | 0.01 kg. ["SN: K30001-UP"] |
| 25 | 20Y-27-21161 | [1] | SHAFT Komatsu | 2.26 kg. ["SN: K30001-UP"] |
| 26 | 20Y-27-21310 | [1] | WASHER Komatsu China | 0.17 kg. ["SN: K30001-UP"] |
| 27 | 04260-01905 | [1] | BALL Komatsu OEM | 0.029 kg. ["SN: K30001-UP"] |
| 28 | 20Y-27-21110 | [1] | COVER Komatsu | 23 kg. ["SN: K30001-UP"] |
| 29 | 20Y-27-21360 | [18] | BOLT Komatsu | 0.28 kg. ["SN: K30001-UP"] |
| 30 | 01643-31645 | [18] | WASHER Komatsu | 0.072 kg. ["SN: K30001-UP"] analogs:["802170005", "0164301645"] |
| 31 | 07049-01215 | [2] | PLUG Komatsu | 0.001 kg. ["SN: K30001-UP"] |
| 32 | 07044-12412 | [2] | PLUG Komatsu | 0.09 kg. ["SN: K30001-UP"] analogs:["0704402412", "R0704412412"] |
| 33 | 07002-02434 | [2] | O-RING Komatsu China | 0.01 kg. ["SN: K30001-UP"] analogs:["0700212434", "0700213434"] |
| 34 | 20Y-27-11581 | [1] | SPROCKET Komatsu China | 36.2 kg. ["SN: K30001-UP"] analogs:["20Y2711582", "20Y27K1110", "20Y2777110"] |
| 35 | 20Y-27-11561 | [20] | BOLT Komatsu China | 0.14 kg. ["SN: K30001-UP"] |
Installation Performance Guidelines
- Check the piping and flexible hose is correctly installed
- Ensure correct direction of rotation of the motor is achieved
- Check for leakage from all motor parts
- Ensure the system is operating within the specified working temperature
- Check the pressure is operating within specified range
Warehouse & Inventory Capacity
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse. It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.
Frequently Asked Questions
What can you do?
We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.
How long is the warranty period?
Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.
Can I order one of our samples for testing first?
Of course!
How do I order?
You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Do you have a factory?
Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
