3w Recessed Led Downlight 50mm Diameter , Bridgulex Ip44 Recessed Downlight

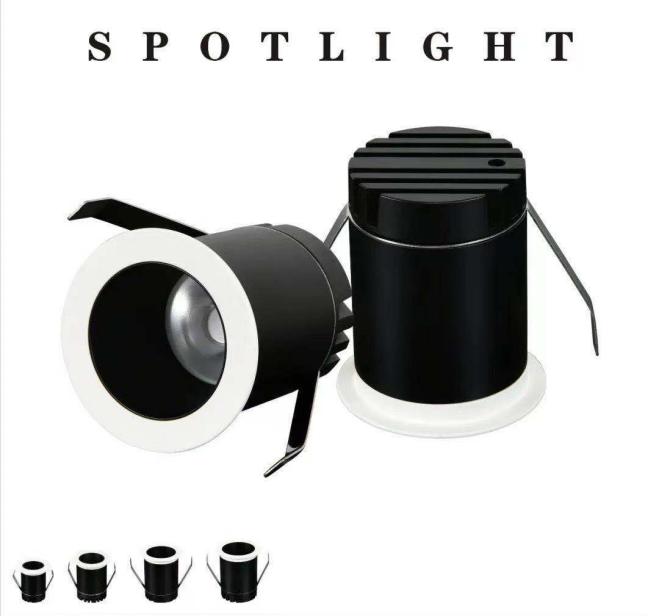

1w 3w 30mm 50mm Led Spot Light White Black Aluminum Cutout 30 Mm Led Cob
Model list
| Product Name: | 7W LED Down Light | 12W LED Down Light | 7W LED Down Light | 12W LED Down Light | 7W LED Down Light | 12W LED Down Light |
| Part Number: | LF-LDL7W-R | LF-LDL12W-R | LF-LDL7W-O | LF-LDL12W-O | LF-LDL7W-S | LF-LDL12W-S |
| Input Voltage: | AC 220~240V 50/60Hz | |||||
| Power Consumption: | 7W | 12W | 7W | 12W | 7W | 12W |
| Light Source: | Cree COB LEDs | |||||
| Driver: | Lifud (No Flickering) | |||||
| Luminous Flux: | 560lm | 960lm | 560lm | 960lm | 560lm | 960lm |
| Color Temperature: | 2700K(Warm), 3000K (Warm), 4000K (Neutral), 5000K (Cool), 6000K (Cool) | |||||
| CRI: | 80Ra, 90Ra (Optional) | |||||
| Beam Angle: | 15, 24, 36 Degrees (Optional) | |||||
Specifications:
| Lamp wattage | 6W, 10W |
| Light output | 6W=600LM, 10W=950LM |
| Color temperature | 2700K,3000K,4000K,6000K |
| CRI | ≥80 |
| Beam angle | 24° 36° 60° |
| Mains voltage | 220-240V/50-60Hz |
| Driver gear | 140mA/250mA |
| Power factor | ≥0.9 |
| LED chips | Citizen, Cree for option |
| Deriver | Tridonic, ,Osram,Meanwell, TCI, Lifud |
| Connection | Push-in connector |
| Ceiling cutout | 80mm |
| Over hight | 47mm |
| Lamp diameter | 90mm |
| surface color | white, black. silver |
| Ingress protection | IP44 |
| Products weight | 0.37kg |
| Light data file | IES |
| Installation | Spring fasteners |
| Dimming option | DALI, 1-10V, Triac |
Description:
Recessed downlights are available in various shapes, sizes, finishes and brightness's. They're also available in different types such as fixed, adjustable and bathroom (IP65). It is important to choose the right type of downlight to meet the demands of your project or application. Before integrated LEDs came along, GU10 downlights were available in fixed, adjustable and bathroom versions. Fixed had no resistance to dust or water and had an IP rating of IP20. Adjustable also had an IP20. Bathroom versions are IP65 rated which means they're water and dust resistant. Integrated LED downlights are available in other variations. They're usually IP65 rated as standard, manufacturers don't bother producing a fixed IP20 version as their is no saving by having 2 different types. An IP65 rated downlight has an additional seal making it a more universal specification.
Applications:

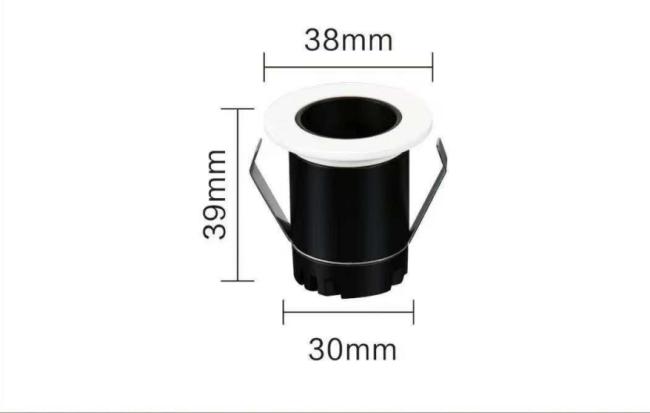

1-3W product Size
