30mm Slim Led Downlights Dimmable , 5w Ip44 Recessed Downlight
Mini Spotlight Focusing Downlight 3W 5w Cutout 30mm Slim Anti Glare Downlight
Introduction:
Integral 34 mm Mini LED Downlights with higher colour rendering properties, resulting in a better, more accurate quality of light. The miniature design has a cut out size of just 30mm, while producing a respectable 500 lumen output. Ideal for display and cabinet light applications, these miniature LED downlights have a narrow beam angle and are supplied with an LED driver.
Details Specification:
| Product name | Mini Spotlight Focusing Downlight 3W 5w Cutout 30mm Slim Adjustable Dispaly Lighting |
|
Material
|
Aluminum alloy+High light flux lens
|
| Power | 5W,10W |
|
IP rating
|
IP20/44 |
|
Voltage
|
AC220-240V/AC85-265V 50/60Hz
|
| Finish color | Matt White |
| Baffle color | Bright white,Bright black, Bright silver |
| Lumen | >100 lumen/w |
| Lighting Colour | 2700k-5700k |
| Led Chip | CREE/Bridgluxe/Osram/Epistar options |
| Led Driver | Lifud/ Eaglcrise/Done/ Novbo options |
| Dimmable method | Non- dimmable, 0-10V dimmable, triac dimmable, DaLi dimmable available |
| Temperatures | -25 to 45° |
| Type | Recessed/ Embedded |
| Life time | 50000 hrs |
| Warranty | 3 years |
| PF | >0.9 |
| CRI | Ra>90 Bridgelux can reach Ra96 |
| Certificate | CE Rohs SAA LVD ETC UL FCC |
| Application | Bath room, Airport, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |

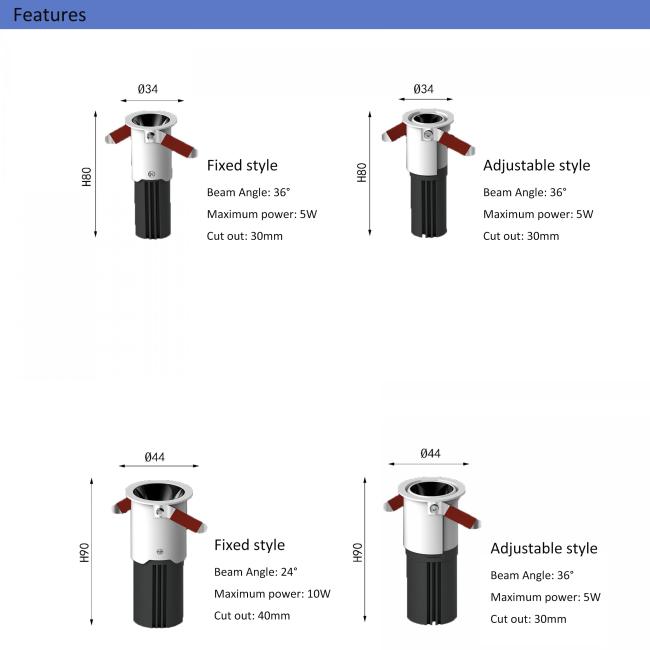

Model List:
|
Model No:
|
RNOC42-5W
|
RNOC42-10W |
|
Powergo:
|
5W
|
10W
|
|
Light source:
|
COB
|
COB
|
|
Beam angle:
|
36°
|
36°
|
|
Size:
|
Φ34*H80
|
Φ44*H90
|
|
Cut out:
|
Φ30
|
Φ40
|
|
Material:
|
Aluminum alloy | |
Features:
Miniature Downlights
Ideal for Display Lighting & Cabinets
Small, Discrete Hole Sizes
Tiny, Bright & Dimmable Available

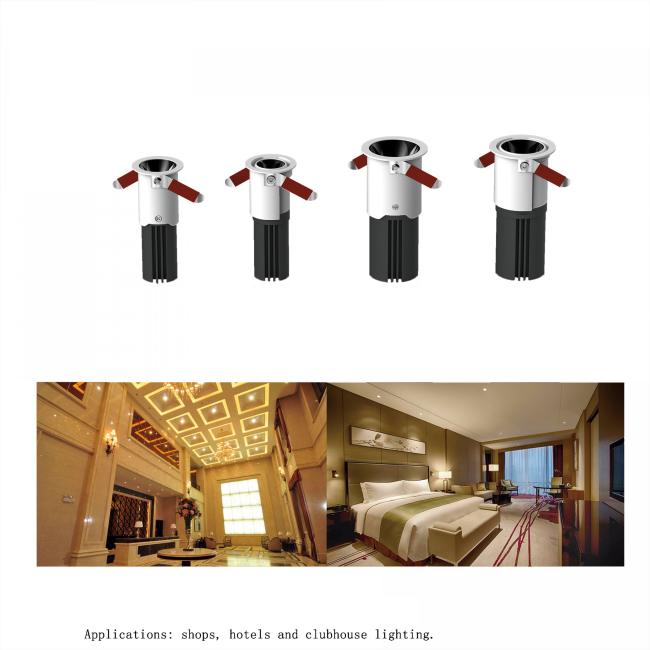

Applications:
Product display:
