Ip65 250w Led Flood Light 4000K Color Temperature Nondimmable
IP65 Led Tunnel Light Outdoor 100w 200w 250w Waterproof Aluminum Street Led Lights
Base Specification :
|
Product name
|
IP65 Led Tunnel Light Outdoor 100w 200w 250w Waterproof Aluminum Street Led Lights |
|
Color Temperature(CCT)
|
6000K (Daylight Alert)
|
|
Lamp Luminous Efficiency(lm/w)
|
130 -160 lumen/w |
|
Color Rendering Index(Ra)
|
90
|
|
Support Dimmer
|
No
|
|
Lighting solutions service
|
Lighting and circuitry design
|
|
Lifespan (hours)
|
50000
|
|
Working Time (hours)
|
50000
|
|
Input Voltage(V)
|
AC85-265V |
|
Beam Angle(°)
|
120
|
|
Working Lifetime(Hour)
|
50000
|
|
Lamp Body Material
|
Aluminum
|
| Housing color | Grey |
|
IP Rating
|
IP65
|
|
Certification
|
ce, EMC, LVD, RoHS
|
|
Place of Origin
|
China,Guangdong
|
|
Brand Name
|
Ruinuo |
|
Application
|
Tunnel,Highway, courtyard, road, outdoor, etc.Tunnel, roadway, Gas Station, Factory, Warehouse,Workshop,Square, Garden,Parking Lot, Supermarket,advertising.Gym Football Field lighting. |
|
Light Source
|
LED
|
|
Working Temperature(℃)
|
-20~40
|
|
Warranty(Year)
|
3-Year
|
|
LED Chip
|
SMD2835
|
|
Power Factor
|
>0.9
|
|
Color Temperature(CCT)
|
2700-6500K
|
|
High Pot Test
|
>1500V
|
|
Surge Protection
|
1500-6000V
|
|
Product Name
|
LED Tunnel Light
|
|
Package
|
Separat inner Brown Box+Standard carton for export
|
|
Power Range
|
50W 100w 150w 200w 250w Led Tunnel light
|
| Payment term | By T.T, PayPal,Western Union, L/C, etc |
Detail specification:
| Model | Power | Lumens | LED Chips | Dimension | Input Voltage | Beam Angle |
| RN-TL-50W-F | 50W | 7000LM |
3030 64PCS |
L315*W93*H130mm | AC100-277V 50-60Hz | 30°/60°/90°/60*150° |
| RN-TL-80W-F | 80W | 11200LM | 3030 128PCS | L315*W238*H130mm | AC100-277V 50-60Hz | 30°/60°/90°/60*150° |
| RN-TL-100W-F | 100W | 14000LM | 3030 128PCS | L315*W238*H130mm | AC100-277V 50-60Hz | 30°/60°/90°/60*150° |
| RN-TL-150W-F | 150W | 21000LM | 3030 192PCS | L315*W283*H130mm | AC100-277V 50-60Hz | 30°/60°/90°/60*150° |
| RN-TL-200W-F | 200W | 28000LM | 3030 256PCS | L315*W373*H130mm | AC100-277V 50-60Hz | 30°/60°/90°/60*150° |
| RN-TL-250W-F | 250W | 35000LM | 3030 320PCS | L315*W463*H130mm | AC100-277V 50-60Hz | 30°/60°/90°/60*150° |
| RN-TL-300W-F | 300W | 42000LM | 3030 384PCS | L599*W283*H130mm | AC100-277V 50-60Hz | 30°/60°/90°/60*150° |
| RN-TL-400W-F | 400W | 56000LM | 3030 512PCS | L599*W360*H130mm | AC100-277V 50-60Hz | 30°/60°/90°/60*150° |
| RN-TL-500W-F | 500W | 7000LM | 3030 640PCS | L599*W440*H130mm | AC100-277V 50-60Hz | 30°/60°/90°/60*150° |
Features:
1. Using imported LED chip, effectively improve the brightness of about 30%.
2. Meanwell LED Drivers,AC100V~277V,PF>0.98,THD>15%.
3. 30°/60°/90°/60°×150°beam angles and excellent uniformity.
4. 1070 pure aluminum stamping process,better heat dissipation, lighter weight,and effectively extend lifespan.
5. IP67 rating is applicable to outdoor environment.
6. Intelligent dimming system.0~10V,DMX and DALI dimming models are available.
7. Ultra-low luminous decay<10% in 5 years.L70>50,000hrs.
Benefit:
1. Adopting high efficiency Philips LumiLeds as light source,up to 130 lumen per watt
2. High performance heat sink make good dissp ation,perfect efficiently solve the problem of the led heat dissipation greatly extend the life of light source
3. Adopting famous brand constant Meanwell driver to ensure the stable and longevity of the whole led tunnel light
4. Heavy-duty 180 degree adjustable bracket
5. Matel outlet hole with silicone ring, waterproof and dustproof
Applications:
1. Factory floor, libraries, square, park;
2. Supermarkets, railway stations;
3. Convention and exhibition center, exhibition hall, warehouse;
4. Advertising lighting, etc.
5. Tunnel,Subway, Parking, etc.
Notice For User
Please turn off power before install or change assembly parts.
The input voltage and lamps should be matched, after connecting the power wire,please make sure the wiring section is okay
pls install the lamps by professional

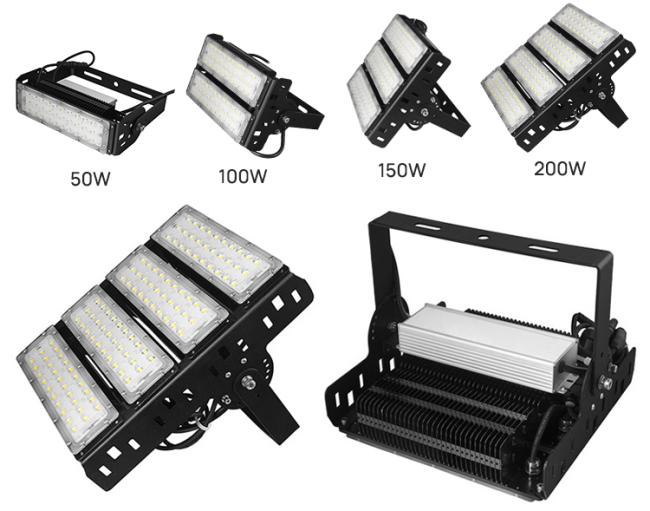

Product dispaly:
Pls contact us freely for lasted quotation.
