UCER Straight Side Plate Standard C60 08A 12A Chain

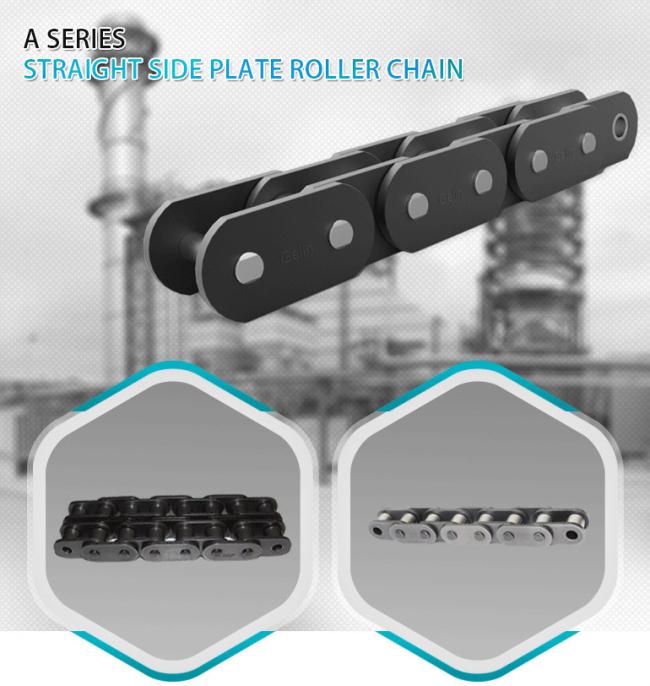

Simplex Short Pitch Straight Side Plate Roller Chains (A Series) Transmission Drive Chains
Quick Details
Applicable Industries:Garment Shops, Machinery Repair Shops, Restaurant, Food Shop, Energy & Mining
Standard or Nonstandard: Standard
Type: Roller Chain, straight side plate driving chain
Material: Iron
Tensile Strength: high tensile strength
Place of Origin: Zhejiang, China
Brand Name: UCER
roller chain name: simplex Short pitch straight side plate roller chains (A series)
OEM service: accept
Heat treatment: all the chain parts undergo heat treatment
Color: black & gray
Transmission chains pitch: 12.7-76.2 mm
Production maker: China manufacturer
Material: alloy steel
Size&capacity: pls reference to the form
Chain price: good price
Supply Ability: 10000 Meter/Meters per Month
Specifications

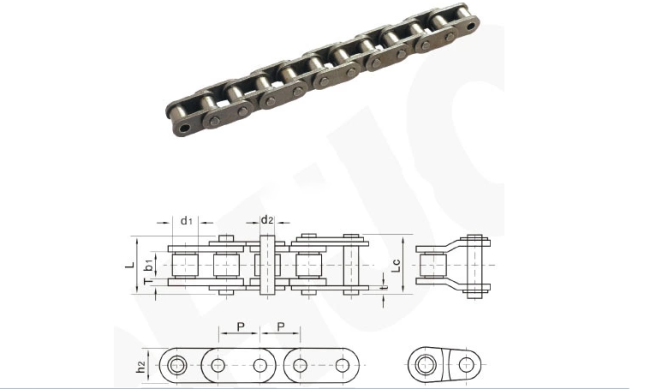

| ANSI Chain No. | ISO GB/T 1243 | Pitch | d1 max mm | b1 min mm | d2 max mm | t/T | h2 max mm | Pt mm | L max mm | Lc max mm | U.T.S KN | A.T.S KN | q ≈ kg/m | |
| mm | inch | |||||||||||||
| C35-1 | 06C | 9.525 | 3/8" | 5.08 | 4.77 | 3.58 | 1.3 | 8.7 | 10.13 | 12.3 | 13.3 | 7.8 | 9.36 | 0.35 |
| C35-2 | 22.4 | 23.4 | 15.6 | 18.72 | 0.69 | |||||||||
| C35-3 | 32.5 | 33.5 | 23.4 | 28.08 | 1.02 | |||||||||
| C40-1 | 08A | 12.7 | 1/2" | 7.92 | 7.85 | 3.97 | 1.5 | 12 | 14.38 | 16.4 | 17.9 | 13.8 | 16.56 | 0.66 |
| C40-2 | 30.8 | 32.3 | 27.6 | 33.12 | 1.3 | |||||||||
| C40-3 | 45 | 46.7 | 41.4 | 49.68 | 1.96 | |||||||||
| C50-1 | 10A | 15.875 | 5/8" | 10.16 | 9.4 | 5.05 | 2.03 | 15.05 | 18.11 | 20.5 | 21.9 | 21.8 | 26.16 | 1.1 |
| C50-2 | 38.2 | 40 | 43.6 | 52.32 | 2.14 | |||||||||
| C50-3 | 56.5 | 58.1 | 65.4 | 78.48 | 3.2 | |||||||||
| C60-1 | 12A | 19.05 | 3/4" | 11.91 | 12.57 | 5.94 | 2.42 | 18 | 22.78 | 25.48 | 26.7 | 31.1 | 37.32 | 1.53 |
| C60-2 | 48.4 | 49.5 | 62.3 | 74.76 | 3 | |||||||||
| C60-3 | 71.3 | 73.1 | 93.4 | 112.08 | 4.5 | |||||||||
| C80-1 | 16A | 25.4 | 1" | 15.88 | 15.75 | 7.94 | 3.23 | 23.5 | 29.29 | 32.7 | 34.1 | 55.6 | 66.72 | 2.63 |
| C80-2 | 61.8 | 63.2 | 111.2 | 133.44 | 5.24 | |||||||||
| C80-3 | 91.2 | 94.2 | 166.8 | 200.16 | 7.03 | |||||||||
| C100-1 | 20A | 31.75 | 1"1/4 | 19.05 | 18.9 | 9.53 | 4.8 | 30 | 35.76 | 40 | 43.1 | 86.7 | 104.04 | 4.03 |
| C100-2 | 75 | 78.9 | 173.5 | 208.2 | 8.02 | |||||||||
| C100-3 | 110 | 115.3 | 260.2 | 312.24 | 12 | |||||||||
| C120-1 | 24A | 38.1 | 1"1/2 | 22.23 | 25.22 | 11.1 | 4.8 | 36.2 | 45.44 | 50.5 | 54 | 124.6 | 149.52 | 5.94 |
| C120-2 | 95.94 | 99.4 | 249.1 | 298.92 | 11.84 | |||||||||
| C120-3 | 141.4 | 144.9 | 391.7 | 448.44 | 17.69 | |||||||||
| C140-1 | 28A | 44.45 | 1"3/4 | 25.4 | 25.22 | 12.7 | 5.6 | 42 | 48.87 | 53.5 | 57.8 | 169 | 202.8 | 7.5 |
| C140-2 | 102.5 | 106.7 | 338.1 | 405.72 | 14.89 | |||||||||
| C140-3 | 151.5 | 155.8 | 507.1 | 608.52 | 22.28 | |||||||||
| C160-1 | 32A | 50.8 | 2" | 28.58 | 31.55 | 14.27 | 6.5 | 48.26 | 58.55 | 64.67 | 70.67 | 222.4 | 266.88 | 10.2 |
| C160-2 | 124.02 | 130.02 | 444.8 | 533.76 | 20.25 | |||||||||
| C160-3 | 182.57 | 188.57 | 667.2 | 800.64 | 30.31 | |||||||||
Packing Delivery Shipping
Packaging details : a roller chain + a poly bag + carton + wooden case
Port: shanghai ,ningbo
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
