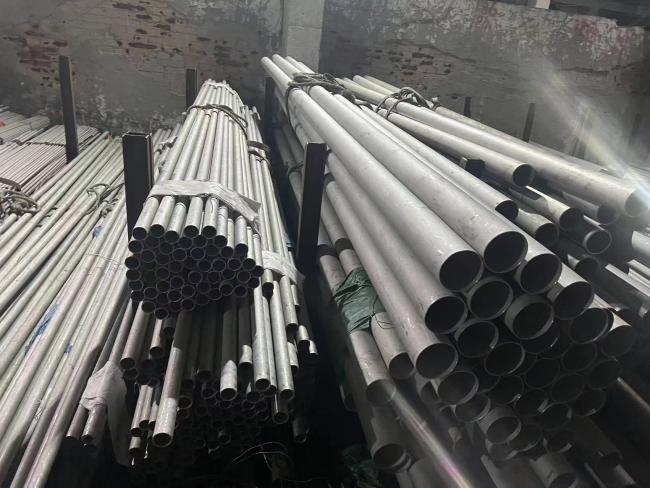

Welded Stainless Steel Seamless Pipe Tube 201 304 304L 316 316L 2205 2507 310S
Welded Stainless Steel Seamless Pipe Tube 201 304 304L 316 316L 2205 2507 310S
GENERAL PROPERTIES
As an alloy the benefits of using super duplex 2507 are abundant. Right from its corrosion resistance properties to its strength, businesses across the world appreciate these properties of 2507 Super Duplex Seamless Pipe and Tube. With a dual microstructure phase, the weldability properties of this alloy are classified as good, which is why it is possible to achieve a relatively strong and durable Super Duplex Welded Tube. However, one simply cannot deny the fact that, despite being a costlier alternative, the load or pressure bearing ability of a 2507 Super Duplex Seamless Pipe is almost 20% higher in comparison to its welded counterpart.
Specification
| Specifications | Aatm a789 and Asme Sa 89 |
|---|---|
| Standards | AISI, DIN, EN, GB, ASTM, JIS, ASME, |
| Outer Diameter in MM | 6 To 250 size upto 12 inch |
| Sizes in MM | 5.0 To 1219.2 |
| Thickness in MM | 0.3 To 50 |
| Wall Thickness in Inch | 0.020 To 0.220 |
| Schedule | 5, 10, 40, 80, 80S, 160, XXS, XS super duplex pipe suppliers and Manufacturer |
| Finish | Mirror finish, NO.1, NO.4, MF, Annealed & Pickled, Polished, 8K, BA, HL, 2B, Bright & Annealed |
| Form | U Shape, Hydraulic, Rectangular, Hollow, Square, Straigh, Pan Cake, Coiled, Round |
| Length | Standard, Double, Single & Cut length |
| End | Treaded, Beveled, Plain End |
| Type | CDW, CEW, Fabricated, ERW, EFW, DOM, Welded |
| Marking | All Super Duplex Pipes are marked as follows: Supplier / Manufacturer’s Name, Grade, Standard, OD, Thickness, Length, Heat No |
Super Duplex Welded Pipe Tolerance
| Outer Diameter | Wall Thickness | length |
|---|---|---|
|
<1-1/2 inch (38.1MM) ±0.005 inch (0.13MM)
1-1/2 inch (38.1MM) to 3 inch (76.2MM) ±0.010 inch (0.25MM)
3-1/2 inch (88.9MM) to 4 Inch (101.6MM) ±0.015 inch (0.38MM)
|
±10% |
Randoms upto +2 inch (50.8MM) Cuts +1/8" (3MM) -0inch Coils to 80,000 ft (24,384M) |
| ±0.005 inch (0.127MM) | ±10 % | Coils to 80,000 ft (24,384M) |
Super Duplex Seamless Tube Chemical Composition Chart
| Grades | 2507 Super Duplex pipe |
|---|---|
| (C) Carbon | 0.030 |
| (Mn) Manganese | 1.20 |
| (P) Phosphorous | 0.035 |
| (S) Sulphur | 0.020 |
| (Si) Silicon | 0.80 |
| (Cr) Chromium | 24.0 To 26.0 |
| (Ni) Nickel | 6.0 To 8.0 |
| (Mo) Molybdenum | 3.0 To 5.0 |
| (N) Nitrogen | 0.24 To 0.32 |
| (Fe)Iron | Bal. |
| (Cu) Copper | 0.50 |
Mechanical Characteristics of Super Duplex 2507 Pipe
| tensile strength (TS) | High yield strength | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Super Duplex | speciifcation | Uns No | Pound-force per square inch | megapascals | kilo-pound per square inch | Pounds per square inch | megapascals | kilo-pound per square inch | Elongation | Grain Size Required | Maximum Hardness | thermal Cond. | Mean Coeff. of thermal expansion | Elasticity |
| 2507 | A789, A790 | S32950 | 100,000 | 690 | 100 | 70,000 | 485 | 70 | 20 | — | 30.5 Rc | — | — | — |
| 2507 | A789, A790 | UNS S32750 | 116,000 | 800 | 116 | 80,000 | 550 | 80 | 15 | — | 32 Rc | 98 | 7.2 | 27.5 |
Super Duplex Stainless Steel Tube Equivalent Material
| Duplex | Grade | UNS | Werkstoff No | Spec | AFNOR |
|---|---|---|---|---|---|
| 2507 | S32750 | F53 | 1.4410 | A/SA789, A/SA790 | Z3 CN 25.06 Az |
