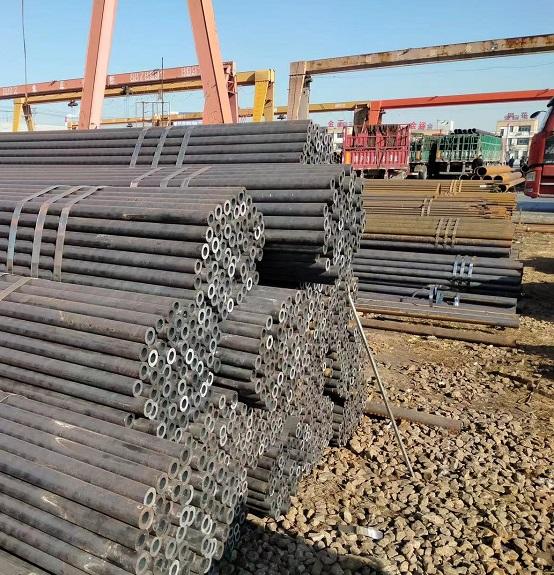

ASTM A106 Seamless Carbon Steel Pipe Black Painting Pressure Tube 1250mm Width
ASTM A106 Seamless Carbon Steel Pipe Black Painting Pressure Tube 1250mm Width
ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, and ships where the piping must transport fluids and gases that exhibit higher temperatures and pressure levels.
Process
Killed steel, with primary melting process being open-hearth, basic-oxygen, or electric-furnace, possibly combined with separate degassing or refining.
Steel cast in ingots or strand cast is permissible.
Hot-finished pipe need not be heat treated.
Cold-drawn pipe shall be heat treated after the final cold draw pass.
Chemical Composition
| Grade A | Grade B | Grade C | |
| Carbon max. % | 0.25 | 0.30* | 0.35* |
| *Manganese % | 0.27 to 0.93 | *0.29 to 1.06 | *0.29 to 1.06 |
| Phosphorous, max. % | 0.035 | 0.035 | 0.035 |
| Sulfur, max. % | 0.035 | 0.035 | 0.035 |
| Silicon, min.% | 0.10 | 0.10 | 0.10 |
| Chrome, max. % | 0.40 | 0.40 | 0.40 |
| Copper, max. % | 0.40 | 0.40 | 0.40 |
| Molybdenum, max. % | 0.15 | 0.15 | 0.15 |
| Nickel, max. % | 0.40 | 0.40 | 0.40 |
| Vanadium, max.% | 0.08 | 0.08 | 0.08 |
Tensile Requirements
| Seamless | |||
| Grade A | Grade B | Grade C | |
| Tensile Strength, min., psi | 48,000 | 60,000 | 70,000 |
| Yield Strength, min., psi | 30,000 | 35,000 | 40,000 |
Mechanical Tests Specified
Tensile Test — NPS 8 and larger — either transverse or longitudinal acceptable Smaller than NPS 8 — weighed in lots. Larger sizes — by length. Flattening Test — NPS 2-1/2 and larger. Bending Test (Cold) — NPS 2 and under.
| Degree of Bend | Diameter of Mandrel | ||
| For Normal A106 Uses | 90 | 12 x nom dia. of pipe | |
| For Close Coiling | 180 | 8 x nom dia. of pipe |
Referenced Documents
- ASTM A 530/A 530M Specification for General Requirements for Specialized Carbon and Alloy Steel Pipe
- ASTM E 213 Practice for Ultrasonic Examination of Metal Pipe and Tubing
- ASTM E 309 Practice for Eddy-Current Examination of Steel Tubular Products Using Magnetic Saturation
- ASTM E 381 Method of Macroetch testing Steel Bars, Billets, Blooms, and Forgings
- ASTM E 570 Practice for Flux Leakage Examination of Ferromagnetic Steel Tubular Products
- ASME B36.10M Welded and Seamless Wrought Steel Pipe
Payment Terms
1.Payment: T/T, L/C, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2.MOQ: 1pcs
3.Warranty : 3 years
4.Package Informations: 1) EXPORT, In 20 feet (GW 25 ton) or 40 feet Container (GW 25 ton)
2)as customer's requirement
Why choose us?
(1) The leading exporter in China special steel industry.
(2) Large stocks for various sizes, fast delivery date.
(3) Good business relationship with China famous factories.
(4) More than 7 years steel exporting experience.
(5) Good after-sales service guarantee.
