PE Coated Seamless Carbon Steel Boiler Tube Pipe 100mm Thickness
PE Coated Seamless Carbon Steel Boiler Tube Pipe 100mm Thickness
ASTM A192 Carbon Steel Tube specification covers Seamless Carbon Steel Boiler Tubes for High-Pressure Service. Recommended pipe size will be developed by us upon receipt of your inquiry. A print or sketch of the part to be produced should be included. Grade, chemical analysis and surface condition are carefully considered, and production processes are tailored to achieve the best tubing for the end use.
ASTM 192 Seamless Steel Tube Chemical Composition:
| ASTM A192 Carbon Steel Chemical Composition | C | Mn | P≤ | S≤ | Si≤ |
|---|---|---|---|---|---|
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
ASTM 192 Seamless Steel Tube Mechanical Property:
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Brinell Hardness Number (WT≥)0.200In(5.1mm) |
Rockwell Hardness Number (WT)0.200In(5.1mm) |
|---|---|---|---|---|
| ≥180 | ≥325 | ≥35 | 137HRB | 77HRB |
ASTM 192 Seamless Steel Tube Outside diameter & tolerance:
| Hot rolled | Outside Diameter, mm | Tolerance, mm |
|---|---|---|
| OD≤101.6 | +0.4/-0.8 | |
| 101.6＜OD≤177.8 | +0.4/-1.2 | |
| Cold Drawn | Outside Diameter, mm | Tolerance, mm |
| OD＜25.4 | ±0.10 | |
| 25.4≤OD≤38.1 | ±0.15 | |
| 38.1＜OD＜50.8 | ±0.20 | |
| 50.8≤OD＜63.5 | ±0.25 | |
| 63.5≤OD＜76.2 | ±0.30 | |
| 76.2≤OD≤101.6 | ±0.38 | |
| 101.6＜OD≤177.8 | +0.38/-0.64 |
ASTM 192 Seamless Steel Tube Wall thickness & tolerance:
| Hot rolled |
Outside Diameter, mm | Tolerance, % |
|---|---|---|
| OD≤101.6, WT≤2.4 | +40/-0 | |
| OD≤101.6, 2.4＜WT≤3.8 | +35/-0 | |
| OD≤101.6, 3.8＜WT≤4.6 | +33/-0 | |
| OD≤101.6, WT>4.6 | +28/-0 | |
| OD>101.6, 2.4＜WT≤3.8 | +35/-0 | |
| OD>101.6, 3.8＜WT≤4.6 | +33/-0 | |
| OD>101.6, WT>4.6 | +28/-0 | |
| Cold Drawn | Outside Diameter, mm | Tolerance, % |
| OD≤38.1 | +20/-0 | |
| OD>38.1 | +22/-0 |
Payment Terms
1.Payment: T/T, L/C, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2.MOQ: 1pcs
3.Warranty : 3 years

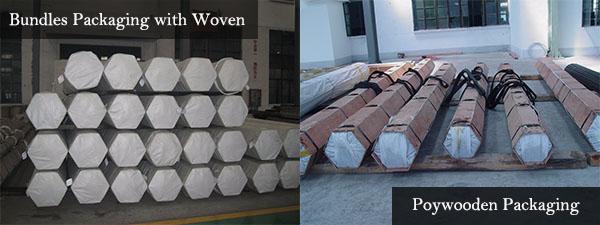

4.Package Informations: 1) EXPORT, In 20 feet (GW 25 ton) or 40 feet Container (GW 25 ton)
2)as customer's requirement
Why choose us?
(1) The leading exporter in China special steel industry.
(2) Large stocks for various sizes, fast delivery date.
(3) Good business relationship with China famous factories.
(4) More than 7 years steel exporting experience.
(5) Good after-sales service guarantee.
