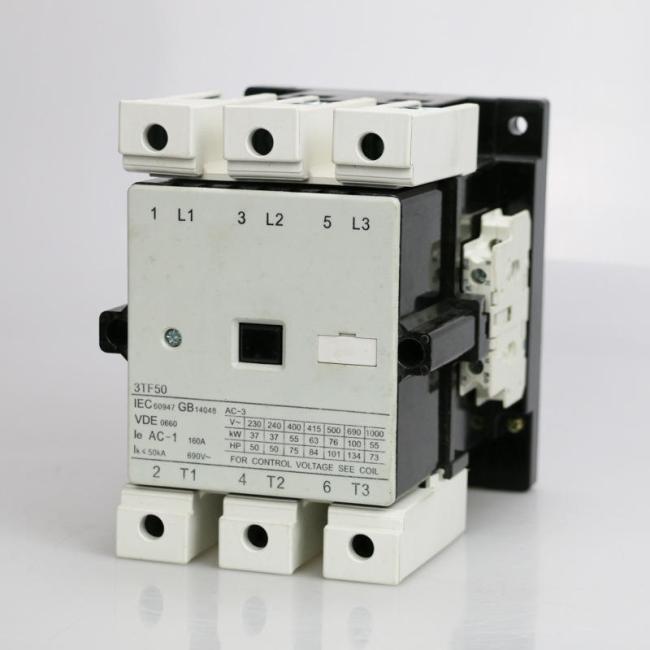

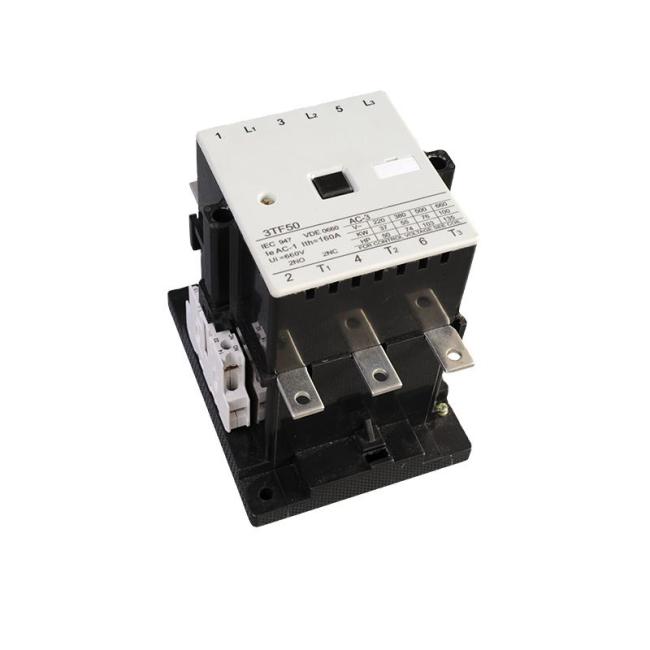

CJX1 Series AC Electrical Magnetic Contactor 160A 24V 48V 110V 220V 380V
CJX1 Series 160A 24V 48V 110V 220V 380V AC Electrical Magnetic Contactor
Application:
3TF series AC contactor are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC 60947, BS 5424 & VDE 0660.
The auxiliary contacts are arranged 2NO+2NC at most. It is employed the flexible locking connection between the contact support and core.
All series products can be mounted by screw, le≤32A contactor also by installation rail.
Main parameters and Technical Performance:
| Type | SFC46 | SFC47 | SFC48 | SFC49 | SFC50 | SFC51 | ||
| Rated heating current (A) | 80 | 90 | 100 | 100 | 160 | 160 | ||
| Rated insulation voltage (V) | 690 | |||||||
| Rated impact withstand voltage (KV) | 6 | |||||||
| Rated making capacity | 10le | |||||||
| Rated breaking capacity | 8le | |||||||
| Poles | 3 | |||||||
| Auxiliary contact | 2NO+2NC | 2NO+2NC | 2NO+2NC | 2NO+2NC | 2NO+2NC | 2NO+2NC | ||
| Short-time withstand current(A) | 10S | 360 | 504 | 600 | 680 | 880 | 1120 | |
Rated working current(A) |
380V | AC-3 | 45 | 63 | 75 | 85 | 110 | 140 |
| AC-4 | 24 | 28 | 34 | 42 | 54 | 68 | ||
| Controllable motor power (KW) 50Hz |
AC-3 | 220V | 15 | 18.5 | 22 | 26 | 37 | 43 |
| 380V | 22 | 30 | 37 | 45 | 55 | 75 | ||
| 500V | 30 | 41 | 50 | 59 | 76 | 98 | ||
| 660V | 39 | 55 | 67 | 67 | 100 | 100 | ||
| AC-4 | 380V | 12 | 14 | 17 | 21 | 27 | 35 | |
| 660V | 20.8 | 24.3 | 29.5 | 36 | 46.9 | 60 | ||
| Operation frequency (times/h) | AC-3 | 600 | 600 | 600 | 600 | 600 | 600 | |
| AC-4 | 300 | 300 | 300 | 300 | 300 | 300 | ||
| Electrical life (10000/times) | AC-3 | 60 | 60 | 60 | 60 | 60 | 60 | |
| AC-4 | 15 | 15 | 10 | 10 | 10 | 10 | ||
| Mechanical life (10000/times) | 800 | 800 | 600 | 600 | 600 | 600 | ||
| Attracting Coil working voltage tolerance (AC) | (85%～110%)Us +40℃ | |||||||
| Attracting Coil power consumption | Keeping (VA) | 17 | 17 | 32 | 32 | 39 | 39 | |
| Pick-up(VA) | 183 | 183 | 330 | 330 | 550 | 550 | ||
| Auxiliary contact conventional thermal current(A) | 10 | 10 | 10 | 10 | 10 | 10 | ||
| Auxiliary contact rated insulation voltage (V) | 690 | 690 | 690 | 690 | 690 | 690 | ||
| Auxiliary contact rated working current (A) | AC-15 | 380V | 4 | 4 | 4 | 4 | 4 | 4 |
| 220V | 6 | 6 | 6 | 6 | 6 | 6 | ||
| DC-13 | 110V | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | |
| 220V | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | ||
Structure characteristic:
♦ Safety design against electric shock, more safe and reliable
♦ The feature of small volume, light weight, arcing chamber is enclosed, small electric arcing distance
♦ The arc-extinguishing construction is novel, abrasion of the contacts is small, with a long electric life
♦ The operation of the magnet that many advantages such as good reliability, resistant impact, tiredness and so on significant advantages
♦ The contact has two pair of normal open and close auxiliary contact, in addition, it can be mounted more auxiliary contacts
♦ Except tighten with screws, contactor can be tightened with standard installing rail of 35mm long
Appearance and Installation Dimension:
Installation dimension:
| Type | A max | B max | C max | a | b | ∅ |
|
SFC46 |
92 | 120 | 125 | 70 | 100 | 5.0 |
| SFC47 | 92 | 120 | 125 | 70 | 100 | 5.0 |
| SFC48 | 105 | 135 | 145 | 80 | 110 | 5.5 |
| SFC49 | 105 | 135 | 145 | 80 | 110 | 5.5 |
| SFC50 | 125 | 158 | 155 | 100 | 130 | 6.5 |
| SFC51 | 125 | 158 | 155 | 100 | 130 | 6.5 |
