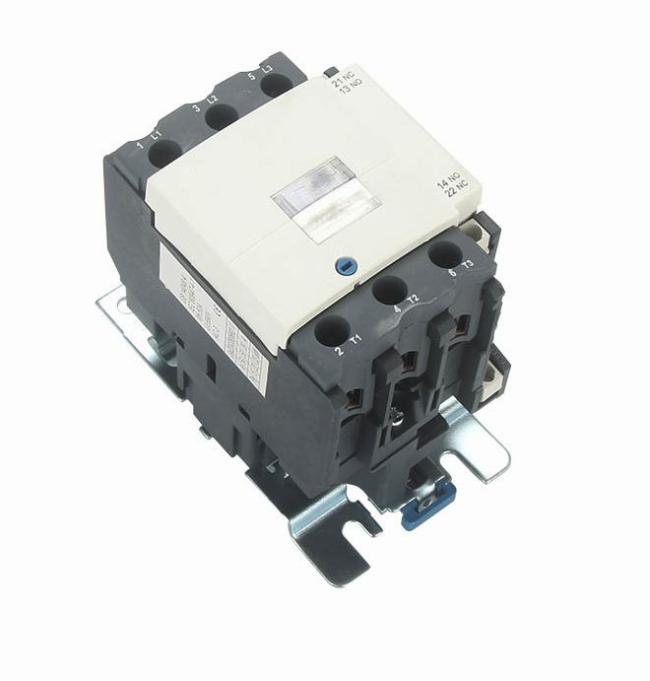

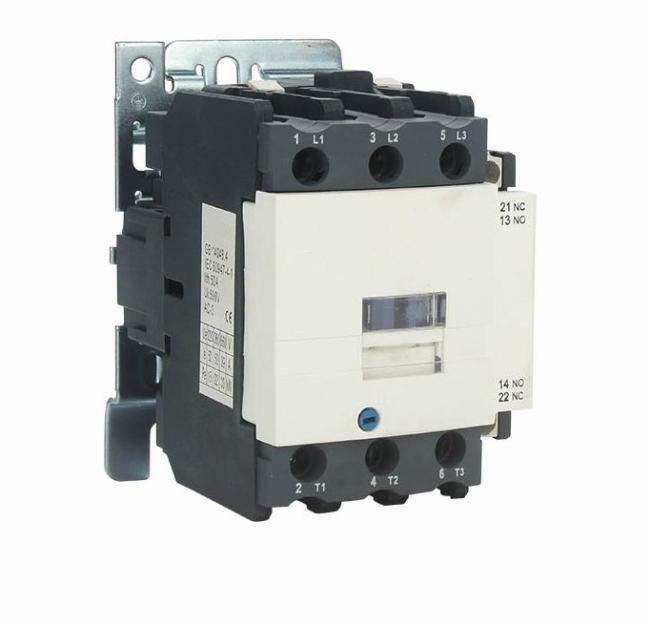

690VAC 3 Pole AC Contactor for Screw or DIN Rail Installation 50/60Hz Power Frequency
Product Description:
Rated for an operational voltage of 220VAC, this contactor is capable of handling a wide range of electrical loads. It is available in multiple current ratings, including 20A, 32A, 40A, 50A, 60A, 80A, and 125A, making it suitable for a variety of applications.
The 3 Pole AC Contactor features three poles, including one normally open (NO) and one normally closed (NC) contact, providing both ON and OFF control for the connected circuit. This allows for greater flexibility and versatility in controlling the flow of electricity.
In addition, the contactor has a rated insulation voltage of 690VAC, ensuring safe and reliable operation even in high voltage environments. It also has an insulation voltage of 690VAC, providing an extra layer of protection against electrical hazards.
Technical Parameters:
| Product Name | 3 Pole AC Contactor (LC1D series) |
|---|---|
| Number of Auxiliary Contacts | 3 |
| Rated Current | 20A, 32A, 40A, 50A, 60A, 80A, 125A |
| Rated Insulation Voltage | 690VAC |
| Power Frequency | 50/60Hz |
| Number of Poles | 3 |
| Installation Method | Rail or Screw |
| Rated Voltage | 220VAC |
| Insulation Voltage | 690VAC |
| Rated Operational Voltage | 220VAC |
| Protection Level | IP20 |
Applications:
The 3 Pole AC Contactor is used in a wide range of applications, such as:
- Industrial control systems
- Power distribution systems
- Motor control circuits
- Lighting control systems
- Heating and ventilation systems
- And many more
