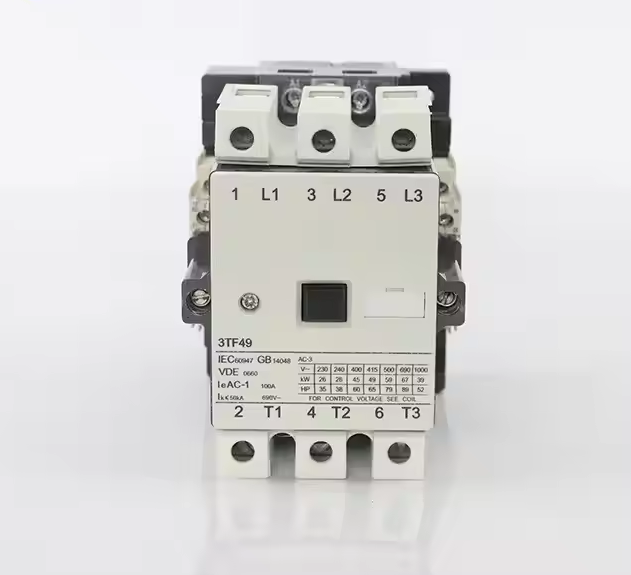

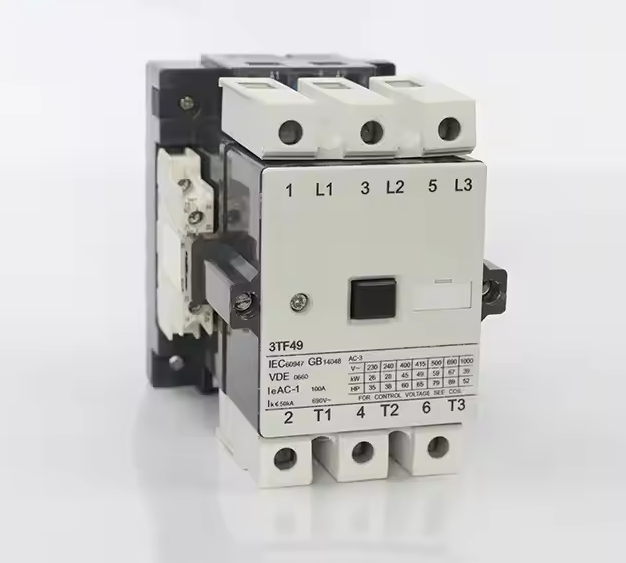

3TB 3TF 3TF49 Series 2NO 2NC Auxiliary Contact Ac Magnetic Contactor 100A
Product Description:
3TF series AC contactor is used for making and breaking, and for frequent starting and controlling the motor.
The product conforms to IEC60947-4-1 stardand.
The auxiliary contacts are arranged 2NO+2NC at most, it is employed the flexible locking connection between the contact support and core.
Main parameters and Technical Performance:
| Type | STF46 | STF47 | STF48 | STF49 | STF50 | STF51 | ||
| Rated heating current (A) | 80 | 90 | 100 | 100 | 160 | 160 | ||
| Rated insulation voltage (V) | 690 | |||||||
| Rated impact withstand voltage (KV) | 6 | |||||||
| Rated making capacity | 10le | |||||||
| Rated breaking capacity | 8le | |||||||
| Poles | 3 | |||||||
| Auxiliary contact | 2NO+2NC | 2NO+2NC | 2NO+2NC | 2NO+2NC | 2NO+2NC | 2NO+2NC | ||
| Short-time withstand current(A) | 10S | 360 | 504 | 600 | 680 | 880 | 1120 | |
Rated working current(A) |
380V | AC-3 | 45 | 63 | 75 | 85 | 110 | 140 |
| AC-4 | 24 | 28 | 34 | 42 | 54 | 68 | ||
| Controllable motor power (KW) 50Hz |
AC-3 | 220V | 15 | 18.5 | 22 | 26 | 37 | 43 |
| 380V | 22 | 30 | 37 | 45 | 55 | 75 | ||
| 500V | 30 | 41 | 50 | 59 | 76 | 98 | ||
| 660V | 39 | 55 | 67 | 67 | 100 | 100 | ||
| AC-4 | 380V | 12 | 14 | 17 | 21 | 27 | 35 | |
| 660V | 20.8 | 24.3 | 29.5 | 36 | 46.9 | 60 | ||
| Operation frequency (times/h) | AC-3 | 600 | 600 | 600 | 600 | 600 | 600 | |
| AC-4 | 300 | 300 | 300 | 300 | 300 | 300 | ||
| Electrical life (10000/times) | AC-3 | 60 | 60 | 60 | 60 | 60 | 60 | |
| AC-4 | 15 | 15 | 10 | 10 | 10 | 10 | ||
| Mechanical life (10000/times) | 800 | 800 | 600 | 600 | 600 | 600 | ||
| Attracting Coil working voltage tolerance (AC) | (85%～110%)Us +40℃ | |||||||
| Attracting Coil power consumption | Keeping (VA) | 17 | 17 | 32 | 32 | 39 | 39 | |
| Pick-up(VA) | 183 | 183 | 330 | 330 | 550 | 550 | ||
| Auxiliary contact conventional thermal current(A) | 10 | 10 | 10 | 10 | 10 | 10 | ||
| Auxiliary contact rated insulation voltage (V) | 690 | 690 | 690 | 690 | 690 | 690 | ||
| Auxiliary contact rated working current (A) | AC-15 | 380V | 4 | 4 | 4 | 4 | 4 | 4 |
| 220V | 6 | 6 | 6 | 6 | 6 | 6 | ||
| DC-13 | 110V | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | |
| 220V | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | ||
